Removal Of Liquid Gasket

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not damage the mating surfaces.

After removing the bolts and nuts, separate the mating surface and remove the old liquid gasket using Tool.

Courtesy of NISSAN NORTH AMERICA, INC.

Tool number : KV10111100 (J-37228)

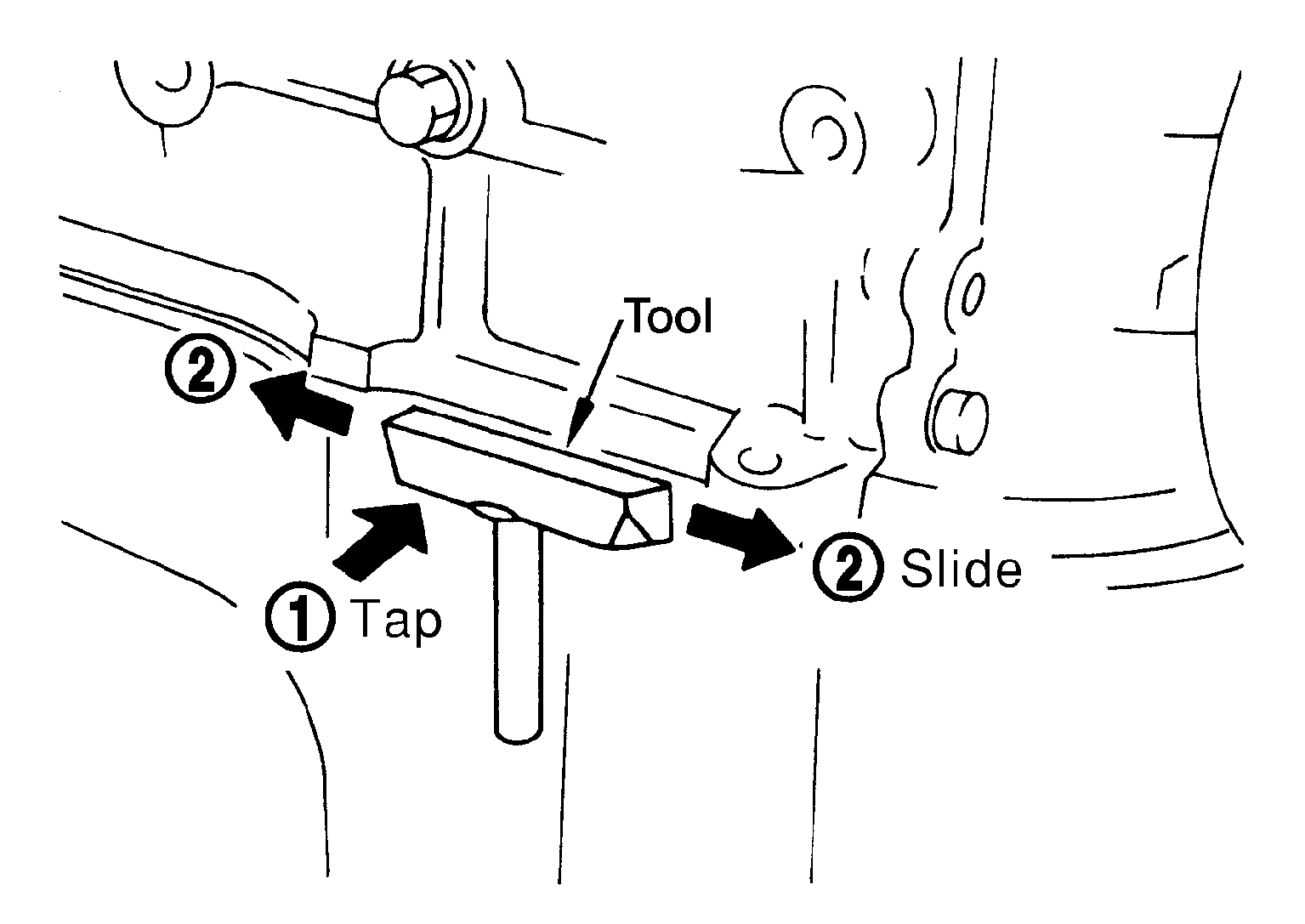

In areas where the Tool is difficult to use, use a plastic hammer to lightly tap (1) the Tool where the liquid gasket is applied. Use a plastic hammer to slide (2) the Tool by tapping on the side.
