Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Using suitable tool (A), remove old liquid gasket from liquid gasket application surface and the mating surface.

Courtesy of NISSAN NORTH AMERICA, INC.
- Remove liquid gasket completely from the groove of the liquid gasket application surface, bolts, and bolt holes.
Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating use) to remove moisture, grease and foreign materials.
Attach the liquid gasket tube to the suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

Apply the liquid gasket without gaps to the specified location with the specified dimensions.

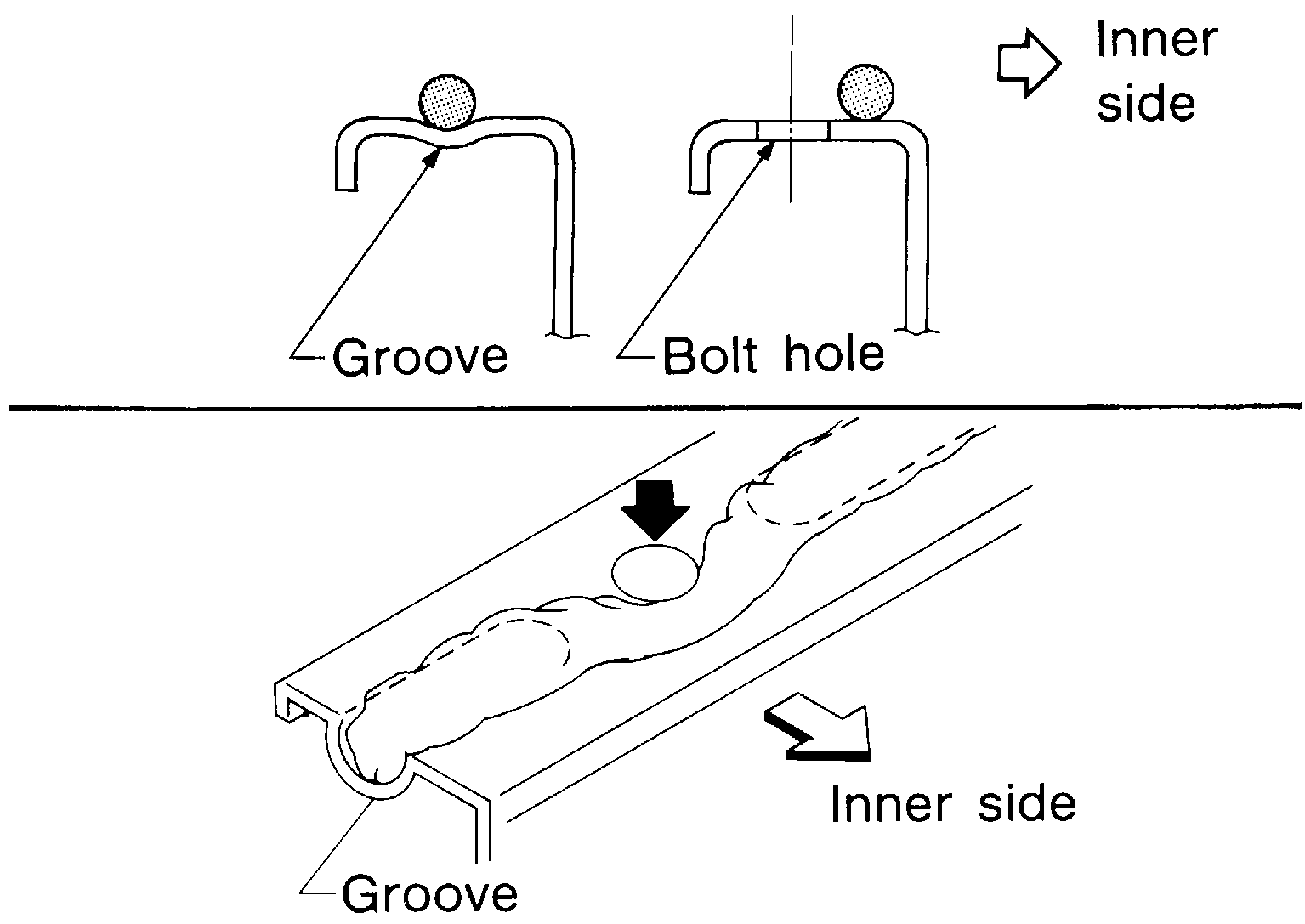

If there is a groove for the liquid gasket application, apply the liquid gasket to the groove.

Courtesy of NISSAN NORTH AMERICA, INC.

Normally apply the liquid gasket on the inside edge of the bolt holes. Also apply to the outside edge of the bolt holes when specified in the procedure.
Within five minutes of liquid gasket application, install the mating component.
If the liquid gasket protrudes, wipe it off immediately.
Do not retighten bolts after the installation.
Wait 30 minutes or more after installation before refilling the engine with engine oil or engine coolant.

CAUTION:

If there are more specific instructions in the procedures contained in this information concerning liquid gasket application, observe them.
