Removal And Installation Of Drive Belt Auto-TENSIONER: Notes

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

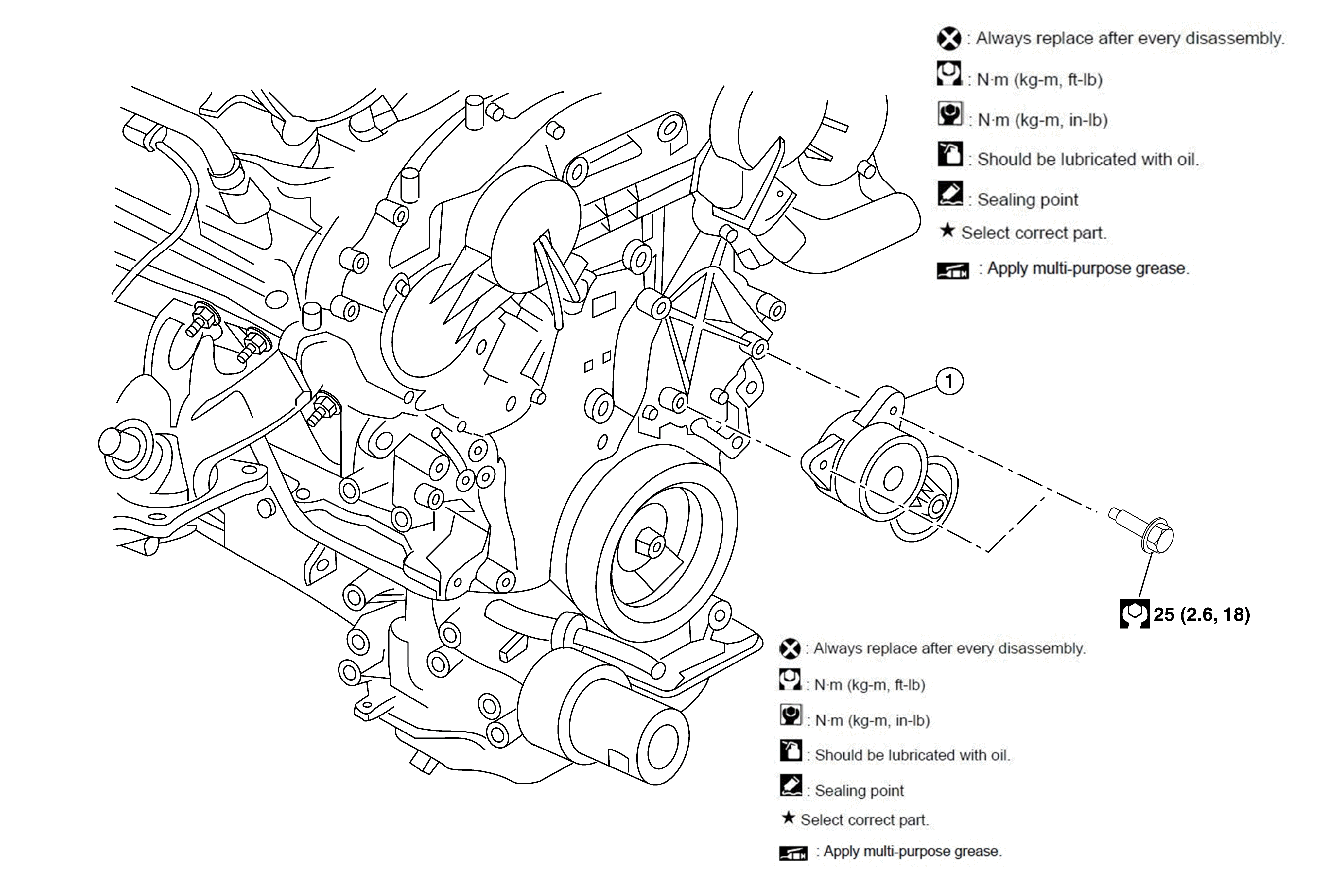

Fig 1: Drive Belt Auto-Tensioner With Torque Specifications
G09404031Courtesy of NISSAN NORTH AMERICA, INC.
1. Drive belt auto-tensioner
