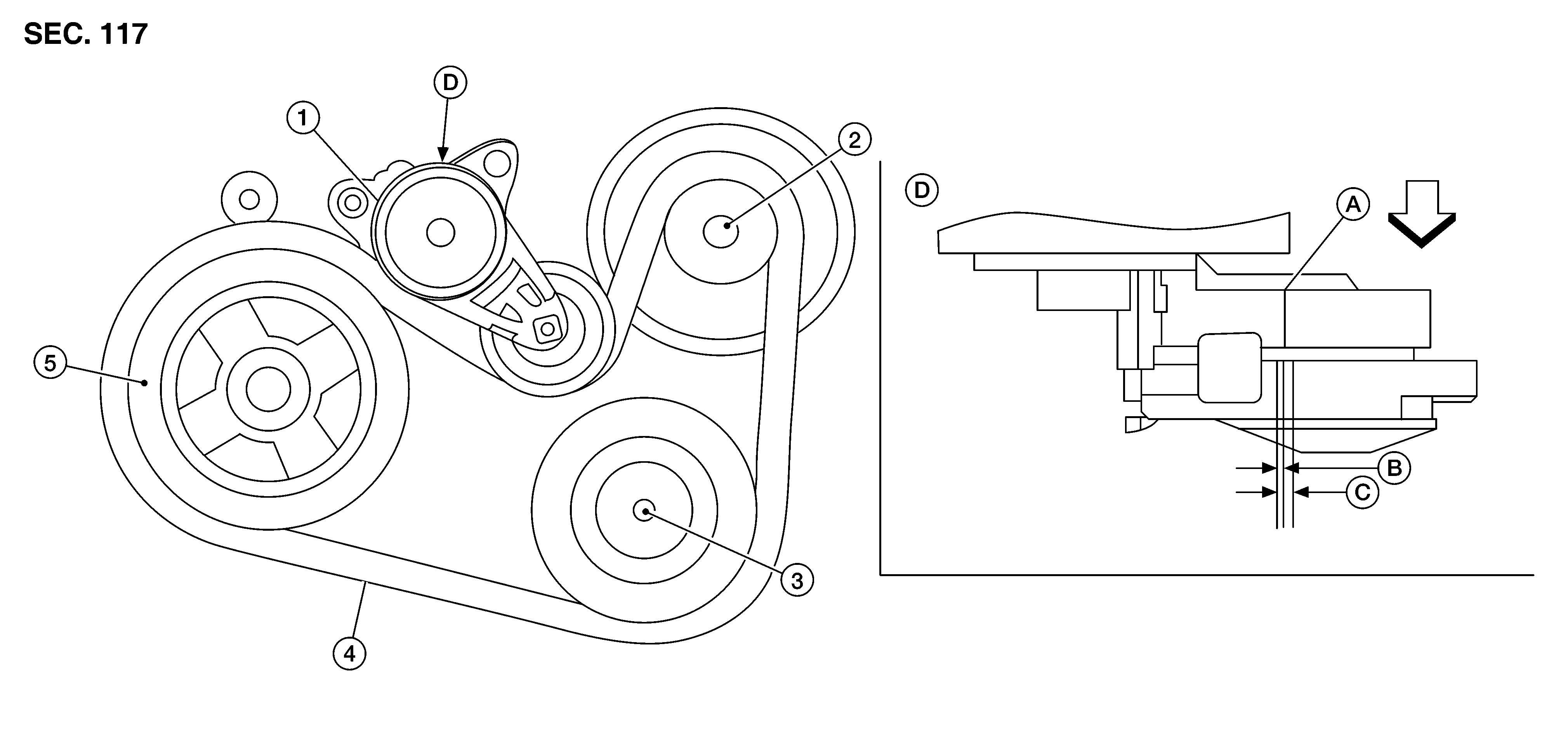

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Drive belt auto-tensioner |
2. |
Generator |
3. |
A/C compressor |
| 4. |
Drive belt |
5. |
Crankshaft pulley |
A. |
Indicator |
| B. |
Range when new drive belt is installed |
C. |
Possible use range |
D. |
View D |
 |
Engine front |
|
|
|
|
