Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

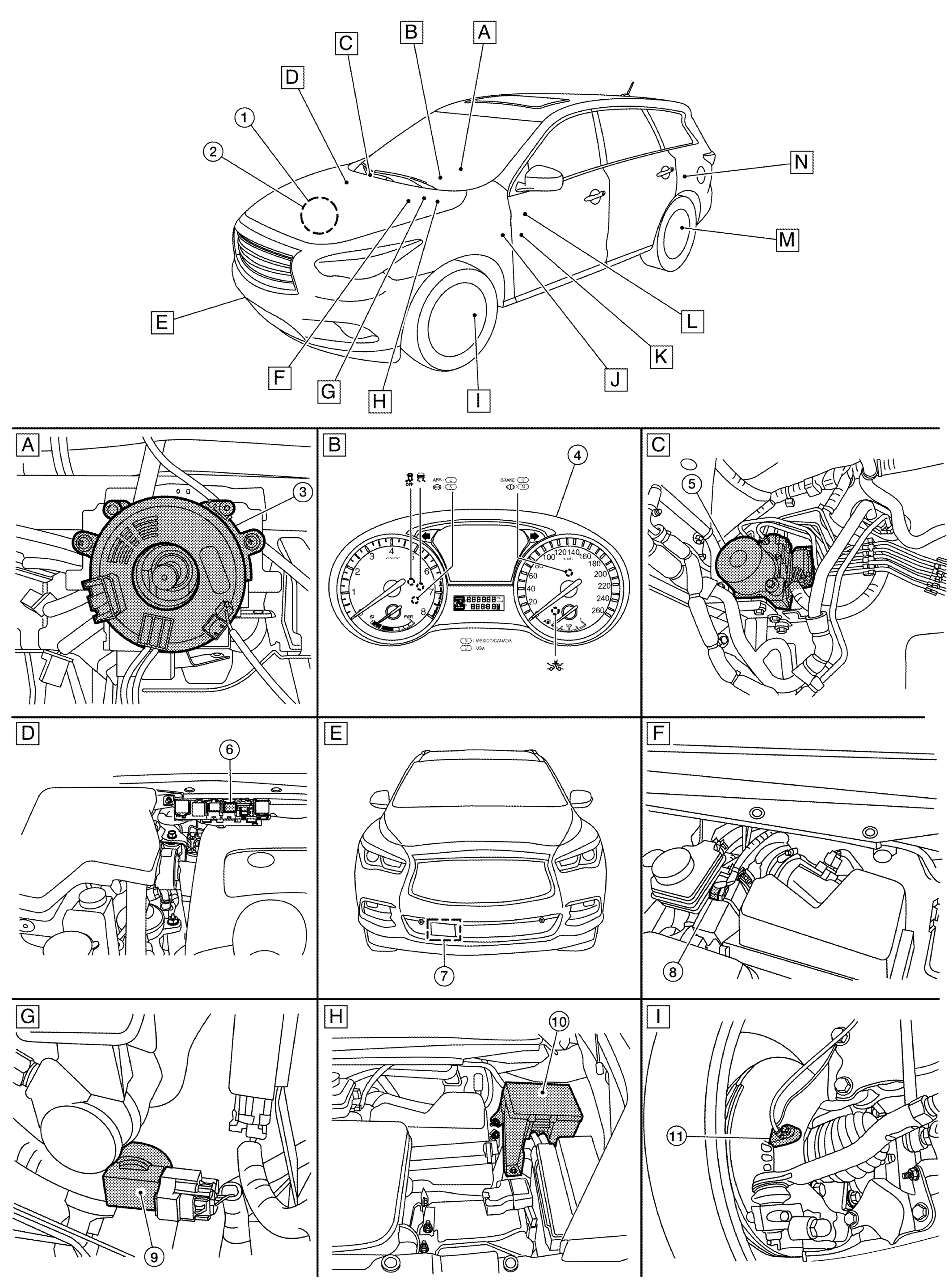

| A. | Steering column area (view with steering wheel removed) | B. | Instrument panel (LH side) | C. | Engine compartment (RH rear) |
| D. | Engine compartment (RH rear) | E. | Front bumper (RH) | F. | Engine compartment (LH rear) |
| G. | Engine compartment (LH rear) | H. | Engine compartment (LH rear) | I. | Left front wheel area (RH similar) |

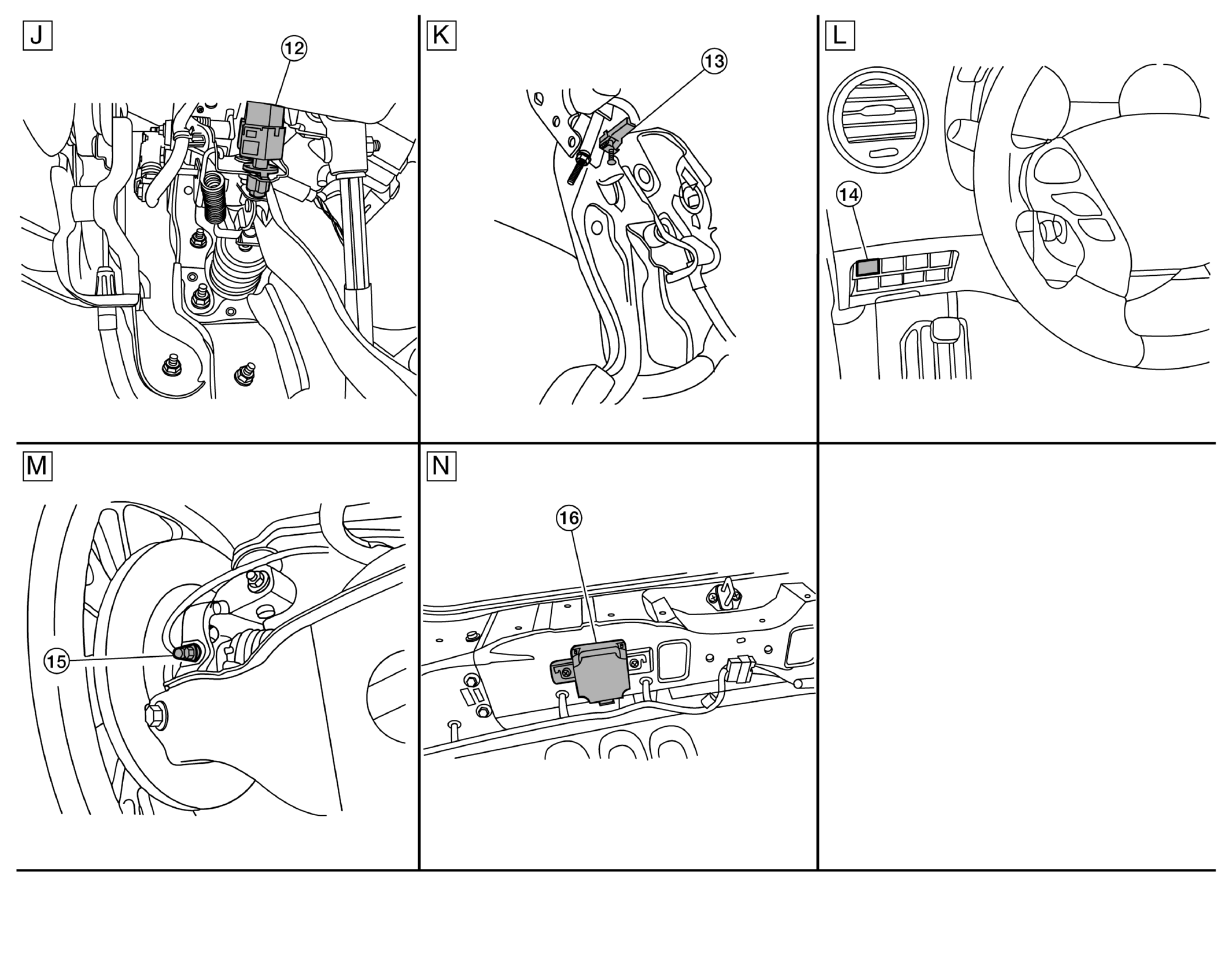

| J. | Brake pedal area | K. | LH drivers kick panel area | L. | Instrument panel (LH side) |
| M. | Left rear wheel area (RH similar) | N. | Center of back door kicking plate area (view with storage box removed) |
