Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake caliper from the vehicle. Refer to REMOVAL AND INSTALLATION .
  2. Remove sliding pin boots from torque member.
  3. Remove sliding pin bolt bushing from sliding pin bolt.
  4. Place a wooden block in the cylinder body and blow air from union bolt hole to remove piston and piston boot.
    G04076658Courtesy of NISSAN NORTH AMERICA, INC.
    WARNING:

    Do not get fingers caught between pistons and brake caliper body.

    CAUTION:

    Do not reuse piston boot.

  5. Remove piston seal from brake caliper body using suitable tool.

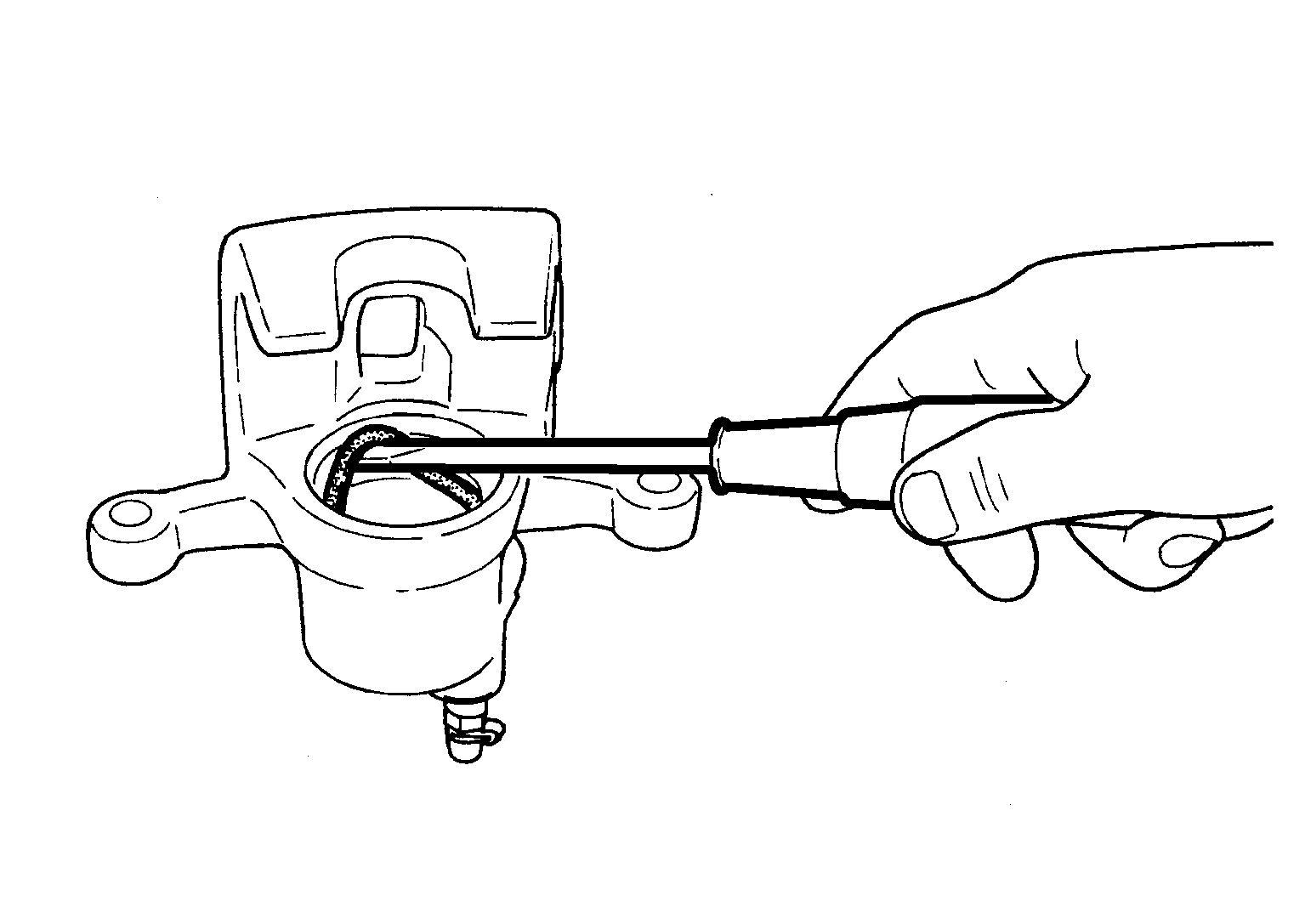

    G05207992Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not damage cylinder inner wall.
    • Do not reuse piston seal.
  6. Remove bleeder valve and cap.
