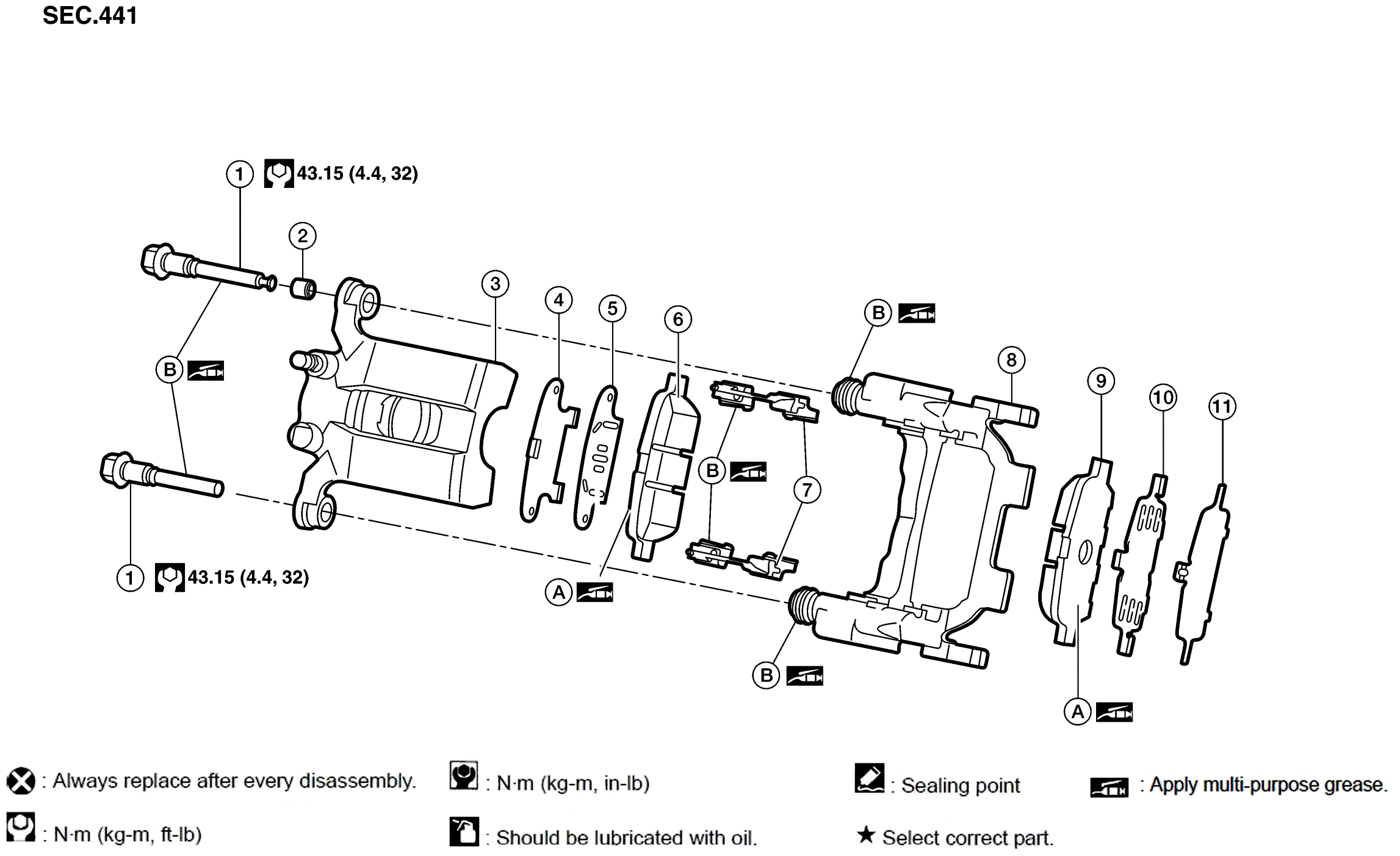

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Sliding pin bolt |
2. |
Sliding pin bushing |
3. |
Cylinder body |
| 4. |
Inner shim cover |
5. |
Inner shim |
6. |
Inner pad |
| 7. |
Pad retainer |
8. |
Torque member |
9. |
Outer pad |
| 10. |
Outer shim |
11. |
Outer shim cover |
|
|
| A. |
Molykote AS-880N |
B. |
Rubber grease |
|
|
