Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

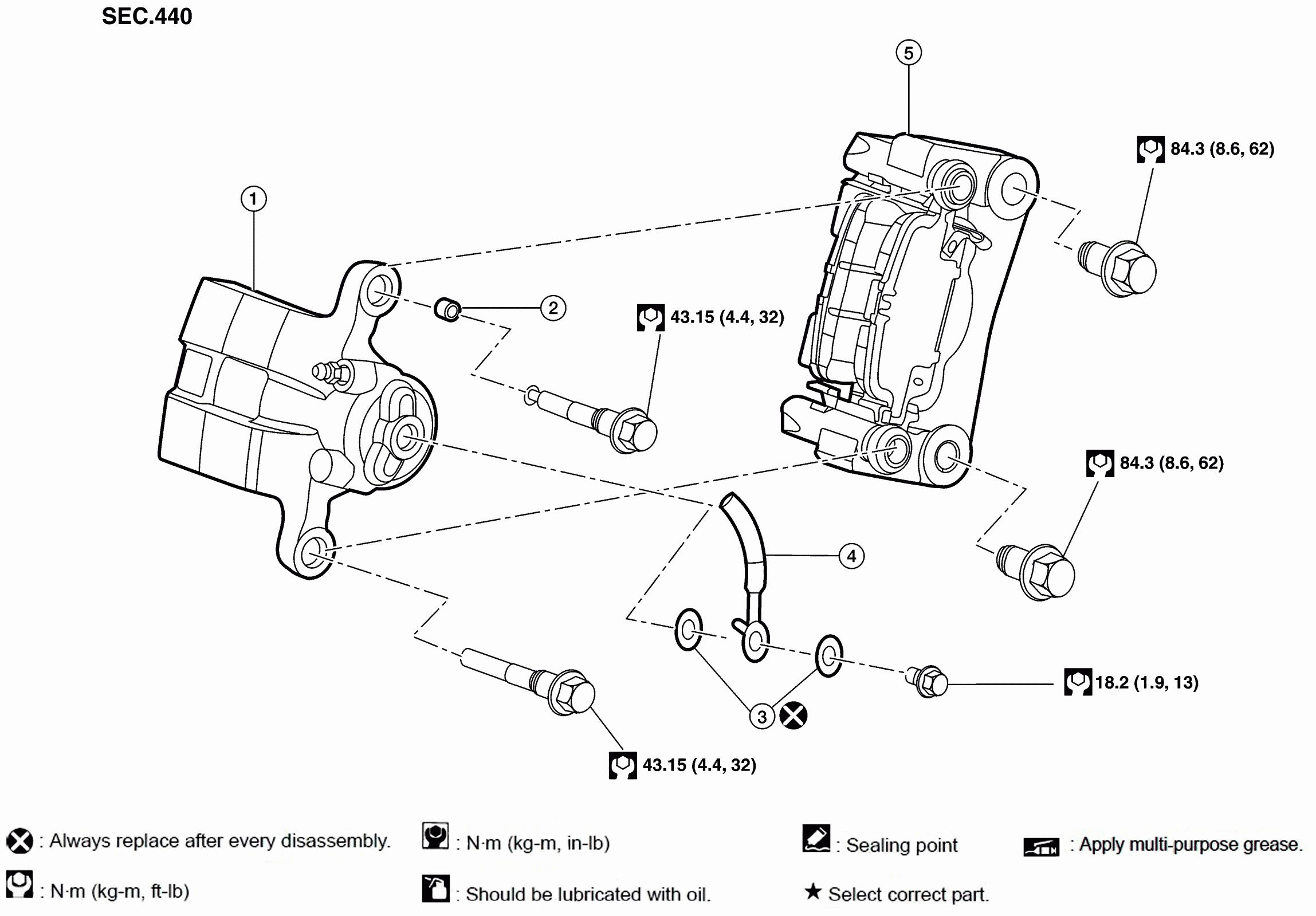

Fig 1: Brake Caliper Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake caliper	2.	Sliding pin bolt bushing	3.	Copper sealing washer
4.	Brake hose	5.	Torque member
