Disassembly And Assembly: Assembly
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Apply new brake fluid to the grommets and install them to the cylinder body.CAUTION:
Do not use mineral oil such as gasoline or light oil.
- Install the reservoir tank to the cylinder body.CAUTION:
Do not drop the parts during installation. The parts must not be reused if they are dropped.

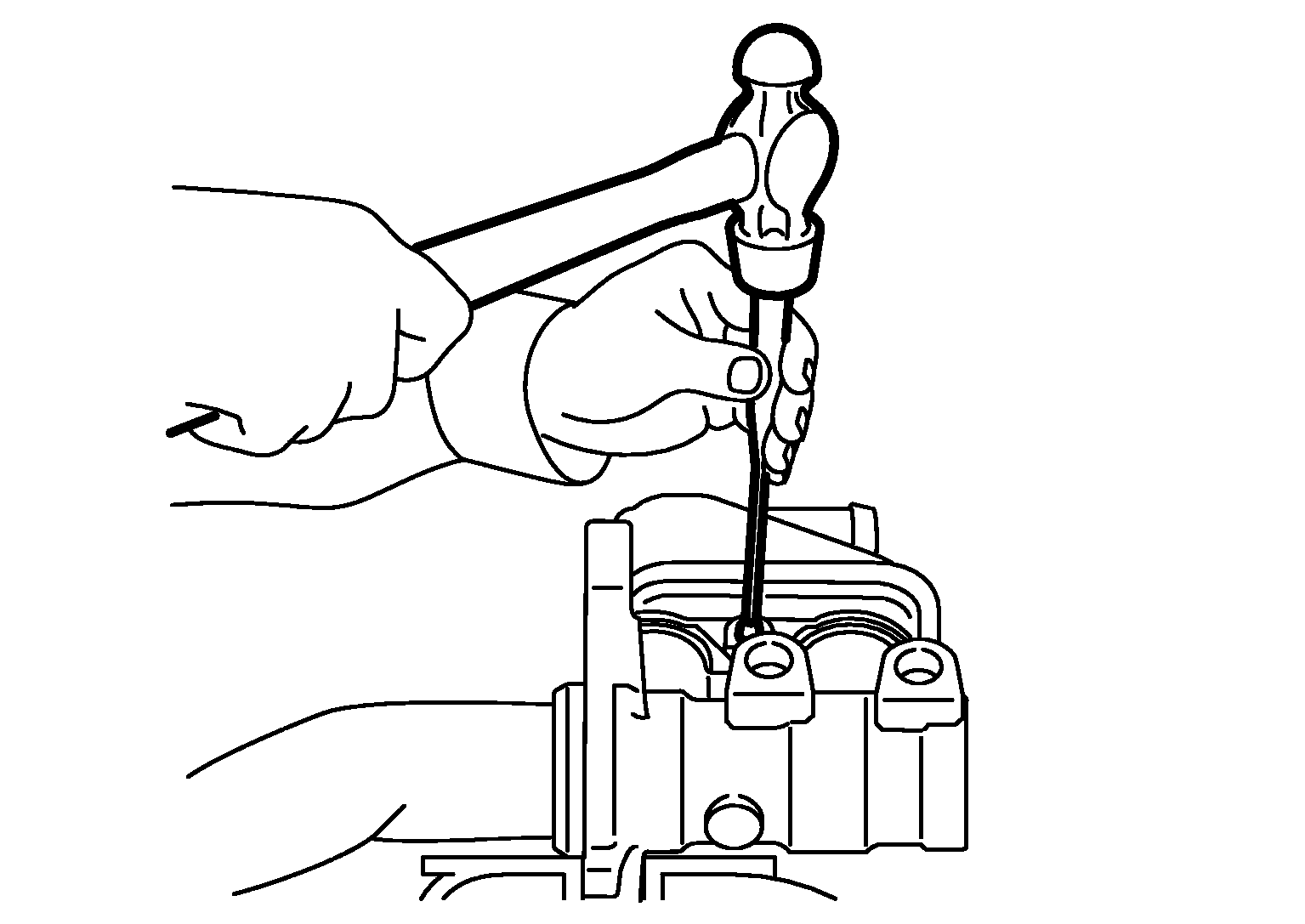

- Tilt the reservoir tank so that the pin can be inserted. Insert a pin using suitable tools.CAUTION:
Do not reuse the pin.
