Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

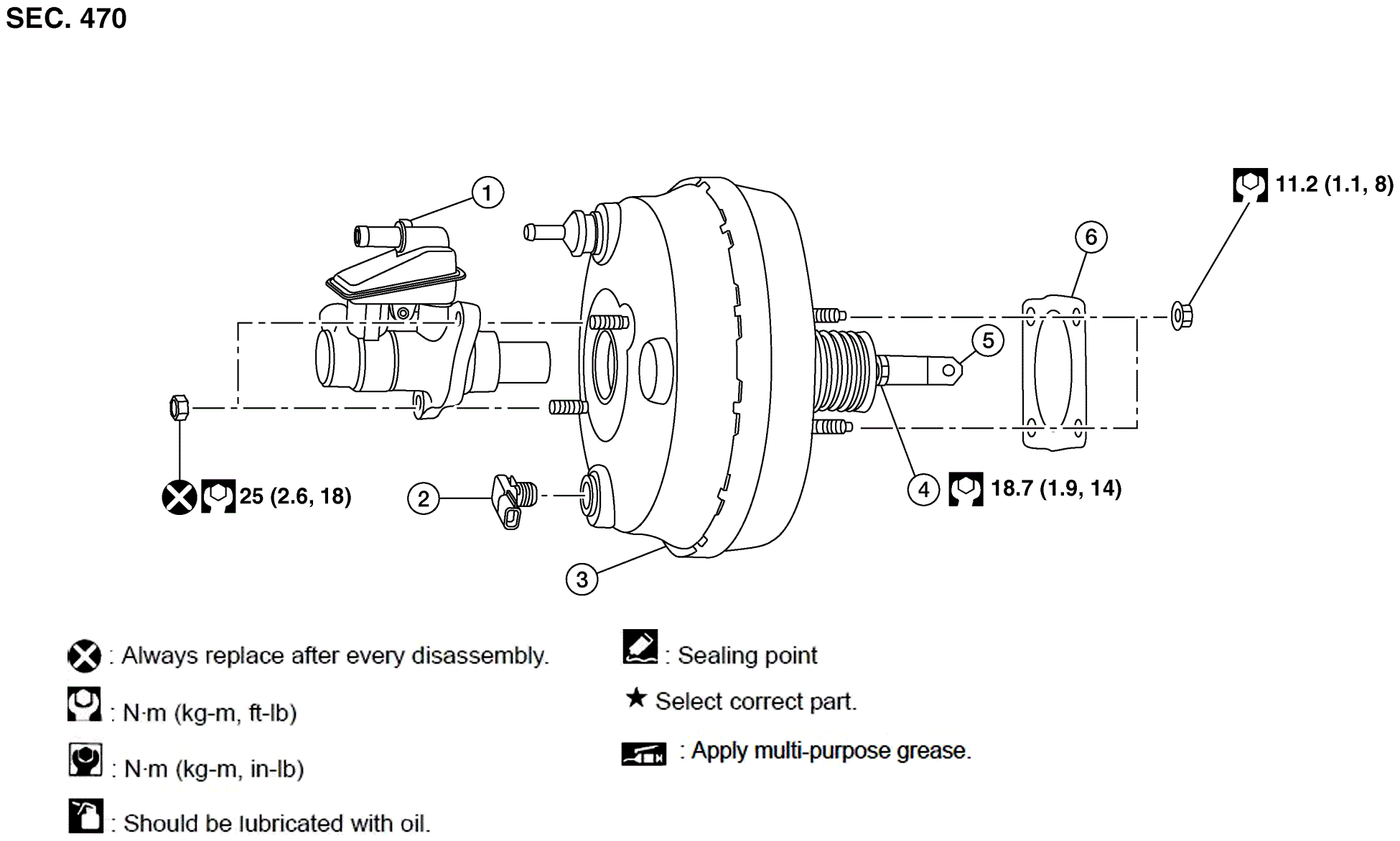

Fig 1: Brake Booster With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Master cylinder assembly	2.	Brake booster pressure sensor	3.	Brake booster
4.	Lock nut	5.	Clevis	6.	Gasket
