Tire Pressure Sensor: Disposal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

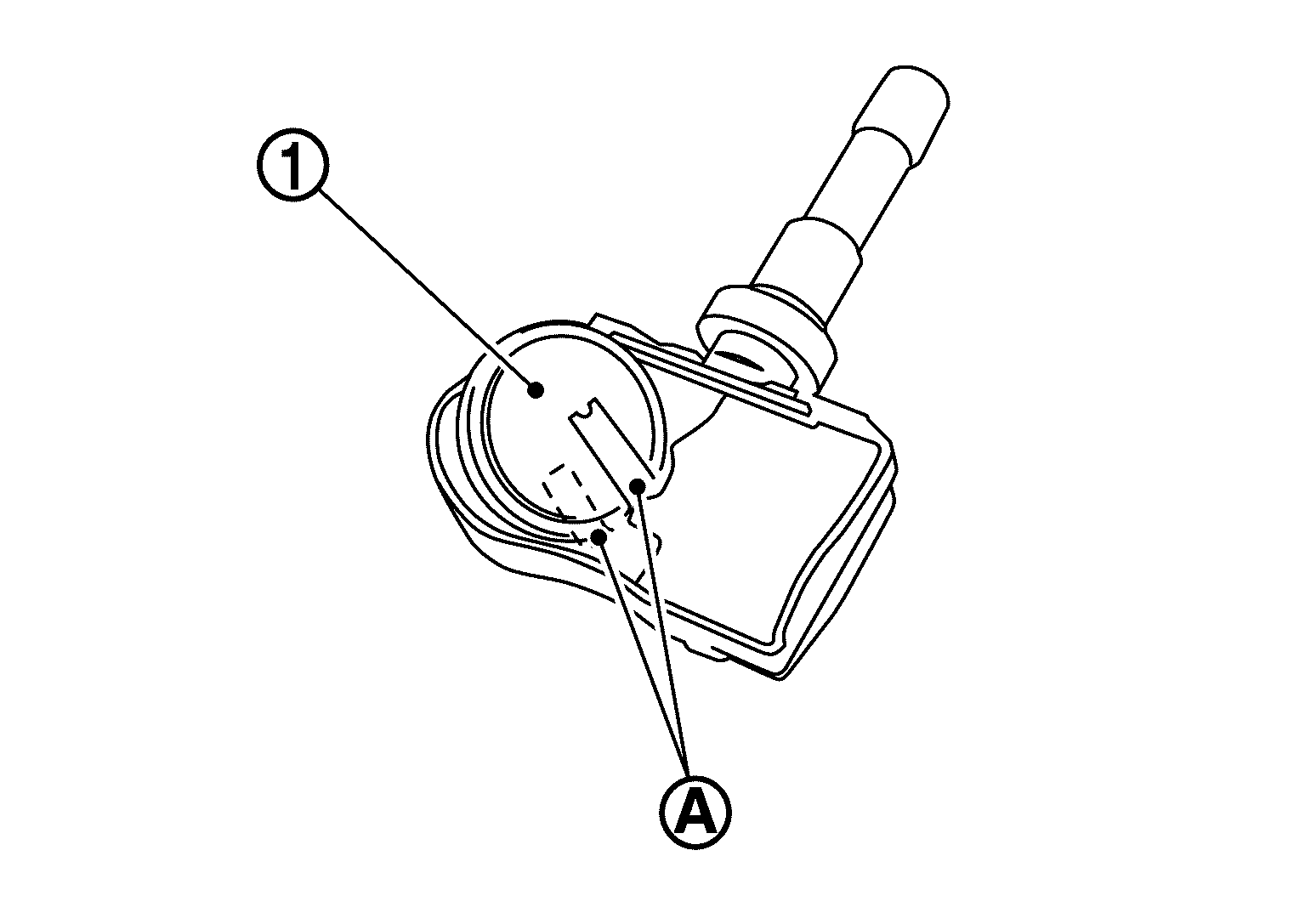

  • When discarding tire pressure sensor, remove battery (1) from tire pressure sensor.
    GNSJSEIA0729ZZ-729Courtesy of NISSAN NORTH AMERICA, INC.
  • Dispose of battery according to the law and local regulations.
  1. Remove battery from tire pressure sensor.
    NOTE:

    The battery is sealed to the tire pressure sensor with urethane.

    1. Remove urethane from tire pressure sensor.
    2. Using a suitable tool cut battery terminal (A), then remove battery from tire pressure sensor.
