With Consult

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch ON.
  2. Using CONSULT, select "WORK SUPPORT" in BCM (AIR PRESSURE MONITOR). Then, select "ID REGIST."
  3. Select "Start" on "ID REGIST" screen.

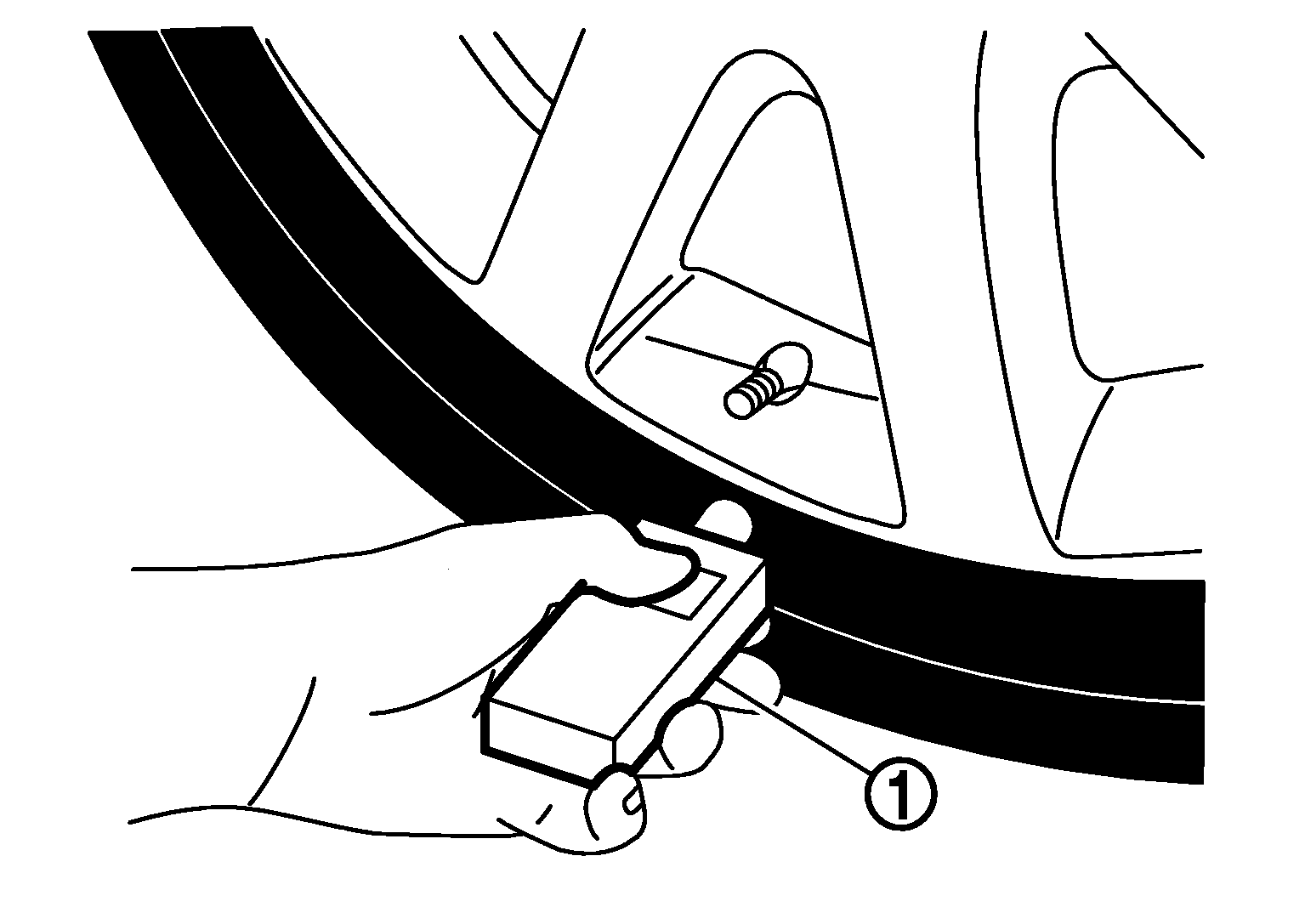

  4. Hold the transmitter activation tool [KV48105501 (J-45295-A)] (1) against the side of the left front tire, near the valve stem.
    G05915191Courtesy of NISSAN NORTH AMERICA, INC.
  5. With the tool held at a 0 to 15 degree angle to the tire, press and hold the transmitter activation tool button until the indicator lamp turns OFF (approximately 5 seconds).
  6. Repeat steps 4 and 5 for the remaining tires in this order: right front, right rear and left rear.
  7. When ID registration is complete, check the following pattern at each wheel.
    Sequence ID registration position Turn signal lamp CONSULT
    1 Front LH 2 blinks "Yet (red)"
    ↓
    "Done (green)"
    2 Front RH
    3 Rear RH
    4 Rear LH
  8. After the ID registration procedure for all wheels is complete, press "End" on the CONSULT to finish ID registration.
  9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.
