With Consult

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the tire pressure for all tires to the recommended value. Refer to TIRE AIR PRESSURE .
  2. Turn the ignition switch ON.
  3. Using CONSULT, select "WORK SUPPORT" in BCM (AIR PRESSURE MONITOR). Then, select "ID REGIST."
  4. Select "Start" on "ID REGIST" screen.
  5. Turn on the Signal Tech II tool [- (J-50190)].
  6. Hold the Signal Tech II against the side of the left front tire, near the valve stem.

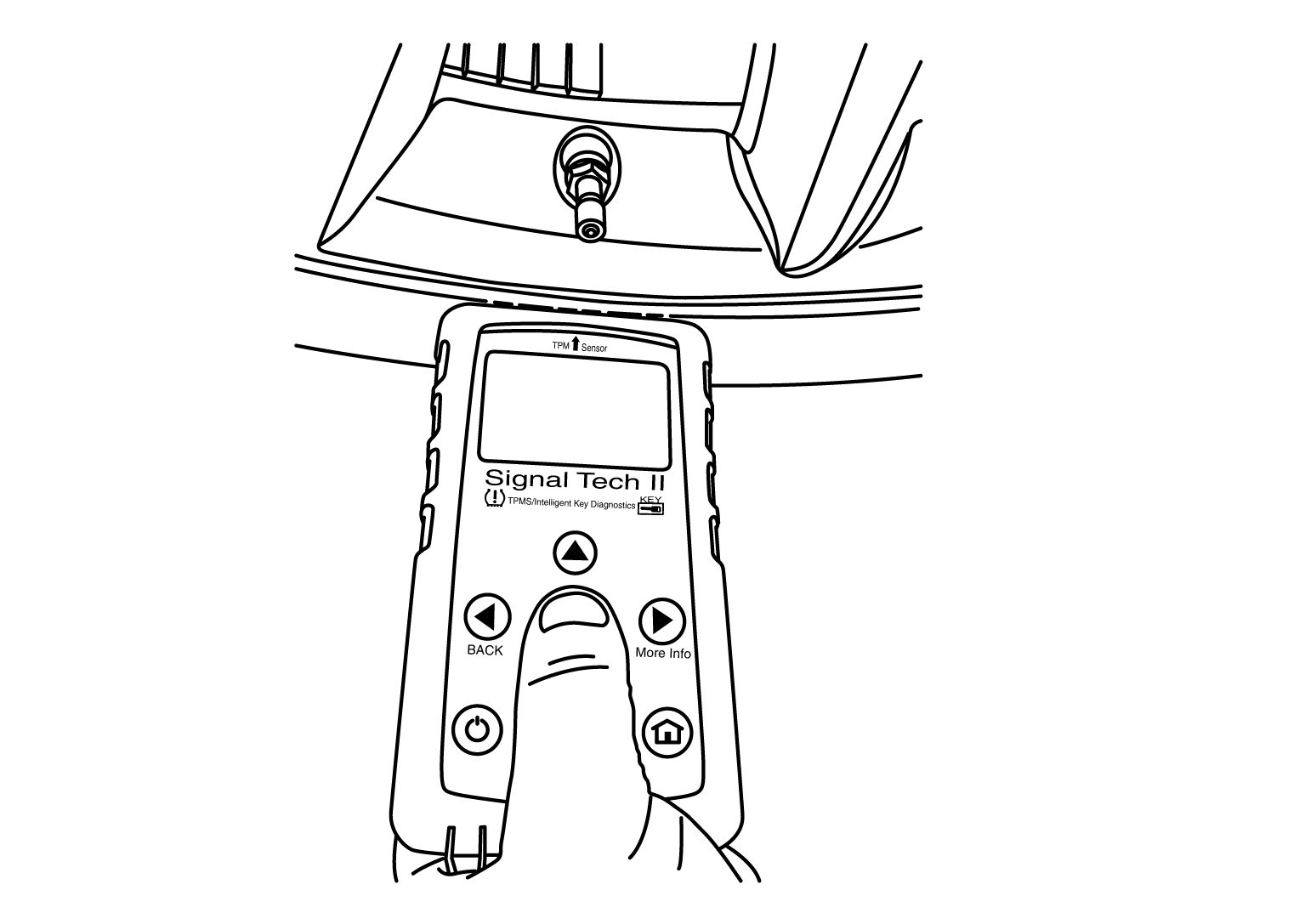

    G08686469Courtesy of NISSAN NORTH AMERICA, INC.
  7. With the tool held at a 0 to 15 degree angle to the tire, select "Activate Sensor" from the main menu, then press and release the "OK" button to activate the sensor. Once the sensor is activated, the vehicle parking lamps will flash and the sensor ID will appear on the CONSULT screen.
  8. Repeat steps 6 and 7 for the remaining tires in this order: right front, right rear and left rear.
  9. When ID registration is complete, check the following pattern at each wheel.
    Sequence ID registration position Turn signal lamp CONSULT
    1 Front LH 2 blinks "Yet (red)"
    ↓
    "Done (green)"
    2 Front RH
    3 Rear RH
    4 Rear LH
  10. Once all sensors have been activated, select "End" on the CONSULT to finish ID registration.
  11. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.
