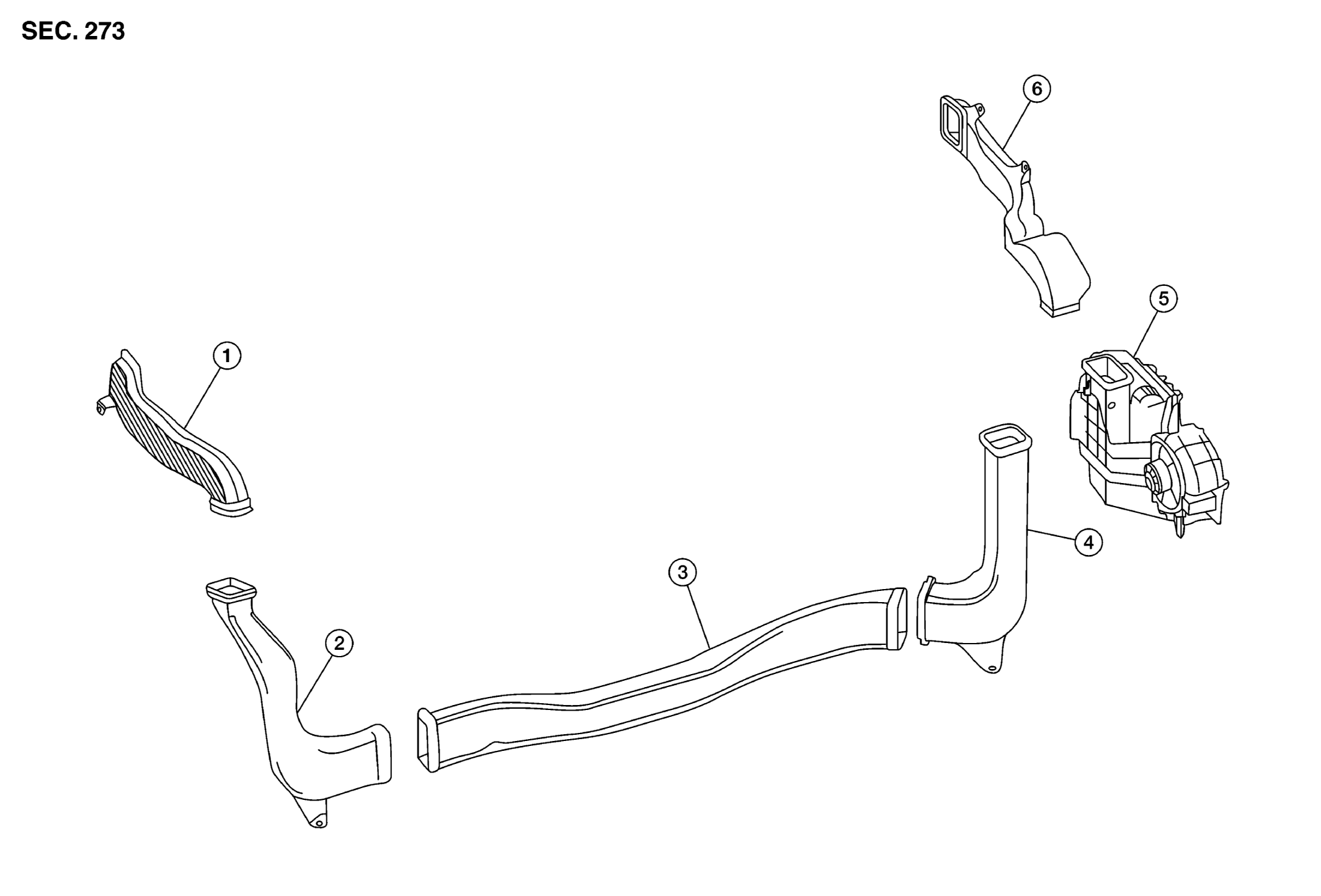

Exploded View With Torque Specifications: Rear
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Rear ventilator duct 1 |
2. |
Rear ventilator duct 2 |
3. |
Rear ventilator duct 3 |
| 4. |
Rear ventilator duct lower |
5. |
Rear cooling unit assembly |
6. |
Rear ventilator duct upper |
