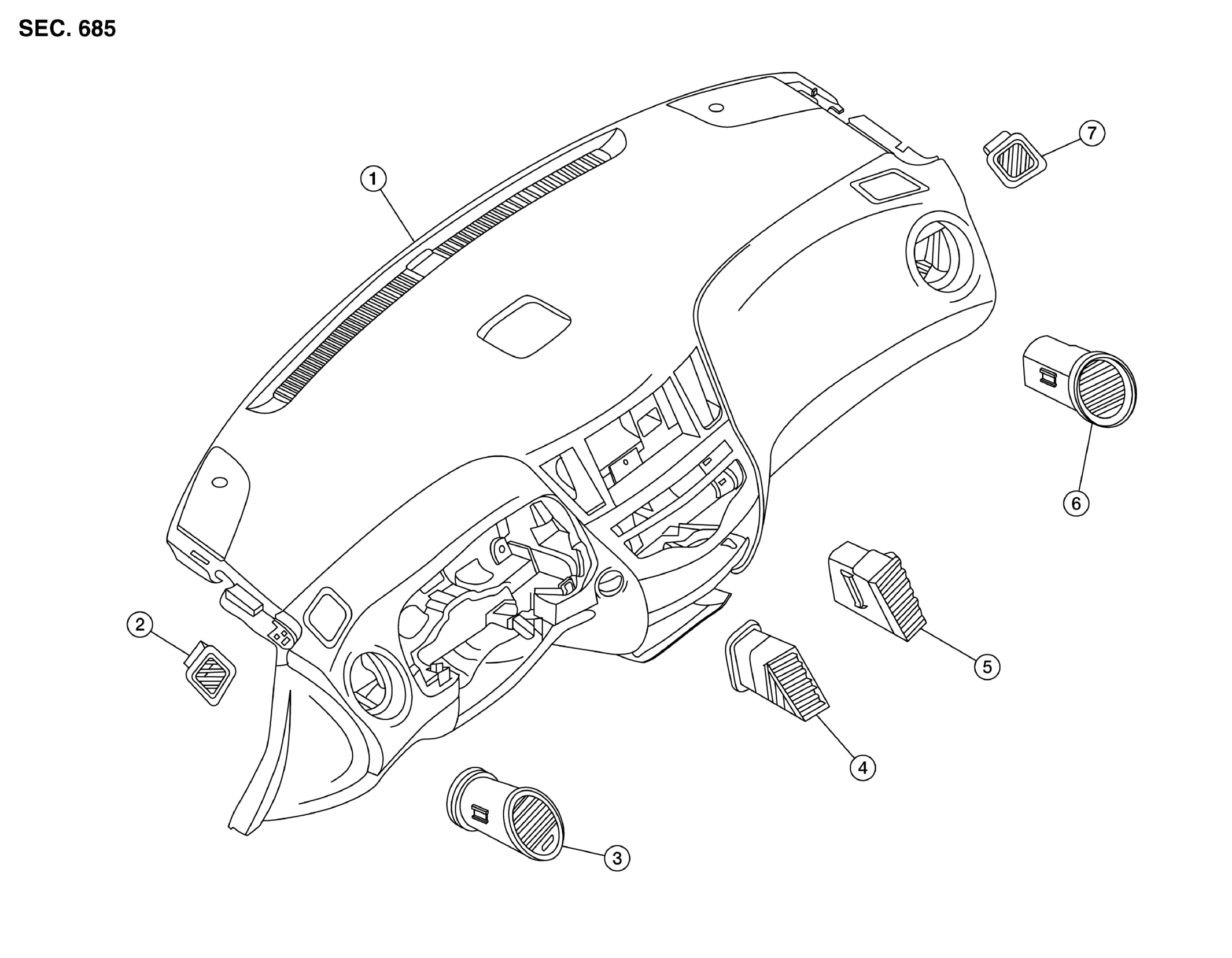

Exploded View With Torque Specifications: Overview
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Instrument panel |
2. |
Side defroster grille (LH) |
3. |
Side ventilator grille (LH) |
| 4. |
Center ventilator grille (LH) |
5. |
Center ventilator grille (RH) |
6. |
Side ventilator grille (RH) |
| 7. |
Side defroster grille (RH) |
|
|
|
|
