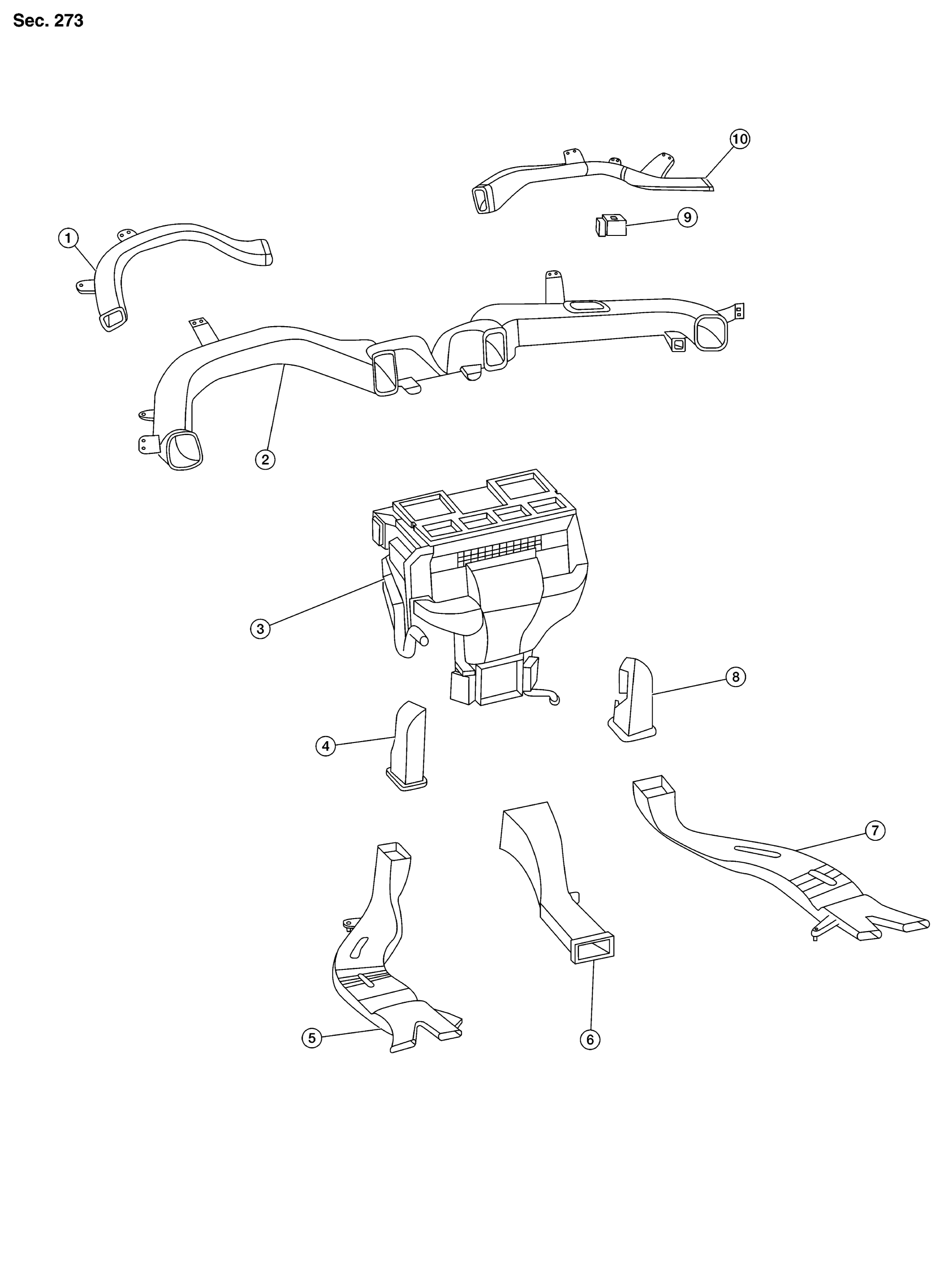

Exploded View With Torque Specifications: Front
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Side defroster duct (LH) | 2. | Center ventilator duct | 3. | Front heating and cooling unit assembly |
| 4. | Front floor connecting duct LH | 5. | Front floor duct (LH) | 6. | Adaptor duct (to rear blower motor 1 unit assembly) |
| 7. | Front floor duct (RH) | 8. | Front floor connecting duct (RH) | 9. | Ionizer (if equipped) |
| 10. | Side defroster duct (RH) |
