Exploded View With Torque Specifications: Center

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

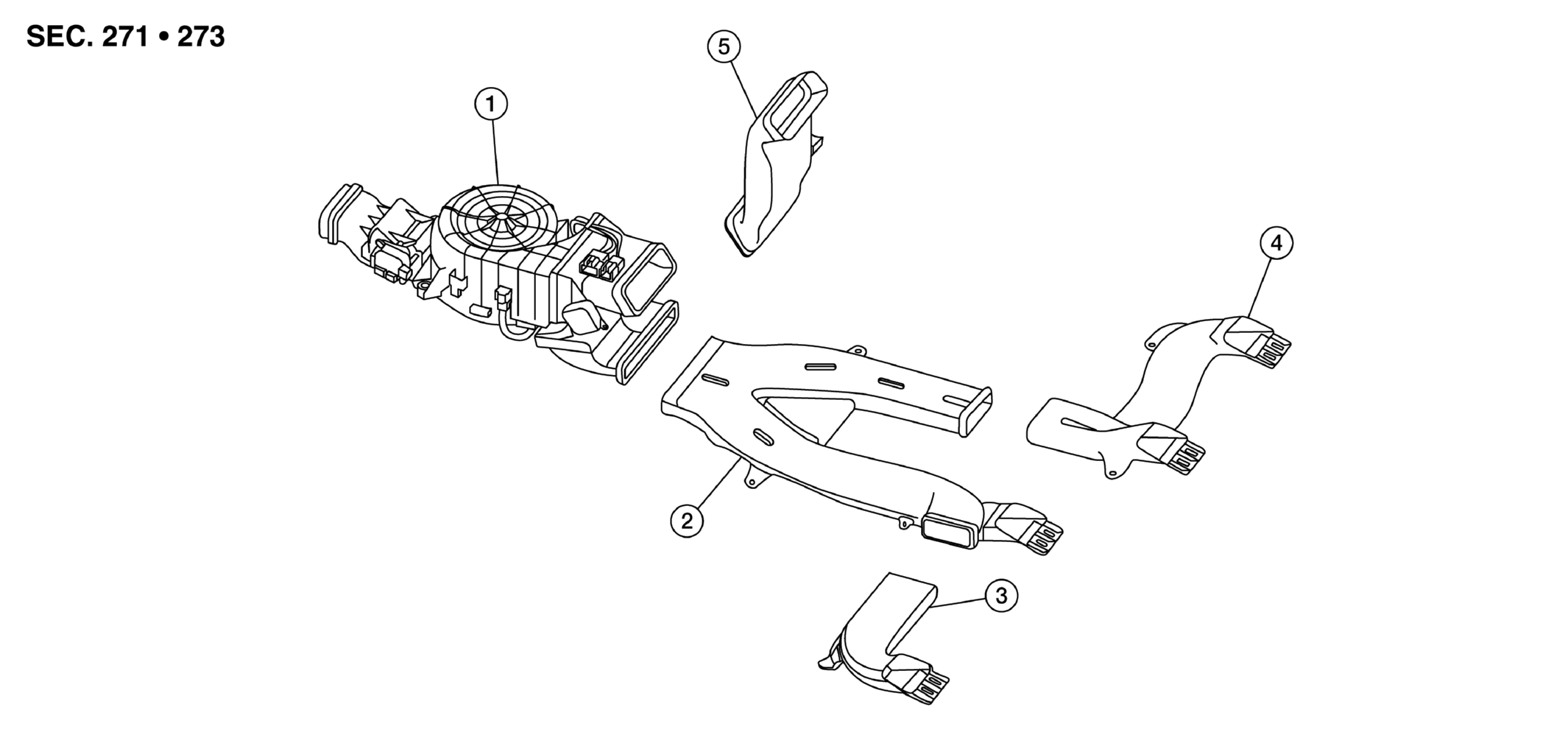

G09425698Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear blower motor 1 unit assembly 2. Center floor connecting duct 3. Center floor duct (LH)
4. Center floor duct (RH) 5. Rear center ventilator duct
