Exploded View With Torque Specifications: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

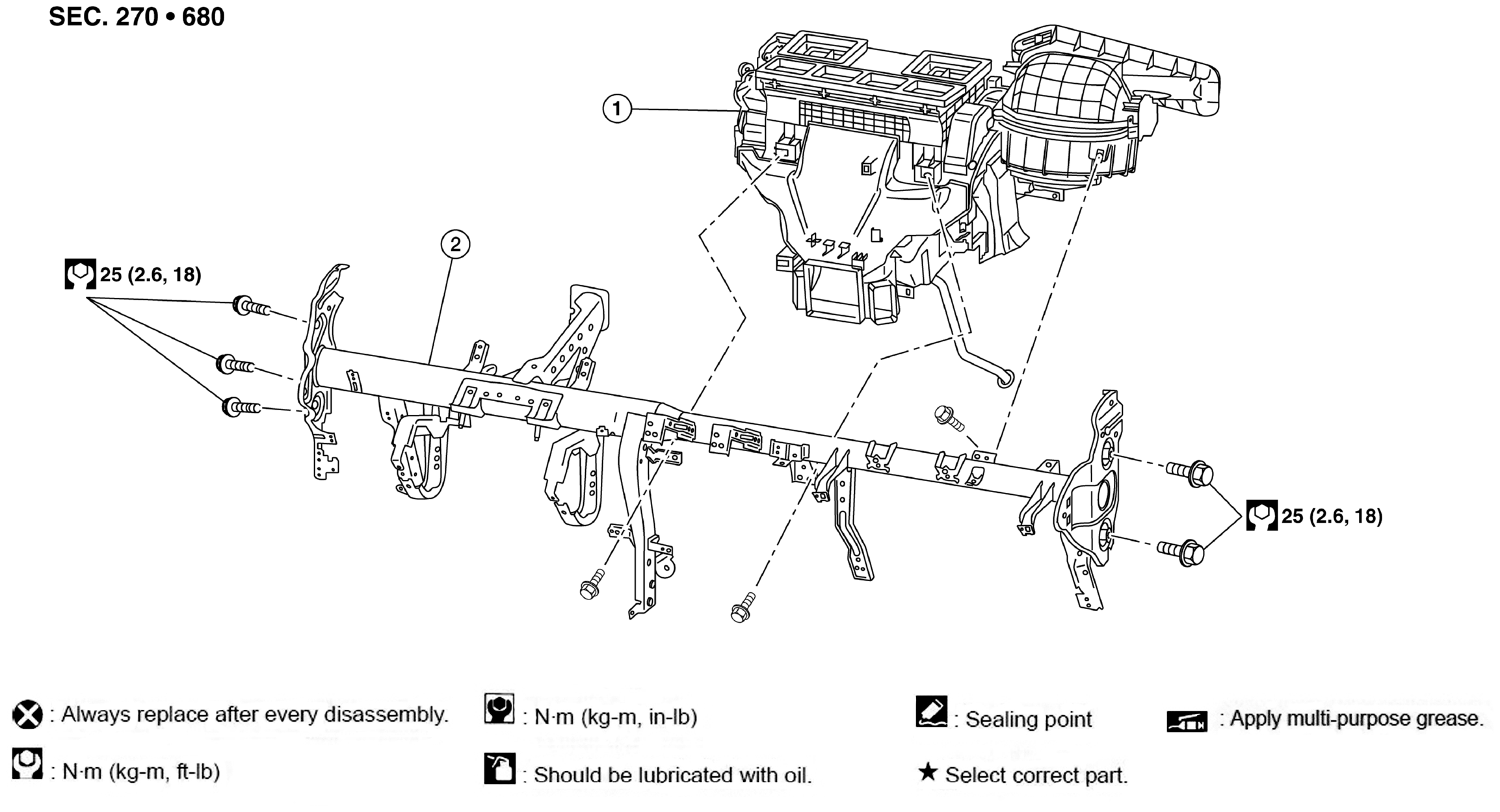

Fig 1: Blower Unit With Torque Specifications
G09425708Courtesy of NISSAN NORTH AMERICA, INC.
1. Front heating and cooling unit assembly 2. Steering member
