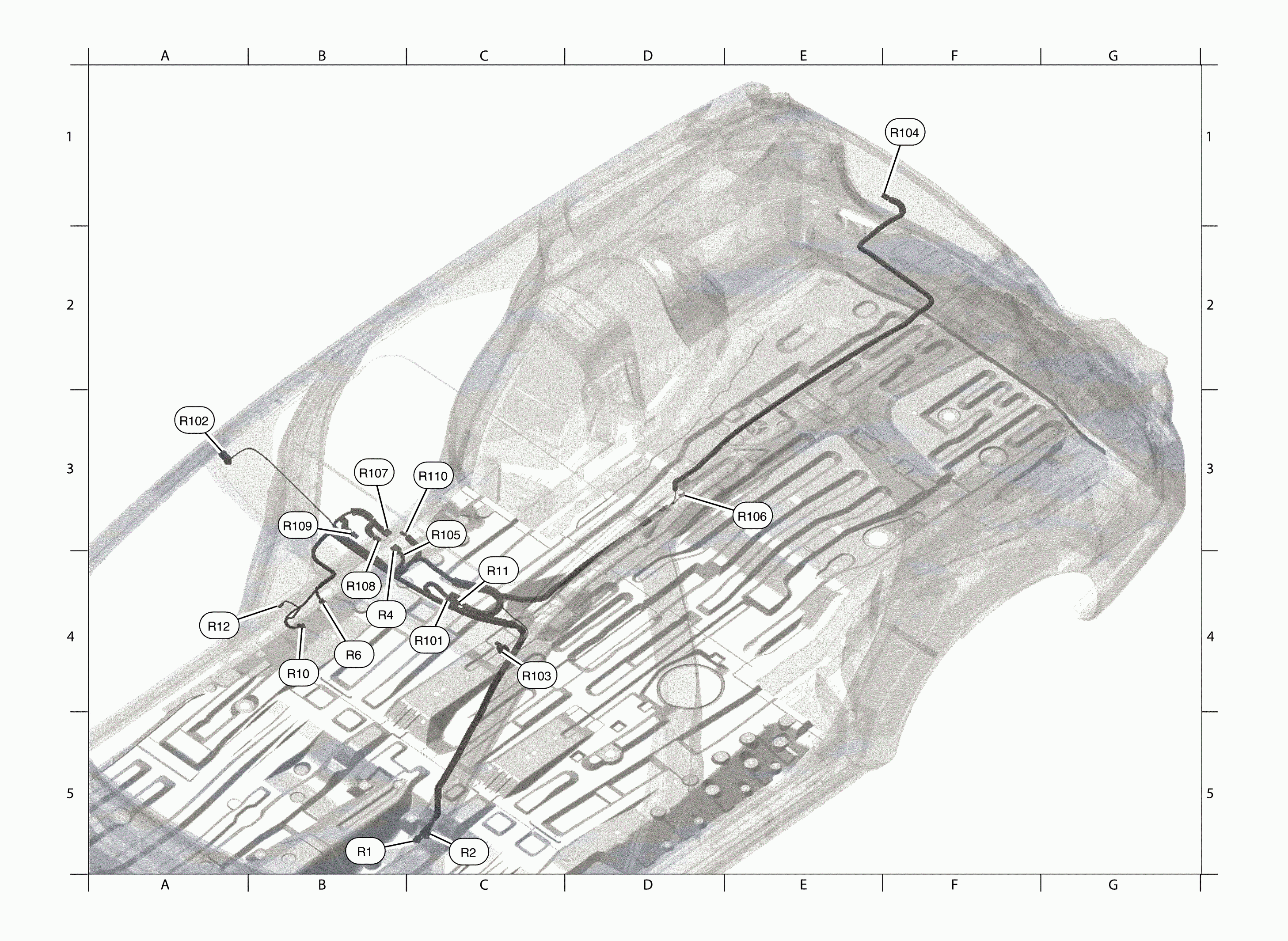

Room Lamp Harness
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| B5 | R1 | W/24 | : To M1 | A3 | R102 | W/2 | : Vanity lamp RH | |
| C5 | R2 | W/6 | : To M2 | C4 | R103 | W/2 | : Vanity lamp LH | |
| B4 | R4 | GR/10 | : Moonroof motor assembly | F1 | R104 | W/3 | : Cargo lamp | |
| B4 | R6 | B/12 | : Lane camera unit | C3 | R105 | W/8 | : Telematics switch | |
| B4 | R10 | B/10 | : Auto anti-dazzling inside mirror | E3 | R106 | W/4 | : Personal lamps 2nd row | |
| C4 | R11 | W/24 | : To R101 | B3 | R107 | GR/8 | : Front room/map lamp assembly | |
| A4 | R12 | B/3 | : Rain sensor | B4 | R108 | W/8 | : Moonroof switch | |
| Room lamp sub-harness | B3 | R109 | W/4 | : Microphone | ||||
| C4 | R101 | W/24 | : To R11 | C3 | R110 | W/4 | : Sunshade switch | |
