Rear Door RH Harness

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

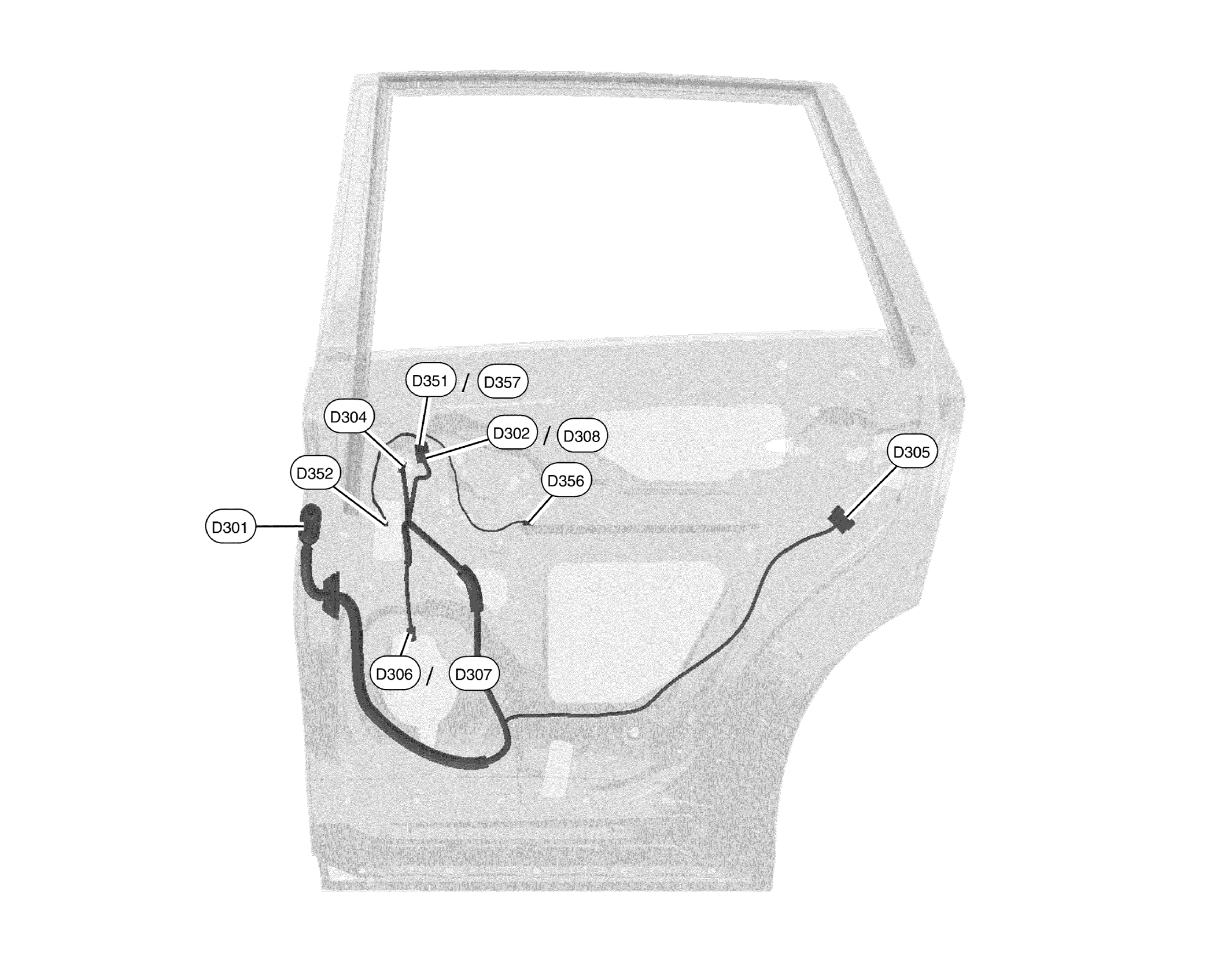

GNSAAMIA0674ZZ-674Courtesy of NISSAN NORTH AMERICA, INC.
D301 W/12 : To B139   D308 W/8 : To D357
D302 W/12 : To D351   Rear door RH sub-harness
D304 W/6 : Rear power window motor RH   D351 W/12 : To D302
D305 GR/6 : Rear door lock actuator RH   D352 BR/2 : Rear door tweeter RH
D306 W/2 : Rear door speaker RH (With base audio
system)
  D356 W/16 : Rear power window switch RH
D307 BR/2 : Rear door speaker RH (With BOSE audio
system)
  D357 W/8 : To D308
