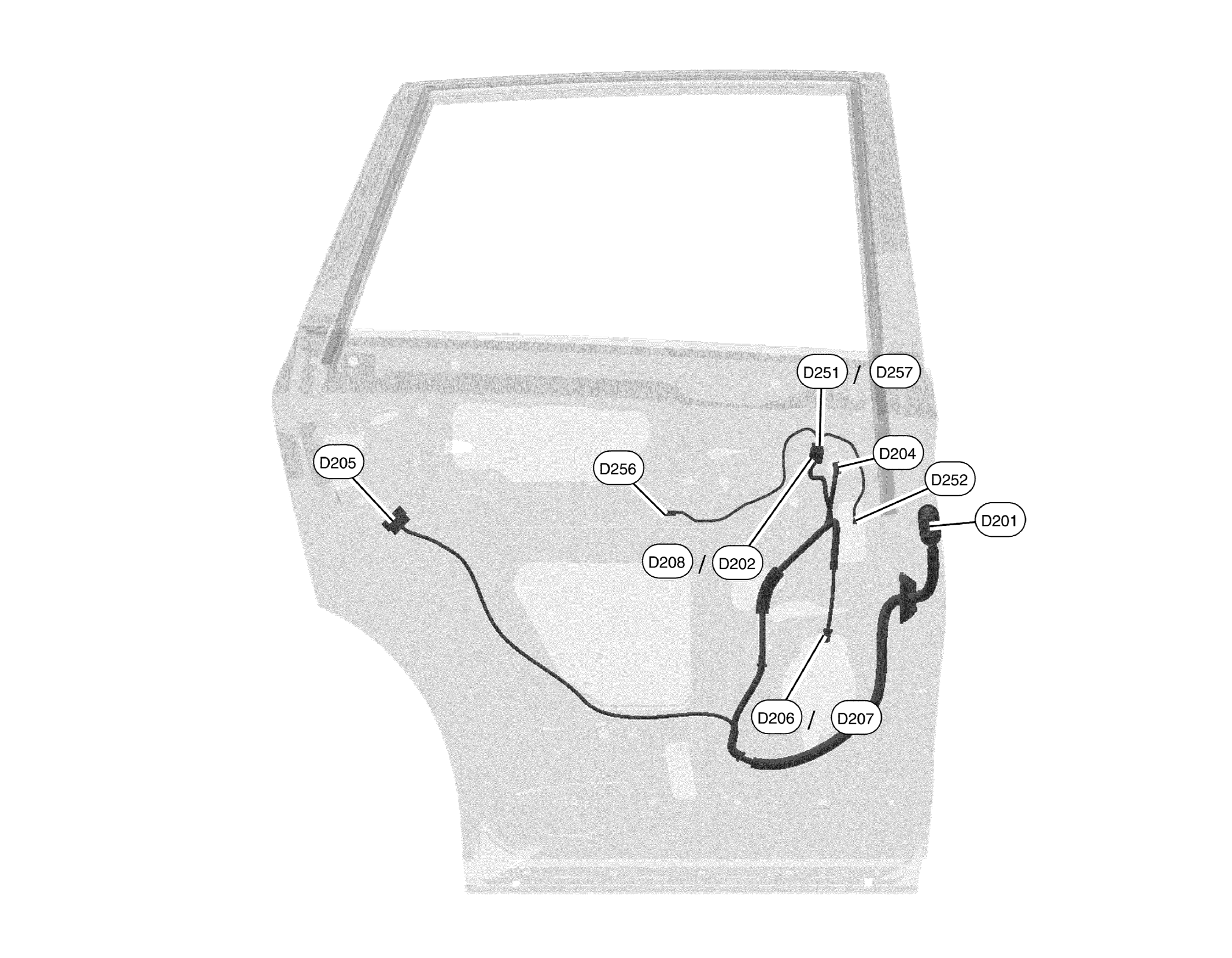

Rear Door LH Harness
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| D201 | W/12 | : To B51 | D208 | W/8 | : To D257 | |
| D202 | W/12 | : To D251 | Rear door LH sub-harness | |||
| D204 | W/6 | : Rear power window motor LH | D251 | W/12 | : To D202 | |
| D205 | GR/6 | : Rear door lock actuator LH | D252 | BR/2 | : Rear door tweeter LH | |
| D206 | W/2 | : Rear door speaker LH (With base audio system) |
D256 | W/16 | : Rear power window switch LH | |
| D207 | BR/2 | : Rear door speaker LH (With BOSE audio system) |
D257 | W/8 | : To D208 | |
