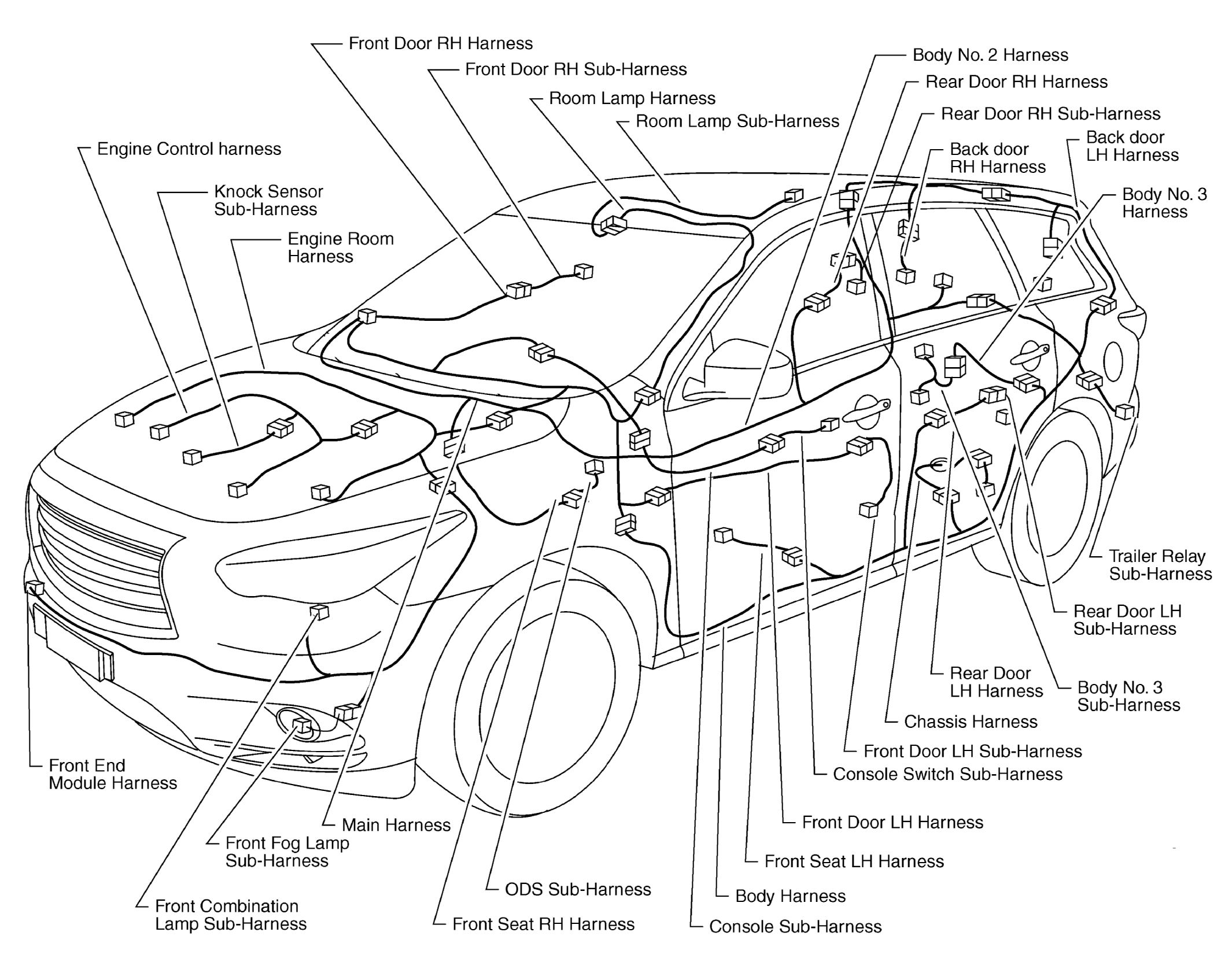

Harness Layout: Outline

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
GNSABMIA6893GB-893Courtesy of NISSAN NORTH AMERICA, INC.
