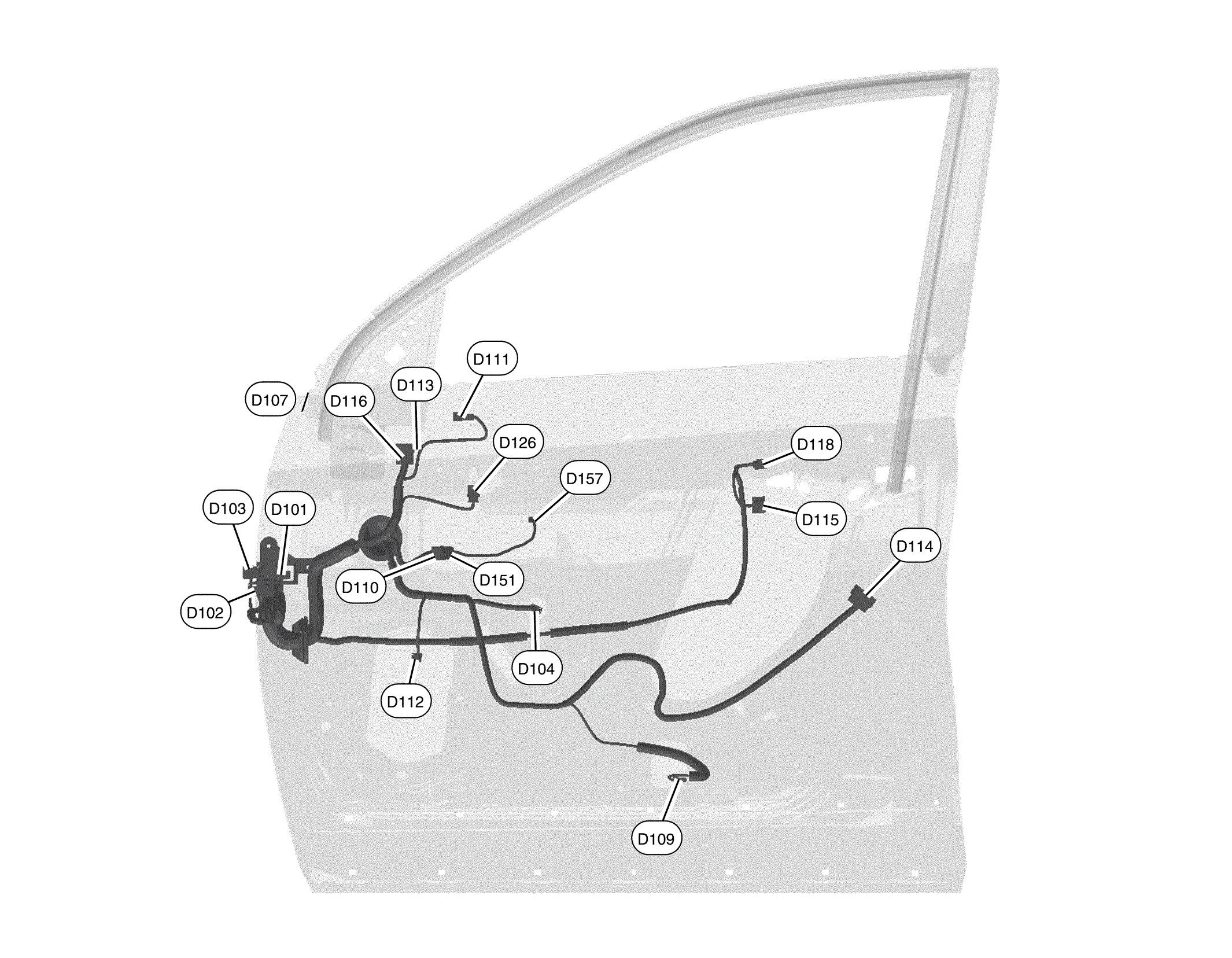

Front Door RH Harness
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| D101 | W/32 | : To M91 | D113 | W/24 | : Door mirror RH (Side camera) | |
| D102 | W/10 | : To M158 | D114 | GR/6 | : Front door lock actuator RH | |
| D103 | Y/4 | : To M159 | D115 | W/6 | : Front outside handle assembly RH | |
| D104 | W/6 | : Front power window motor RH | D116 | W/24 | : Door mirror RH (With around view monitor) | |
| D107 | W/12 | : Door mirror RH (Without around view monitor) |
D118 | GR/2 | : Outside key antenna (Passenger side) | |
| D109 | W/2 | : Front step lamp RH | D126 | Y/2 | : Front door satellite sensor RH | |
| D110 | W/10 | : To D151 | Front door RH sub-harness | |||
| D111 | W/4 | : Blind spot warning indicator RH | D151 | W/10 | : To D110 | |
| D112 | W/2 | : Front door speaker RH | D157 | W/16 | : Power window and door lock/unlock switch RH |
|
