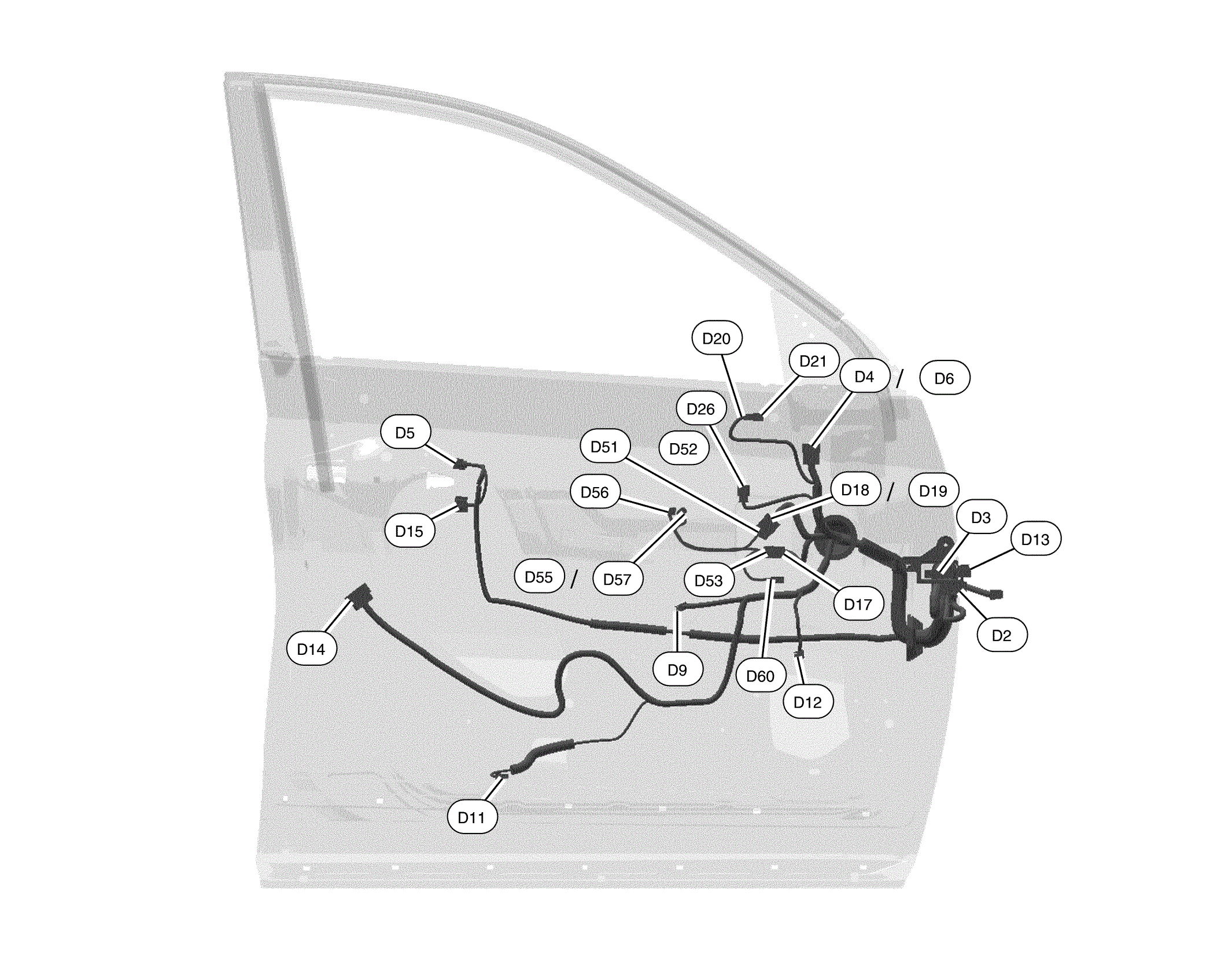

Front Door LH Harness
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| D2 | W/16 | : To M167 | D19 | W/24 | : To D52 | |
| D3 | W/40 | : To M168 | D20 | W/24 | : Door mirror LH (Side camera) | |
| D4 | W/12 | : Door mirror LH (Without around view monitor) |
D21 | W/4 | : Blind spot warning indicator LH | |
| D5 | GR/2 | : Outside key antenna (Driver side) | D26 | Y/2 | : Front door satellite sensor LH | |
| D6 | W/24 | : Door mirror LH (With around view monitor) | Front door LH sub-harness | |||
| D9 | W/6 | : Front power window motor LH | D51 | W/16 | : To D18 | |
| D11 | W/2 | : Front step lamp LH | D52 | W/24 | : To D19 | |
| D12 | W/2 | : Front door speaker LH | D53 | W/8 | : To D17 | |
| D13 | Y/4 | : To M169 | D55 | W/12 | : Main power window and door lock/unlock switch (Power mirror remote control switch) (Without automatic drive positioner) |
|
| D14 | GR/6 | : Front door lock assembly LH | D56 | W/16 | : Main power window and door lock/unlock switch |
|
| D15 | W/6 | : Front outside handle assembly LH | D57 | W/12 | : Main power window and door lock/unlock switch (Power mirror remote control switch) (With automatic drive positioner) |
|
| D17 | W/8 | : To D53 | D60 | W/16 | : Seat memory switch | |
| D18 | W/16 | : To D51 | ||||
