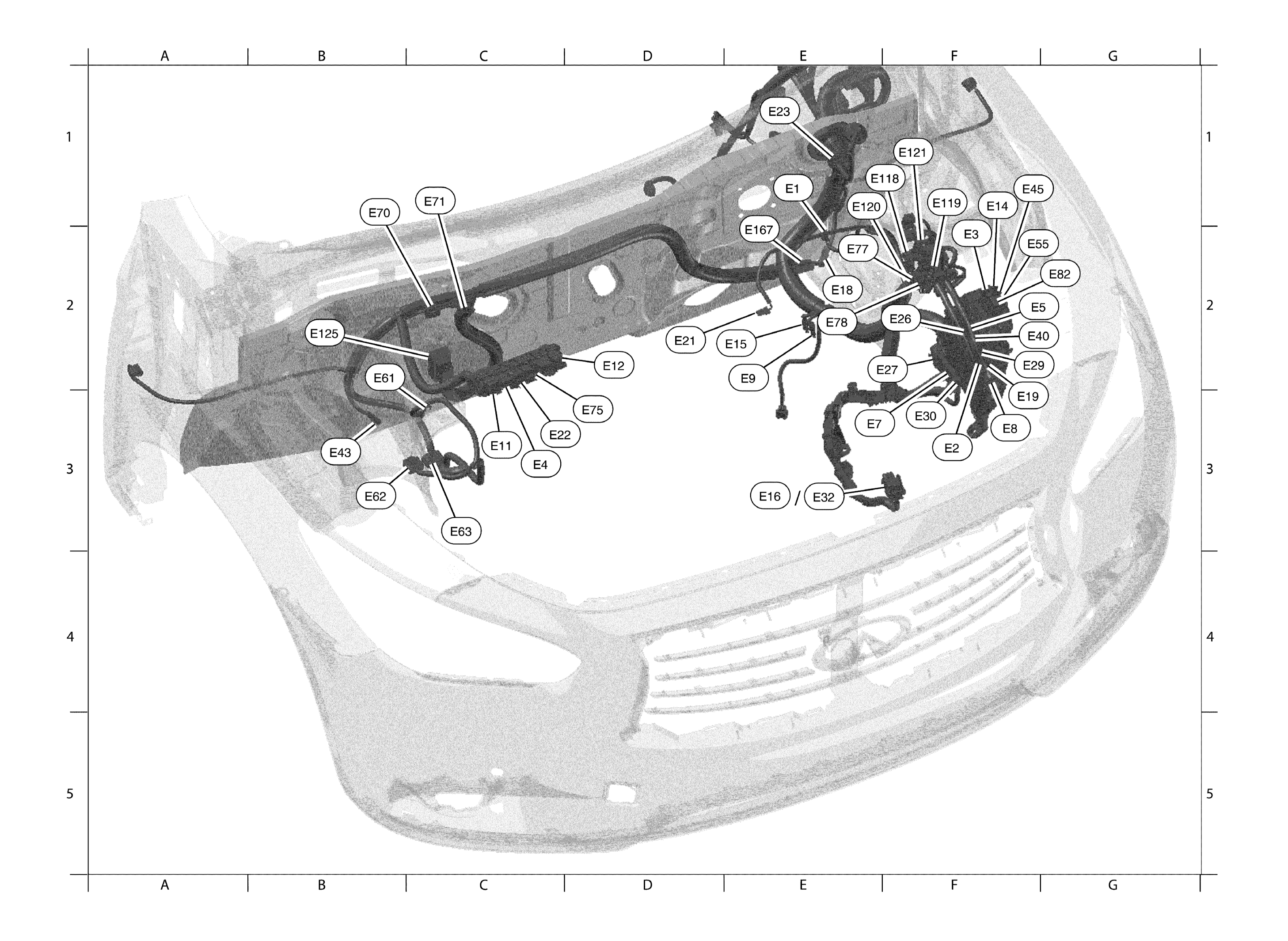

Engine Room Harness

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

E1	E1	BR/3	: Intelligent Key warning buzzer	F3	E30	B/1	: Fusible link box (Battery)
F3	E2	W/16	: To F32	E3	E32	B/32	: ECM (Except for Mexico)
F2	E3	B/2	: Anti theft diode	G2	E40	B/2	: To E201
C3	E4	BR/6	: Daytime running light relay	B3	E43	B/2	: Front wheel sensor RH
G2	E5	W/16	: To E207	F1	E45	L/12	: Joint connector-E12
E3	E7	GR/2	: Fusible link box (Battery)	G2	E55	W/4	: Joint connector-E10
F3	E8	W/3	: Anti theft horn relay	B2	E61	-	: Body ground
E2	E9	-	: Body ground	B3	E62	B/6	: Power steering control module
C3	E11	L/5	: PTC relay-1	C3	E63	B/2	: Power steering control module
D2	E12	L/5	: PTC relay-2	B1	E70	B/6	: Joint connector-E14
F1	E14	B/12	: Joint connector-E05	C1	E71	B/6	: Joint connector-E15
E2	E15	-	: Body ground	D3	E75	L/4	: ICC brake hold relay
E3	E16	GR/32	: ECM (For Mexico)	E2	E77	L/4	: Trailer turn relay LH
E2	E18	B/2	: Front wheel sensor LH	E2	E78	L/4	: Trailer turn relay RH
F3	E19	W/10	: To F33	G2	E82	BR/4	: Cooling fan relay
D2	E21	GR/2	: Brake fluid level switch	F1	E118	B/2	: IPDM E/R (Intelligent power distribution module engine room)
C3	E22	L/4	: Accessory relay-2	F1	E119	W/32	: IPDM E/R (Intelligent power distribution module engine room)
E1	E23	GR/5	: Front wiper motor	E1	E120	W/4	: IPDM E/R (Intelligent power distribution module engine room)
F2	E26	W/24	: To E209	F1	E121	W/12	: IPDM E/R (Intelligent power distribution module engine room)
F2	E27	BR/2	: Fusible link box (Battery)	B2	E125	B/38	: ABS actuator and electric unit (Control unit)
F2	E29	Y/4	: To E210	E2	E167	B/3	: Vacuum sensor
