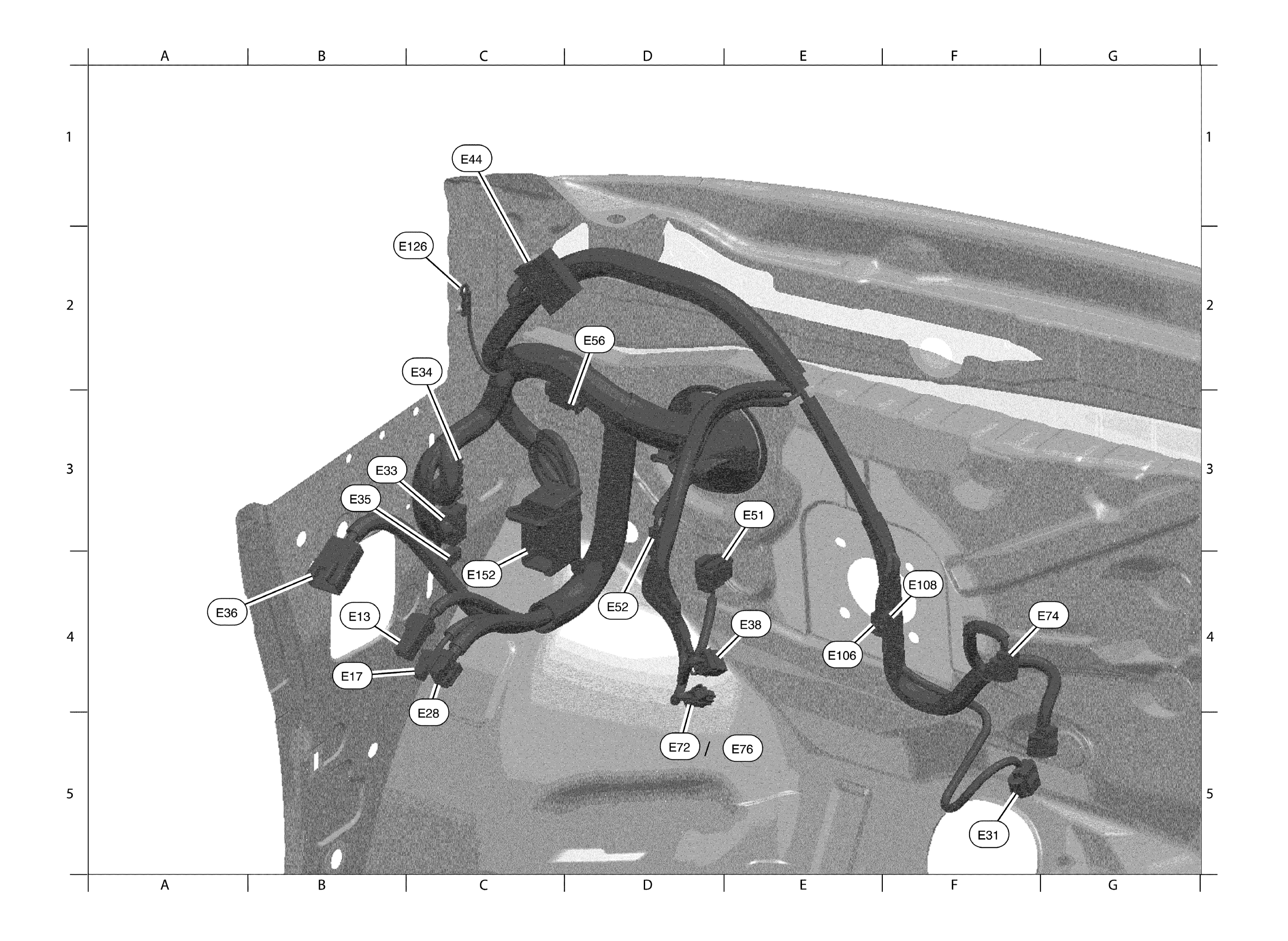

Engine Room Harness (Passenger View)
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| B4 | E13 | W/1 | : Fuse block (J/B) | E3 | E51 | B/4 | : Brake pedal stroke sensor | |
| B4 | E17 | W/1 | : Fuse block (J/B) | D4 | E52 | B/1 | : Parking brake switch | |
| C5 | E28 | W/10 | : Fuse block (J/B) | D2 | E56 | BR/2 | : VDC resistor | |
| F5 | E31 | B/6 | : Accelerator pedal position sensor (Without intelligent cruise control) |
D5 | E72 | BR/2 | : Brake pedal position switch (With intelligent cruise control) |
|
| B3 | E33 | W/12 | : To B43 | G4 | E74 | B/12 | : Accelerator pedal actuator (With intelligent cruise control) |
|
| C2 | E34 | W/24 | : To B40 | E5 | E76 | BR/2 | : Brake pedal position switch (Without intelligent cruise control) |
|
| B3 | E35 | GR/1 | : To B48 | E4 | E106 | W/4 | : Joint connector-E06 | |
| A4 | E36 | W/3 | : To M75 | F4 | E108 | W/4 | : Joint connector-E07 | |
| E4 | E38 | W/4 | : Stop lamp switch | C2 | E126 | - | : Body ground | |
| C1 | E44 | W/33 | : Joint connector-E01 | C4 | E152 | SMJ | : To M31 |
