Back Door
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

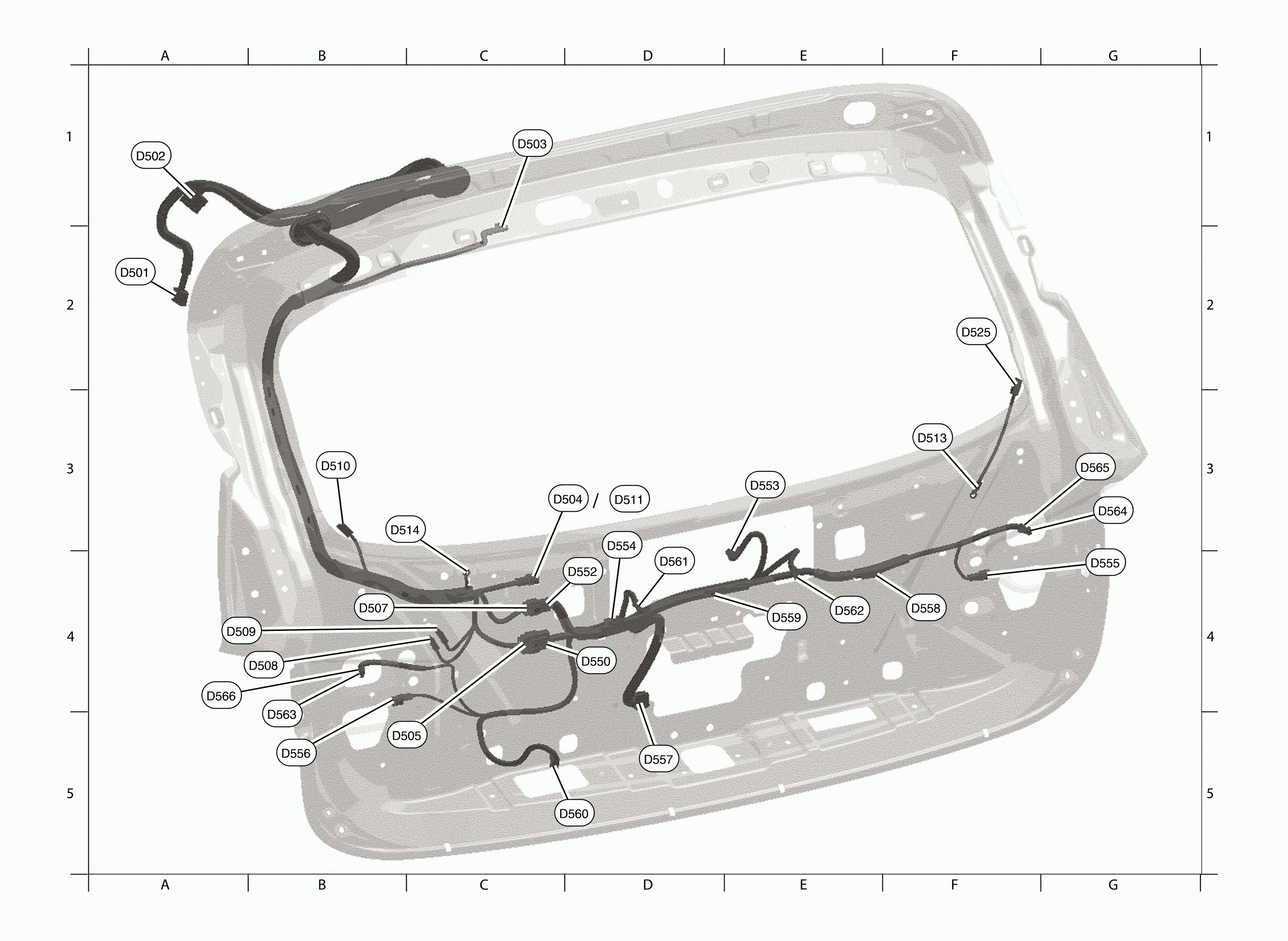

| A2 | D501 | W/24 | : To B46 | D4 | D552 | W/24 | : To D507 | |
| A1 | D502 | GR/8 | : To B47 | E3 | D553 | W/3 | : Rear wiper motor | |
| C1 | D503 | BR/2 | : High-mounted stop lamp | D3 | D554 | W/4 | : Joint connector-D01 | |
| D3 | D504 | W/4 | : Rear view camera (Without NAVI) | G4 | D555 | GR/2 | : Touch sensor RH | |
| C5 | D505 | W/6 | : To D550 | B5 | D556 | W/2 | : Touch sensor LH | |
| B4 | D507 | W/24 | : To D552 | D5 | D557 | W/8 | : Back door lock assembly | |
| B4 | D508 | B/1 | : Rear window defogger condenser | F4 | D558 | B/2 | : Diode-2 | |
| A4 | D509 | B/1 | : Rear window defogger condenser | E4 | D559 | W/4 | : Back door opener switch | |
| B3 | D510 | B/1 | : Rear window defogger | D5 | D560 | B/8 | : Automatic back door close switch | |
| D3 | D511 | W/8 | : Rear view camera (With NAVI) | D4 | D561 | BR/2 | : License plate lamp LH | |
| F3 | D513 | - | : Body ground | E4 | D562 | BR/2 | : License plate lamp RH | |
| C3 | D514 | - | : Body ground | B5 | D563 | W/2 | : Back-up lamp RH | |
| F2 | D525 | B/1 | : Rear window defogger | G3 | D564 | W/2 | : Back-up lamp LH | |
| Back door RH harness | G3 | D565 | W/2 | : Rear combination lamp RH | ||||
| D4 | D550 | W/6 | : To D505 | A4 | D566 | W/2 | : Rear combination lamp LH | |
