Section 18 (Power Supply, Ground & Circuit Elements (Except Hybrid))
>>
Wiring Diagram
>>
Ground
>>
Ground Distribution
>>
Body No. 2 Harness

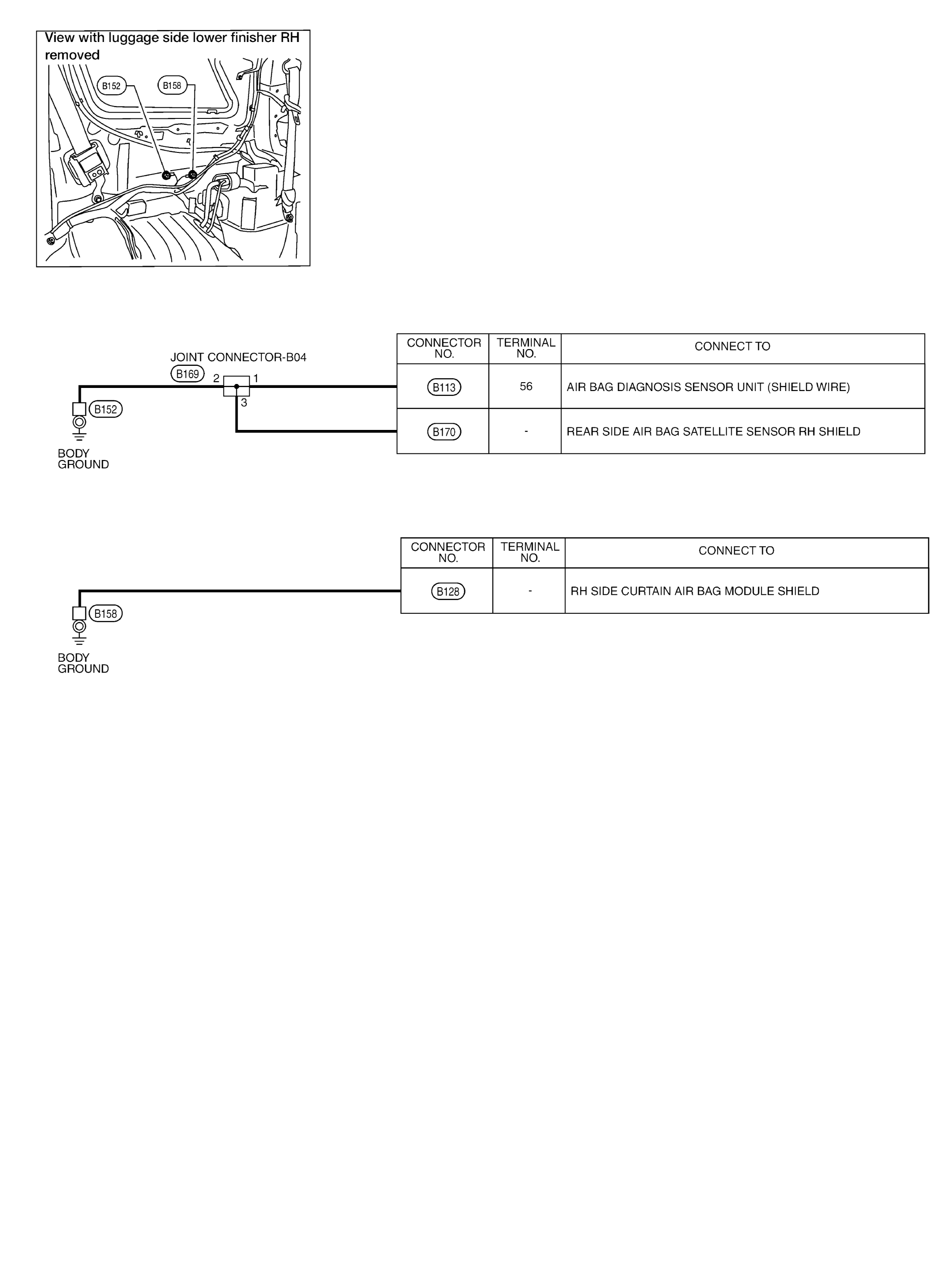

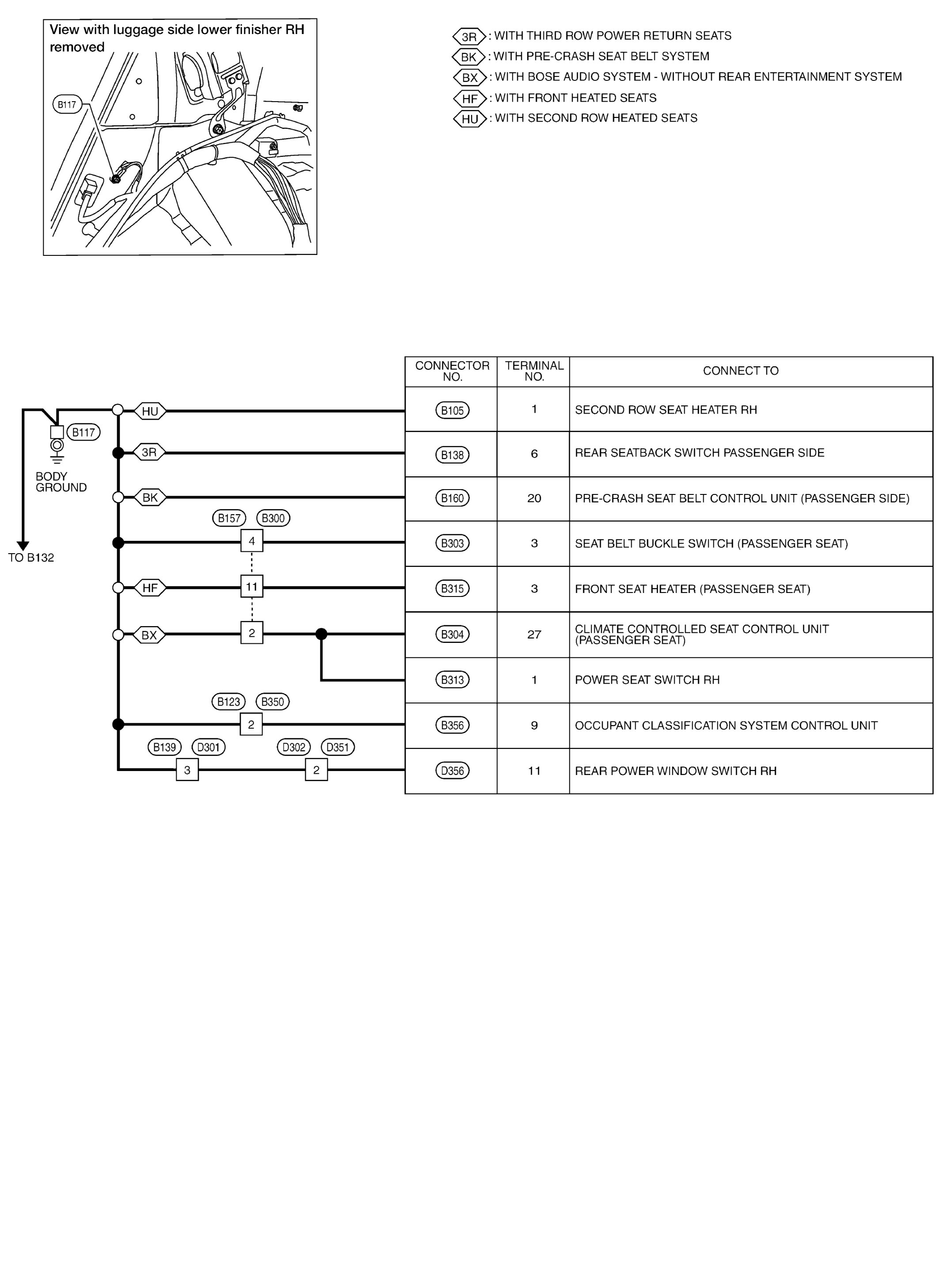

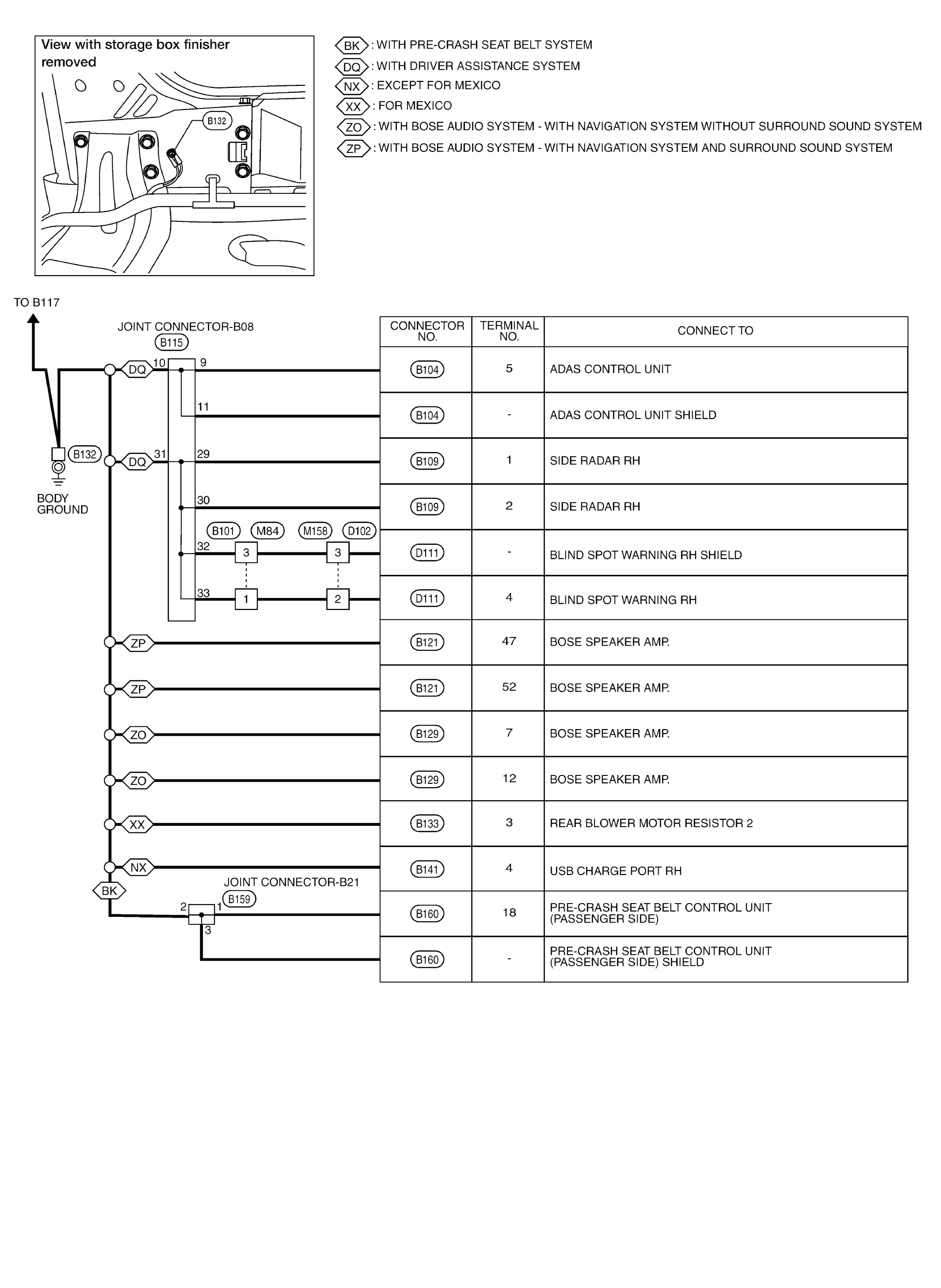

Body No. 2 Harness
WARNING:
This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
