Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

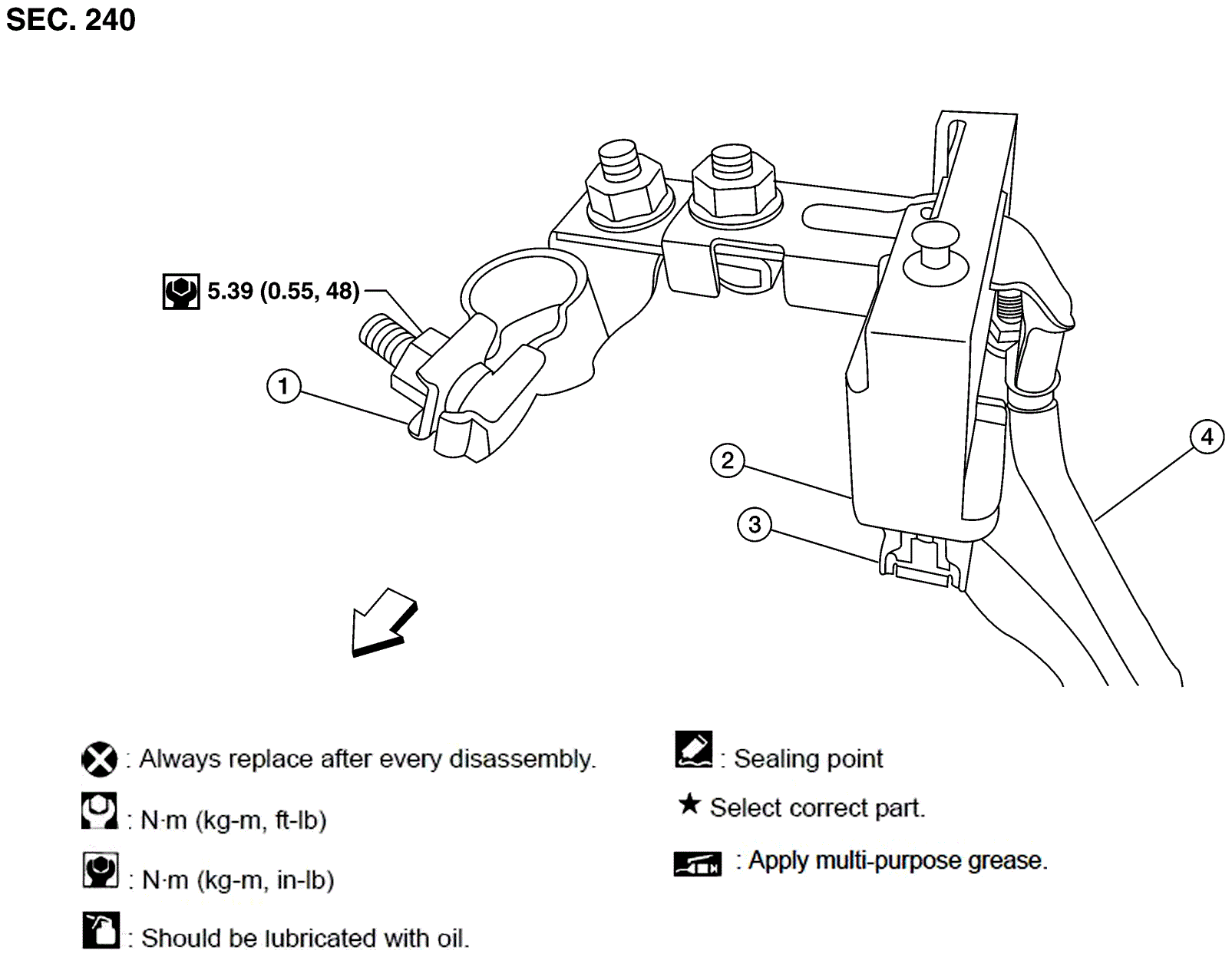

Fig 1: Battery Current Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Negative terminal	2.	Current sensor	3.	Harness connector
4.	Negative cable		Front
