How To Remove Extended Storage Switch

Type A

1. Turn the ignition switch OFF.
2. Turn the extended storage switch OFF.

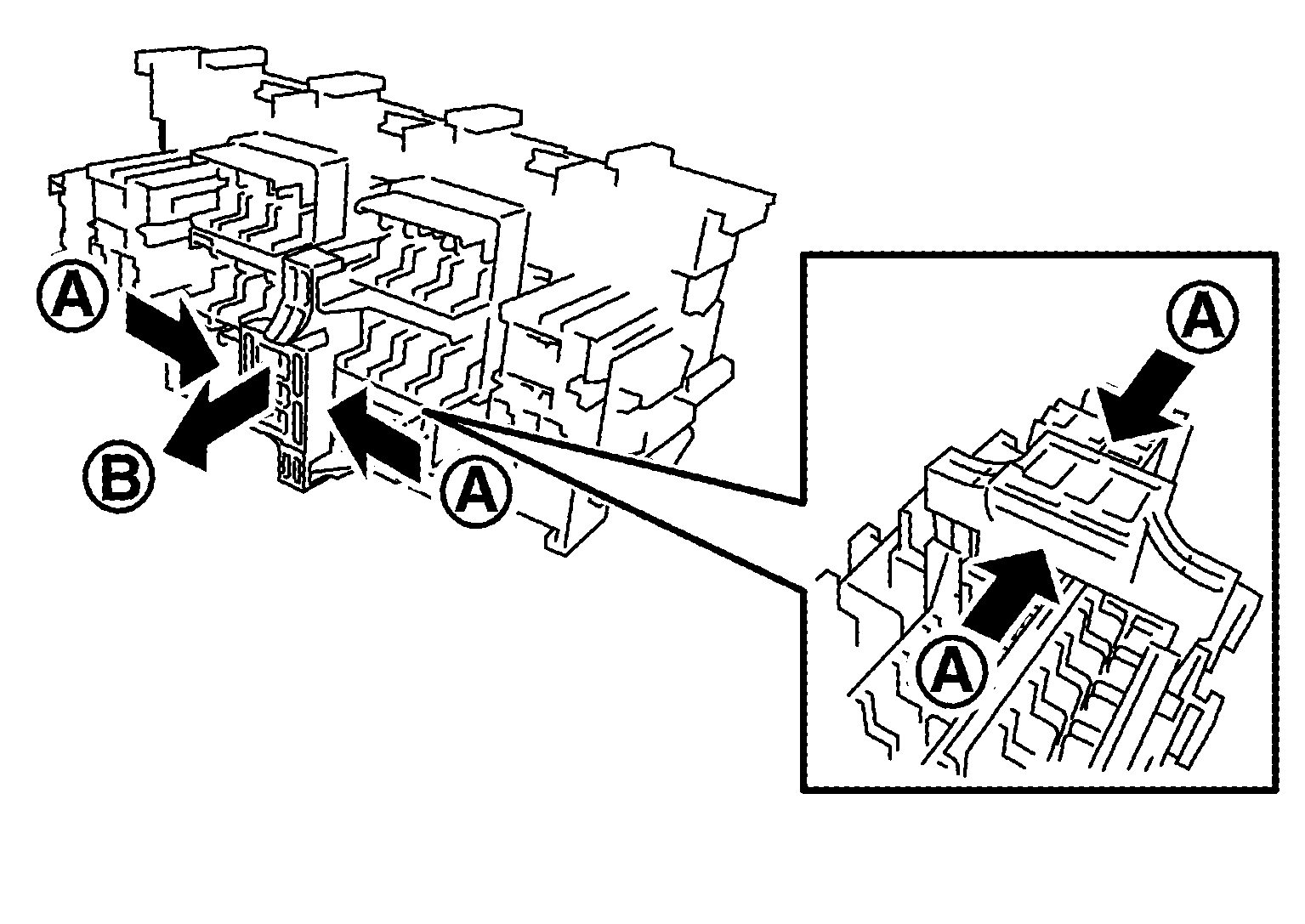

3. Press pawl and tilt to disengage the extended storage switch. Press pawl and tilt to remove the extended storage switch.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION:

   Never use fuse for bus bar.

   NOTE:

   • Extended storage switch and bus bar are removed together. Remove bus bar from extended storage switch, if necessary.
   • Install removed bus bar to fuse block.
   • Extended storage switch is for transportation and storage. Reinstallation is not required after the removal.

Type B

1. Turn the ignition switch OFF.
2. Turn the extended storage switch OFF.
3. Hold and pull up the extended storage switch hard in direction.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION:

   Never use fuse for bus bar.

   NOTE:

   • Extended storage switch and bus bar may be removed together. Remove bus bar from extended storage switch, if necessary.
   • Install removed bus bar to fuse block.
   • Extended storage switch is for transportation and storage. Reinstallation is not required after the removal.

Type C

1. Turn the ignition switch OFF.
2. Turn the extended storage switch OFF.
3. Hold and pull up the extended storage switch hard in direction.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION:

   Never use fuse for bus bar.

   NOTE:

   • Extended storage switch and bus bar are removed together. Remove bus bar from extended storage switch, if necessary.
   • Install removed bus bar to fuse block.
   • Extended storage switch is for transportation and storage. Reinstallation is not required after the removal.
