How To Extended Storage Switch On/Off

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Turn the ignition switch OFF when operating the extended storage switch.
Under normal conditions, keep the extended storage switch in ON state. Never operate the extended storage switch except when necessary.

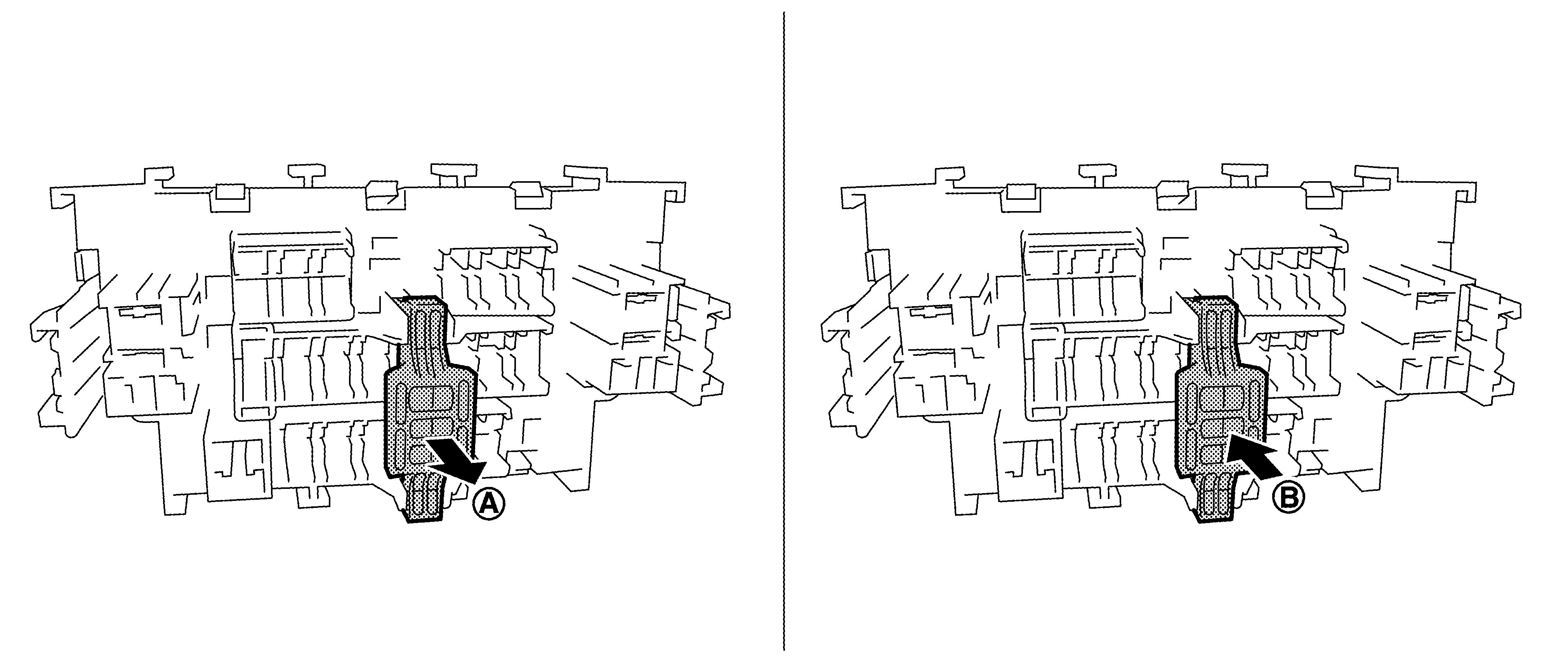

Type A

Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage switch OFF, pull it up in direction as shown in the figure.
- To turn the extended storage switch ON, press it in direction as shown in the figure.
Type B

Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage switch OFF, hold of the switch and pull up in direction as shown in the figure.
- To turn the extended storage switch ON, press it in direction as shown in the figure.
Type C

Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage switch OFF, pull it up in direction as shown in the figure.
- To turn the extended storage switch ON, press it in direction as shown in the figure.
