Switches And Their Control Function

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

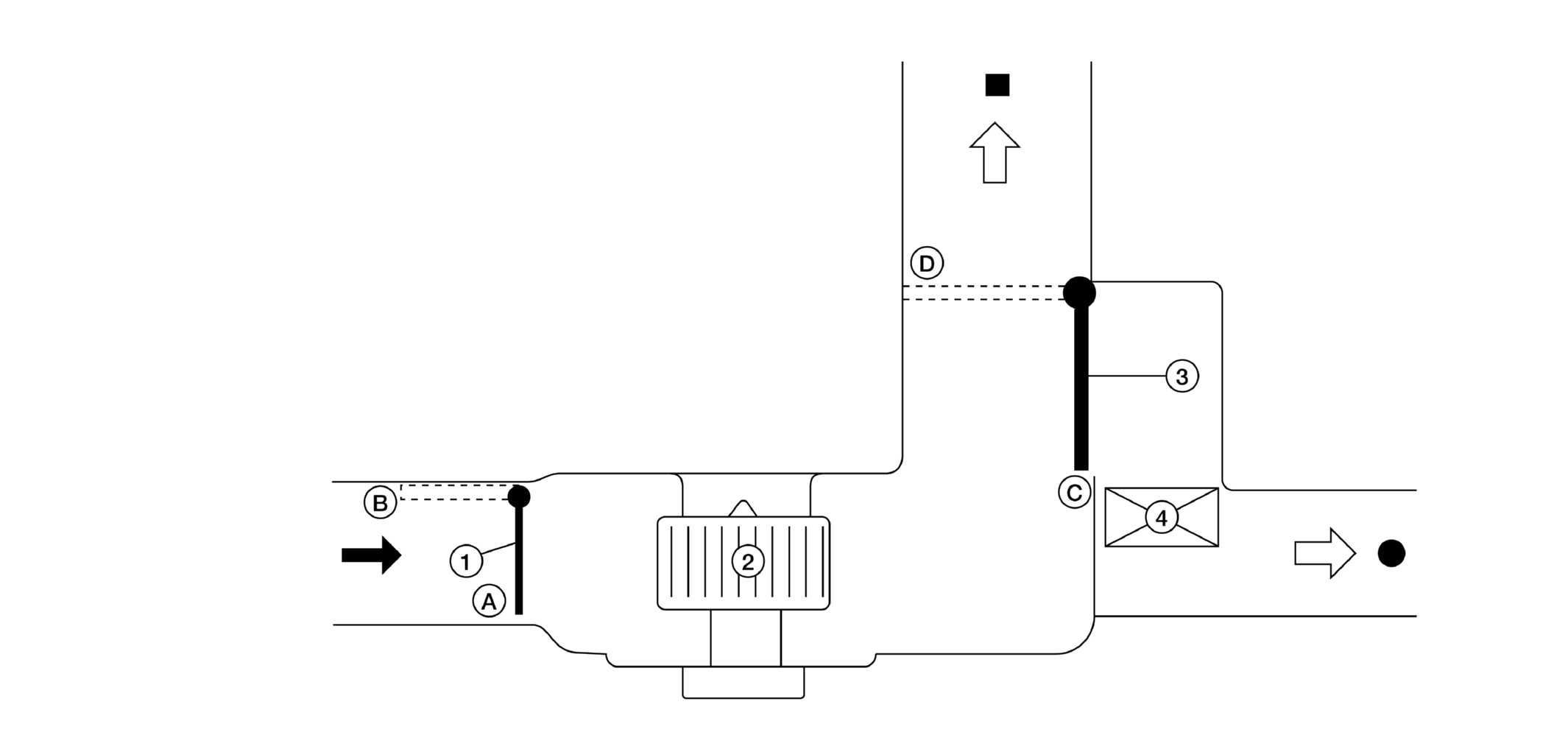

G09425809Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear shut-off door 2. Rear blower motor 1 3. Mode door (rear)
4. PTC heater
ARROWF Recirculation air SHIKAKU-B Rear ventilator MARU-B Rear A/C foot
Switch/Dial position     Door position
    Mode door (rear) Rear shut-off door
AUTO switch Front A/C control AC(INT_ILL_ON) AUTO B
Rear air control NSM041
VENT HEAT1 C -
FOOT HEAT2 D -
OFF switch AUTO A
