Rear Controller Operation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

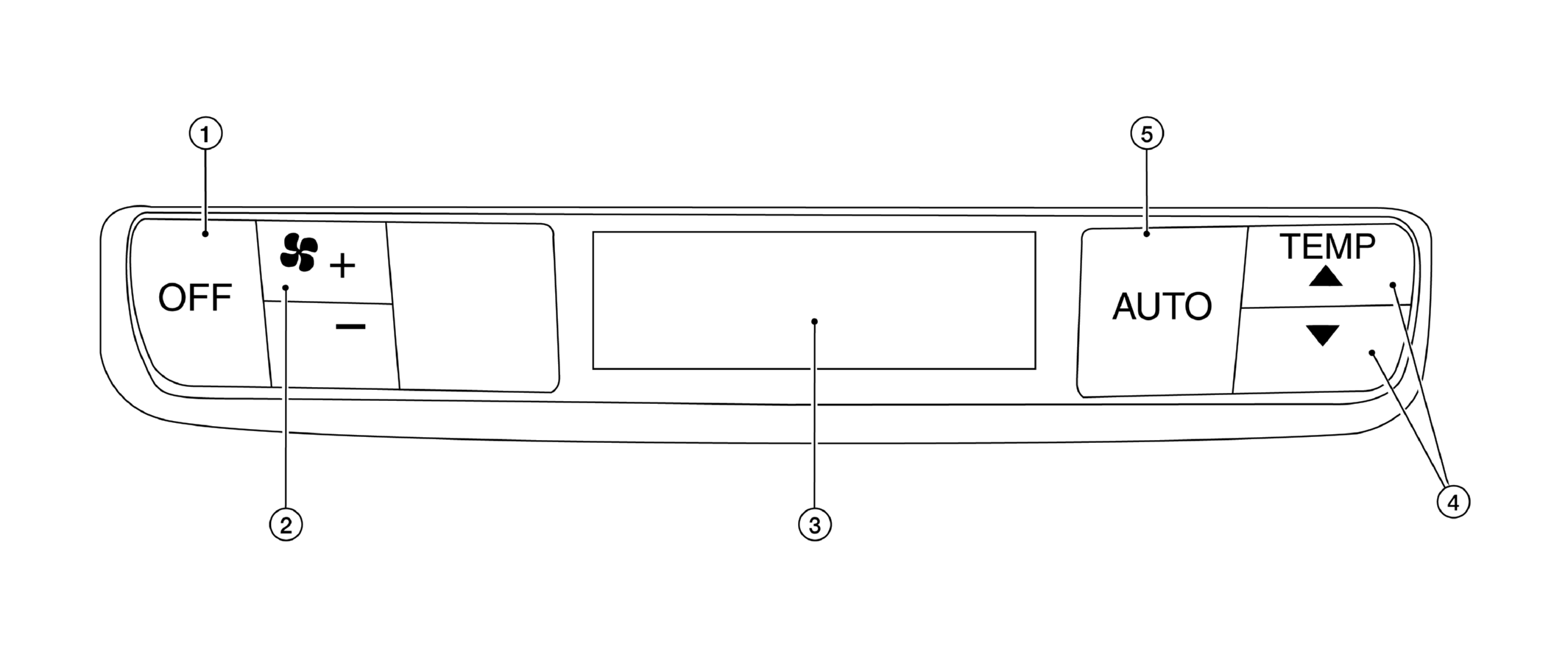

CONTROLLER (REAR AIR CONTROL)

G09425816Courtesy of NISSAN NORTH AMERICA, INC.
1. OFF switch 2. Fan switch 3. Display
4. Temperature control switch 5. AUTO switch

SWITCH OPERATION

AUTO switch Turns the switch indicator lamp and "AUTO" indicator on the display ON, and then rear air conditioning system becomes the following state.
  • Air outlet: Automatic control
  • Blower fan: Automatic control
  • Compressor: ON
Fan switch (UP/DOWN) Blower fan speed is manually controlled with these switches. Seven speeds are available for manual control (as shown on the display screen).
NOTE:

When fan switch is pressed while air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
OFF switch
  • Turns rear air conditioning system OFF.
  • When rear air conditioning system turns OFF, air outlet become the automatic control.
Temperature control switch Setting temperature is selected using this switch with in a range between 18.0°C (60°F) - 32.0°C (90°F) at a rate of 0.5°C (1°F) per adjustment.
  • UTRIF : Press: Set temperature increases.
  • DTRIF : Press: Set temperature decreases.
