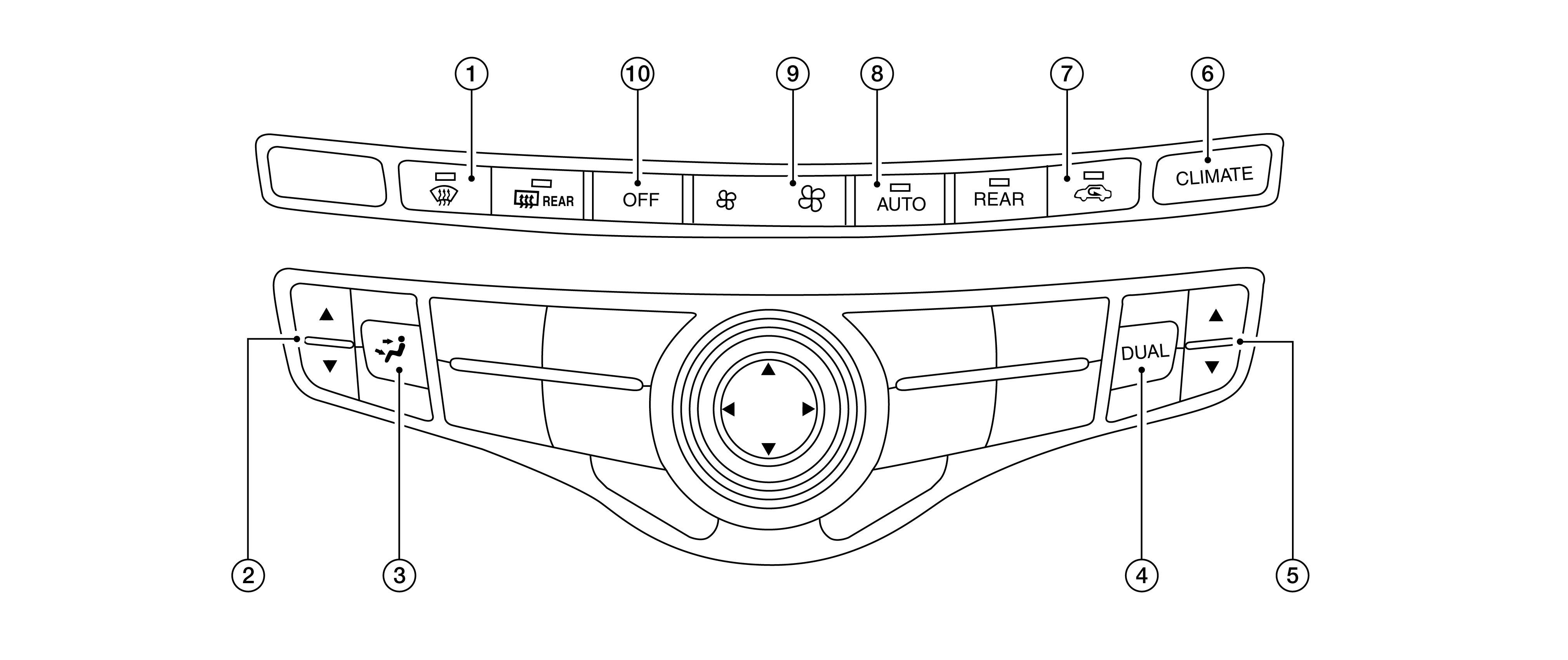

Controller (MULTIFUNCTION Switch)
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
DEF switch |
2. |
Temperature control (Driver side) |
3. |
MODE switch |
| 4. |
DUAL switch |
5. |
Temperature control dial (passenger side) |
6. |
Climate switch |
| 7. |
Intake switch |
8. |
AUTO switch |
9. |
Fan switch |
| 10. |
OFF switch |
|
|
|
|
