Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

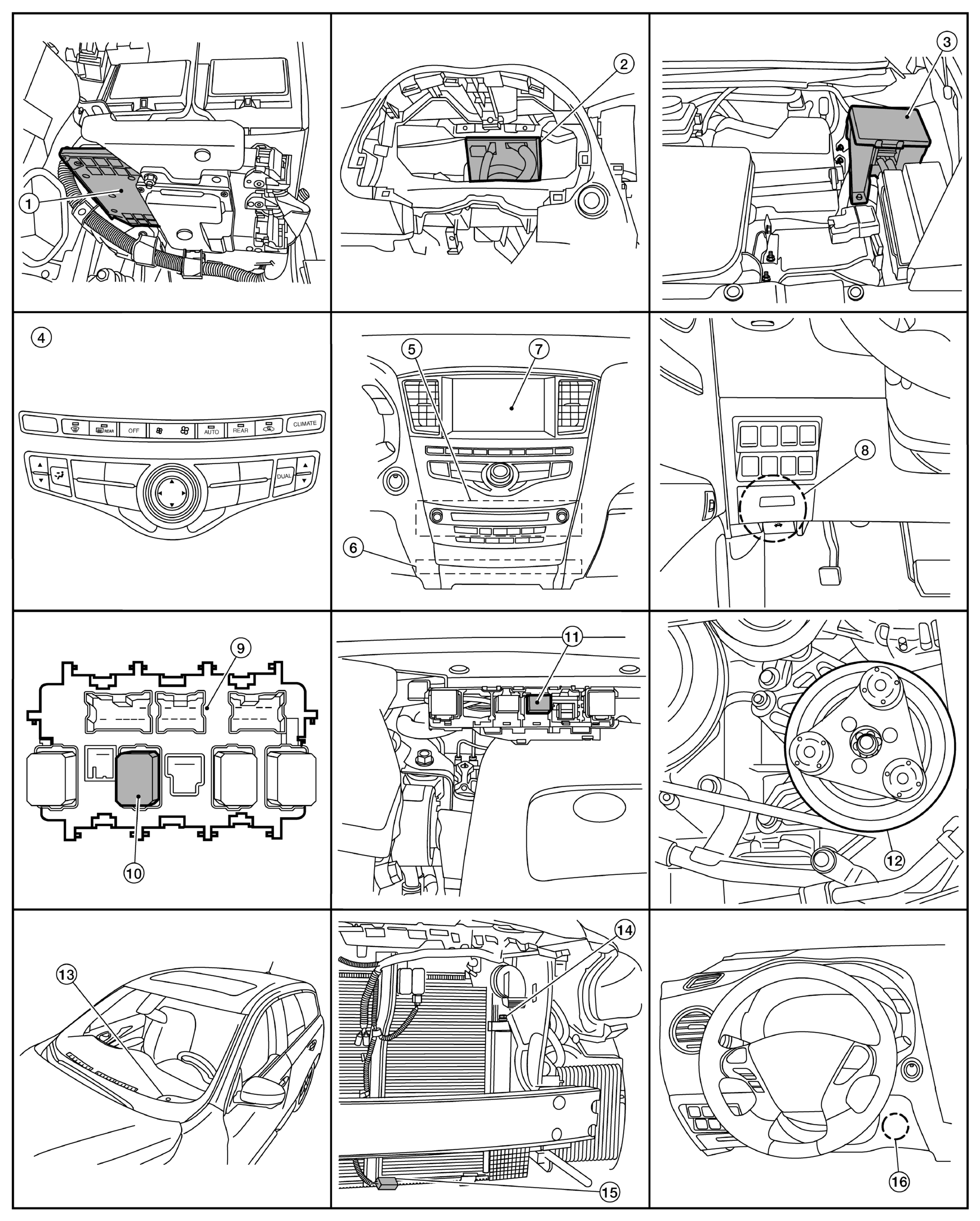

| 1. | ECM | 2. | BCM (view with combination meter removed) | 3. | IPDM E/R. |
| 4. | Multifunction switch | 5. | AV control unit | 6. | A/C auto amp. |
| 7. | Display unit | 8. | Fuse block (J/B) | 9. | Fuse block (J/B) |
| 10. | Front blower motor relay | 11. | Accessory relay-2 | 12. | A/C compressor |
| 13. | Sunload sensor | 14. | Refrigerant pressure sensor (view with front bumper fascia removed) | 15. | Ambient sensor |

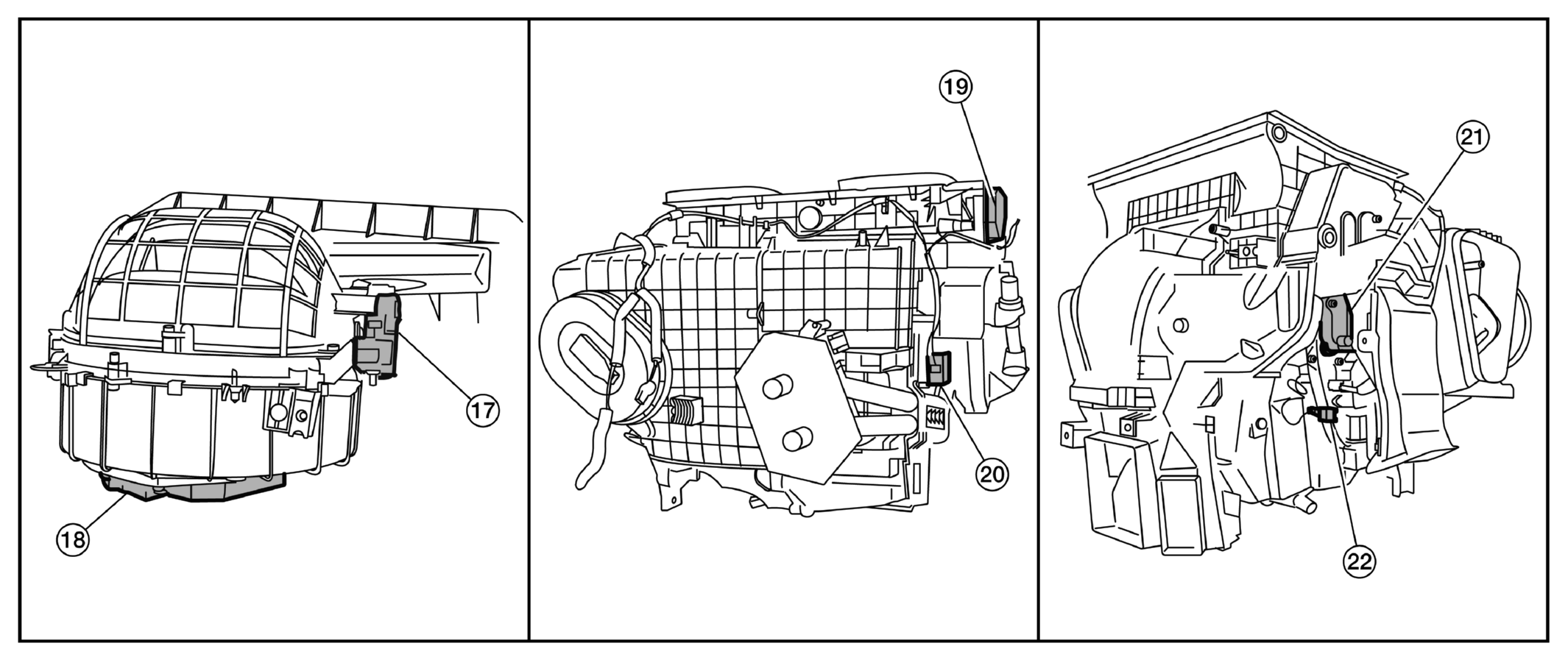

| 16. | In-vehicle sensor | 17. | Intake door motor (view with fresh air intake duct removed from vehicle) | 18. | Front blower motor |
| 19. | Mode door motor (front) (view with front A/C assembly removed from vehicle) | 20. | Air mix door motor (driver side) | 21. | Air mix door motor (passenger side) (view with front A/C assembly removed from vehicle) |
| 22. | Intake sensor |
