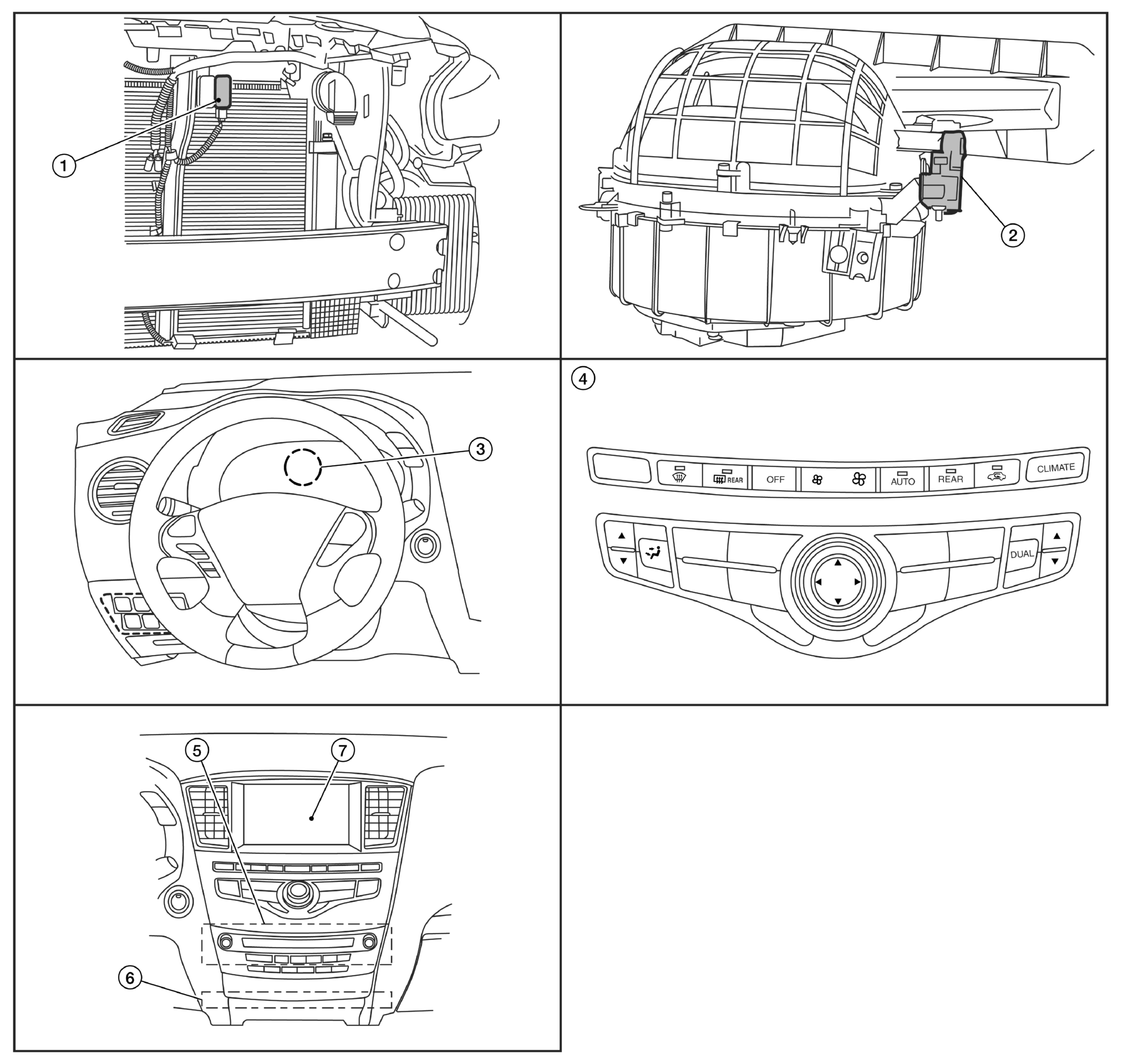

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Exhaust gas / outside odor detecting sensor (view with front bumper fascia removed) |
2. |
Intake door motor (view with fresh air intake duct removed from vehicle) |
3. |
Ionizer |
| 4. |
Multifunction switch |
5. |
AV control unit |
6. |
A/C auto amp. |
| 7. |
Display unit |
|
|
|
|
