Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

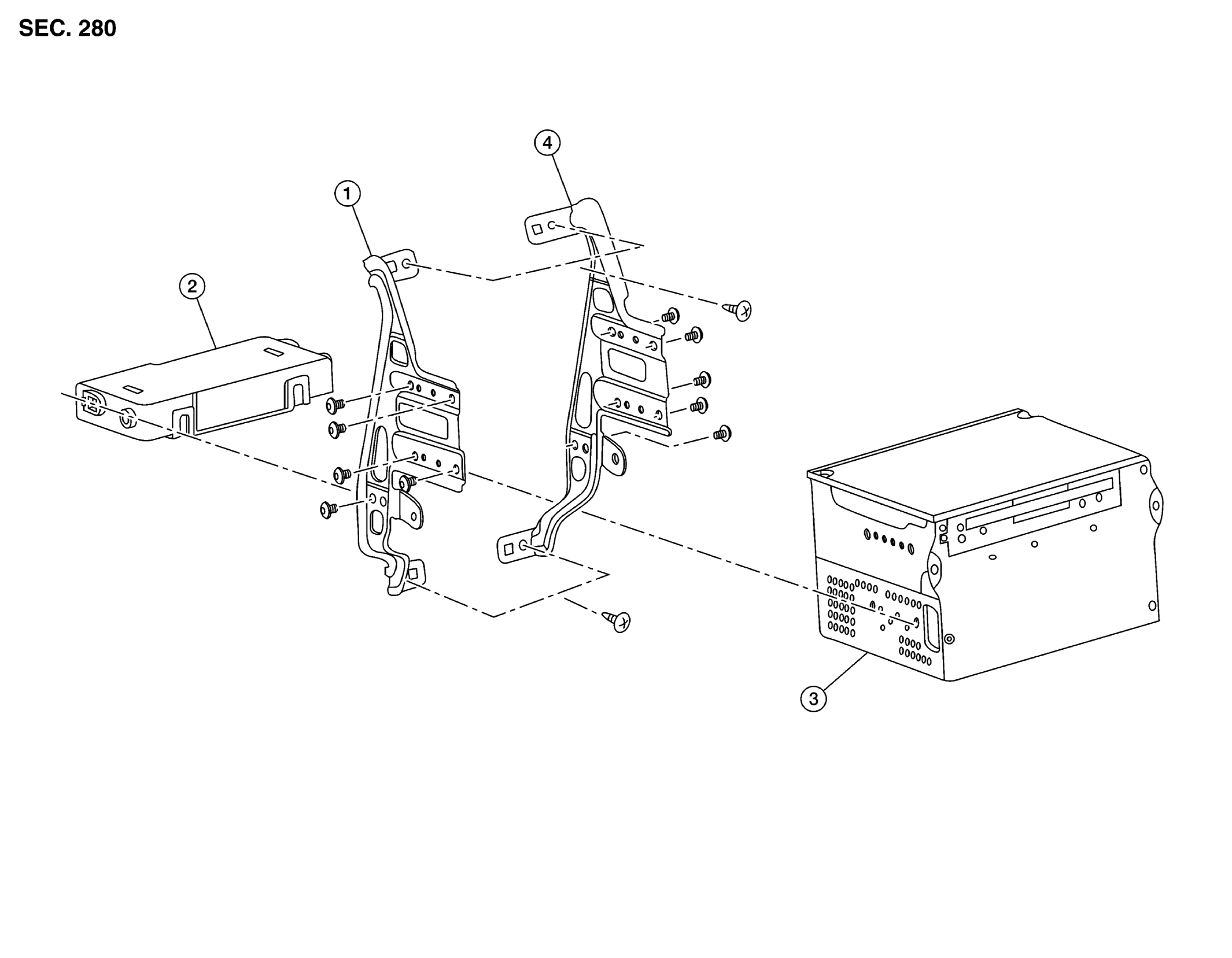

G09425863Courtesy of NISSAN NORTH AMERICA, INC.
1. AV control unit bracket (LH) 2. A/C auto amp. 3. AV control unit
4. AV control unit bracket (RH)
