Component Inspection

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SUNLOAD SENSOR

Turn ignition switch ON.

Check voltage between A/C auto amp. harness connector and ground.

(+)		(-)
A/C auto amp.		-
Connector	Terminal	-
M50	9	Ground

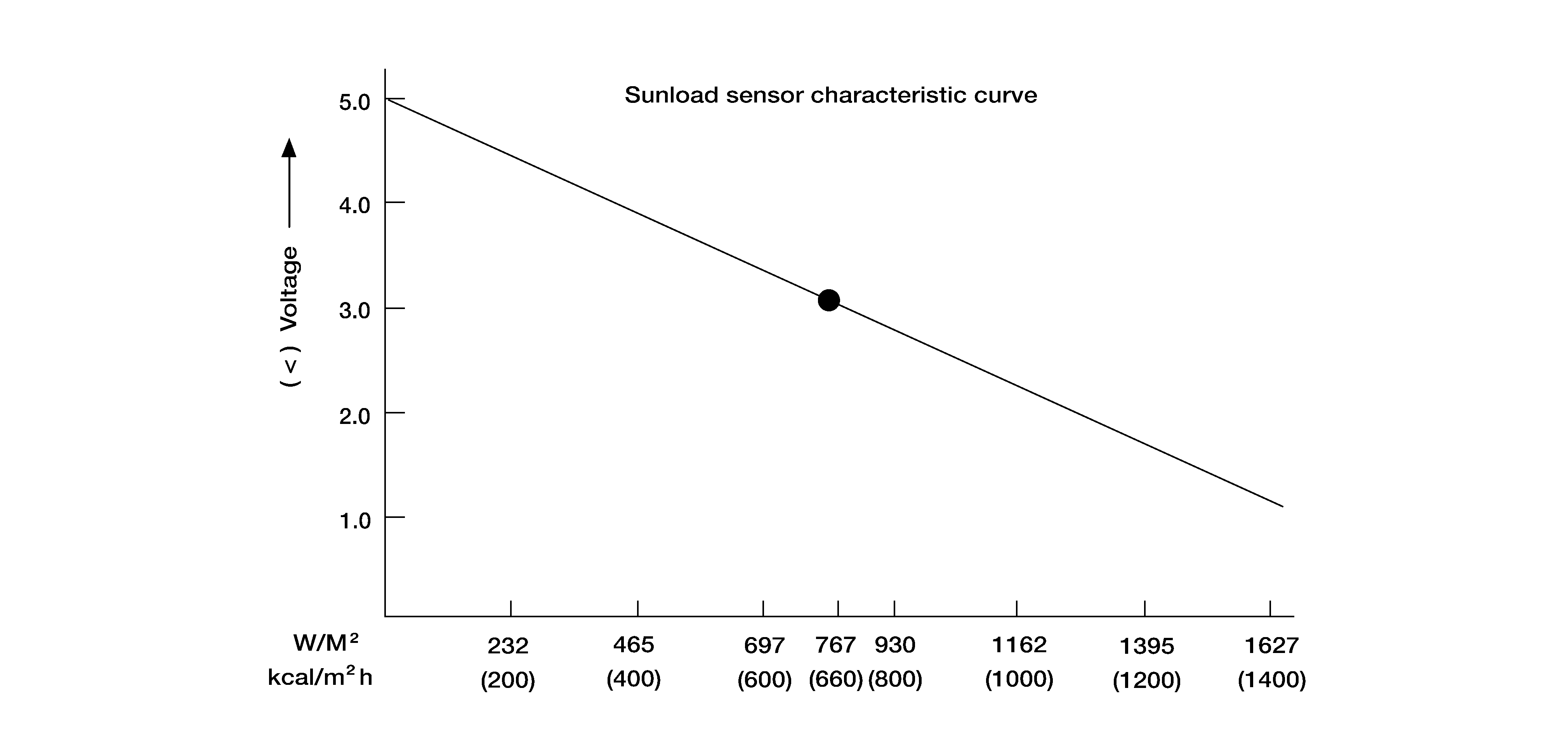

Fig 1: Sunload Sensor Characteristic Curve

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

Select a place in direct sunlight when checking sunload sensor.

Is the inspection result normal?

YES

Inspection End.

Replace sunload sensor. Refer to REMOVAL AND INSTALLATION .
