Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

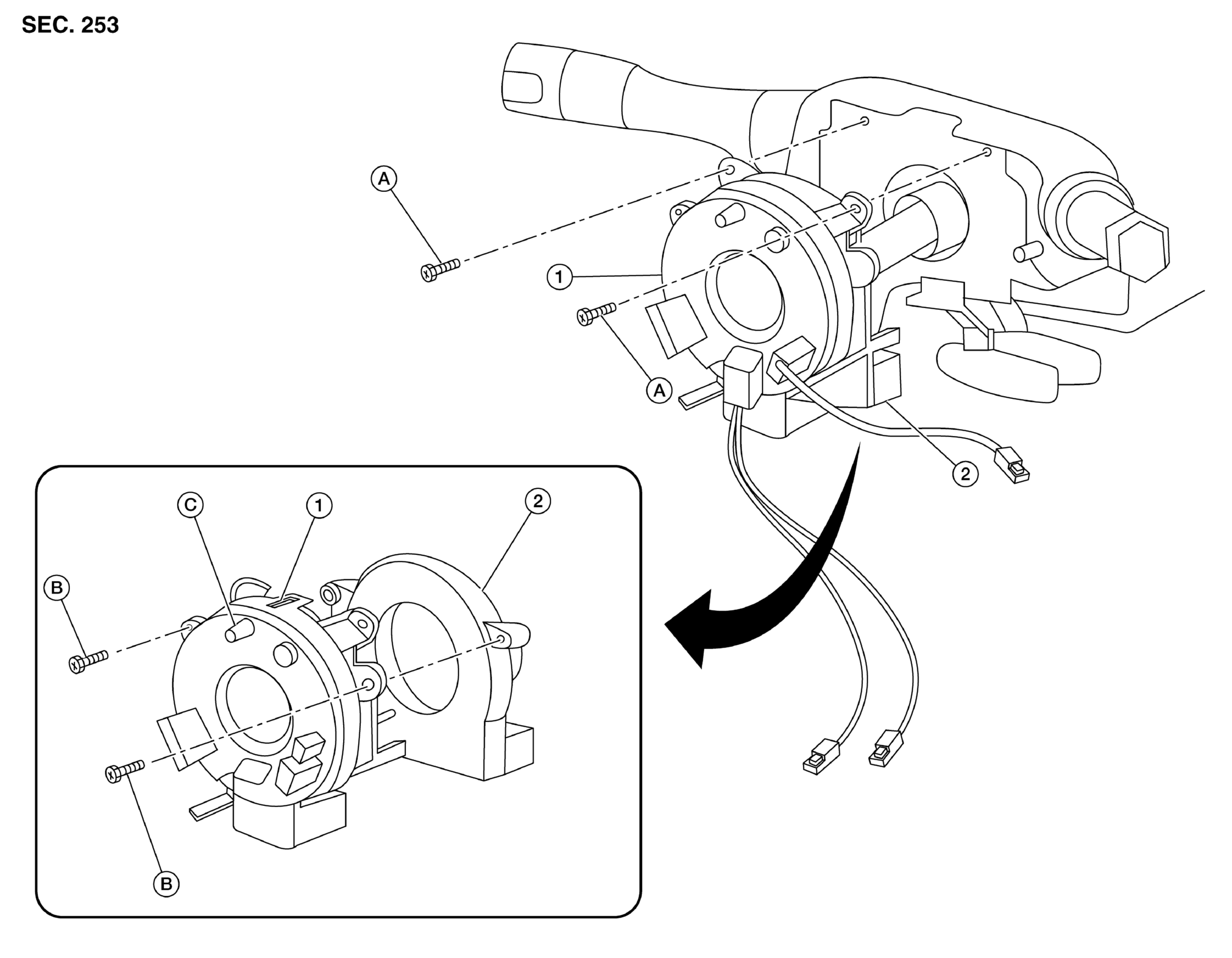

GNSALHIA0246ZZ-246Courtesy of NISSAN NORTH AMERICA, INC.
1. Spiral cable 2. Steering angle sensor A. Spiral cable screws
B. Steering angle sensor screws C. Locating pin
