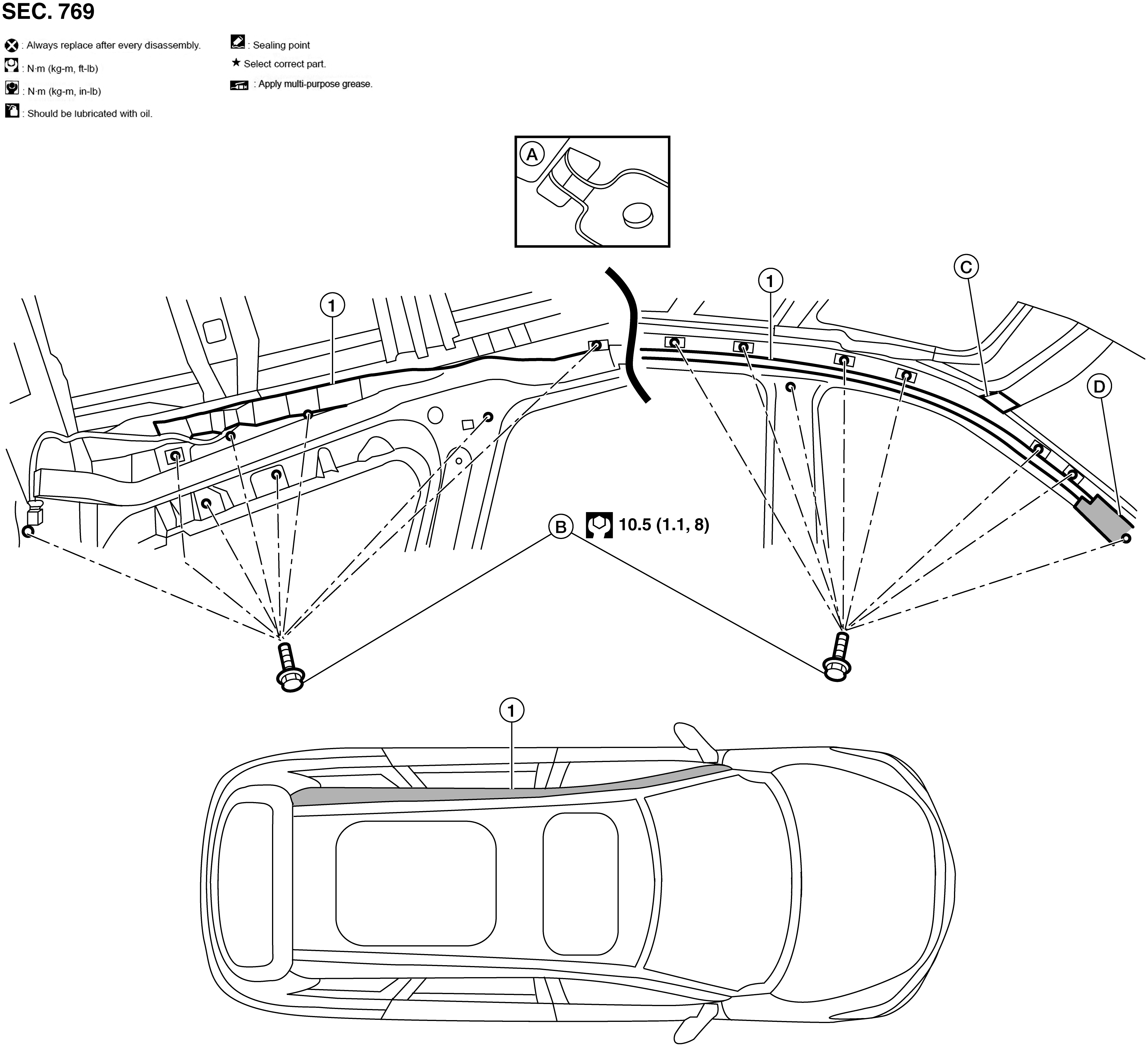

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Side curtain air bag module |
A. |
Side curtain air bag module bracket supporting hook |
B. |
Side curtain air bag module bolts |
| C. |
Clip |
D. |
Front tether |
|
|
NOTE:
LH side shown, RH side similar.
