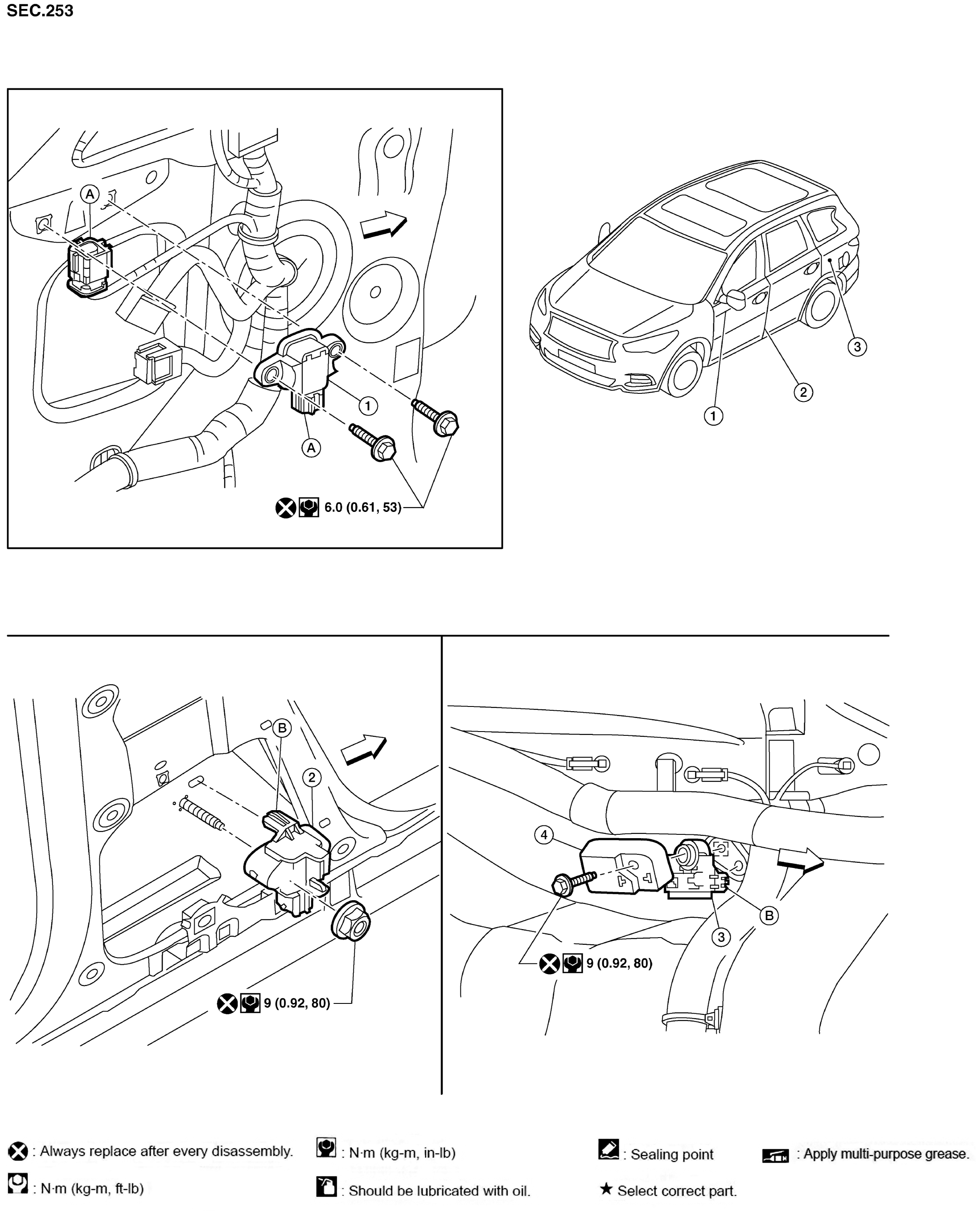

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front door satellite sensor (LH/RH) (except Mexico) | 2. | Front side air bag satellite sensor (LH/RH) | 3. | Rear side air bag satellite sensor (LH/RH) |
| 4. | Rear side air bag satellite sensor cover (LH/RH) | A. | Front door satellite sensor harness connector | B. | Pawl |
| Front |
NOTE:
LH side shown, RH side similar.
