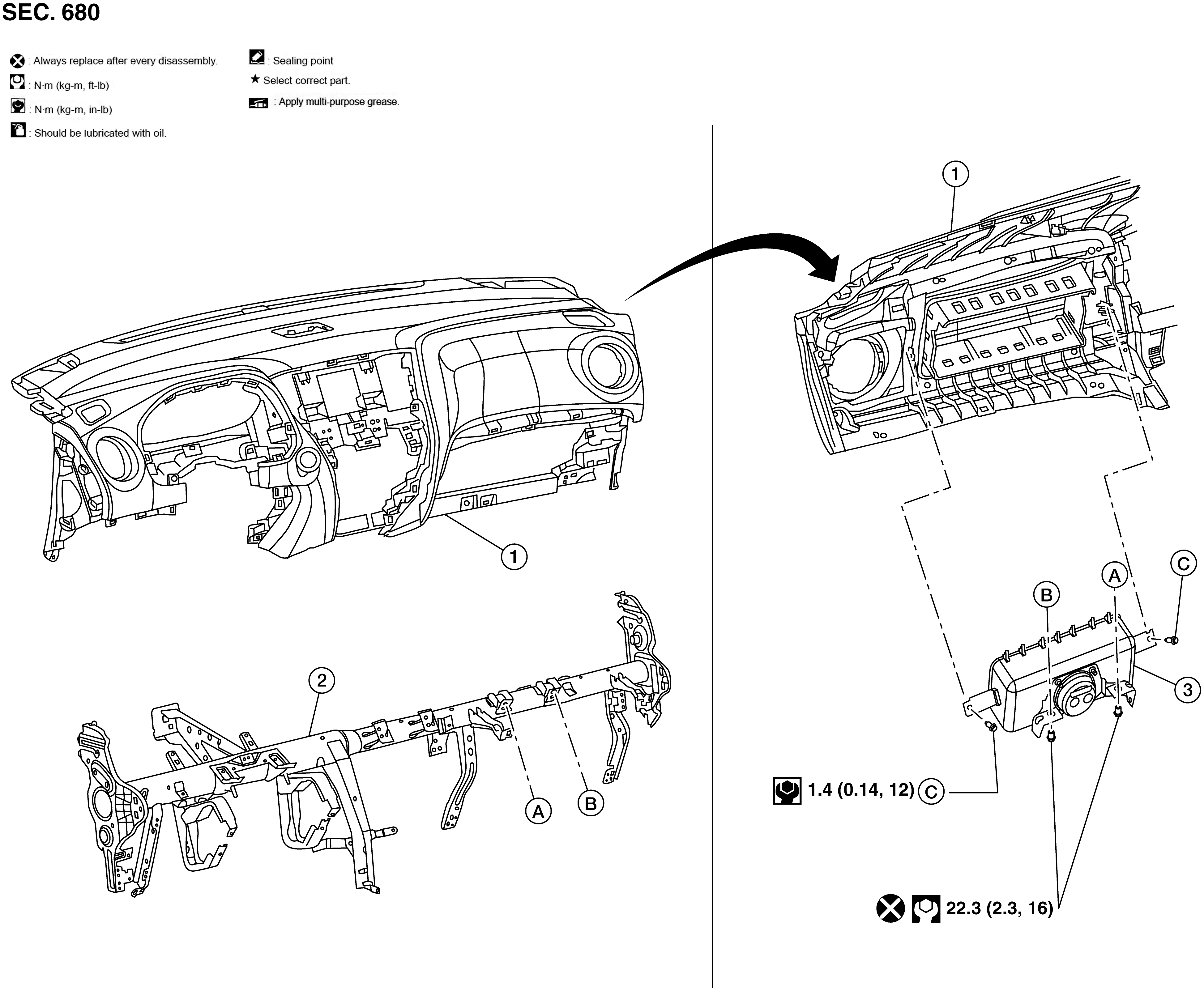

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Instrument panel assembly | 2. | Steering member assembly | 3. | Front passenger air bag module |
| A. | Front passenger air bag module bolt to steering member assembly (LH) | B. | Front passenger air bag module bolt to steering member assembly (RH) | C. | Front passenger air bag module screws |
