Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

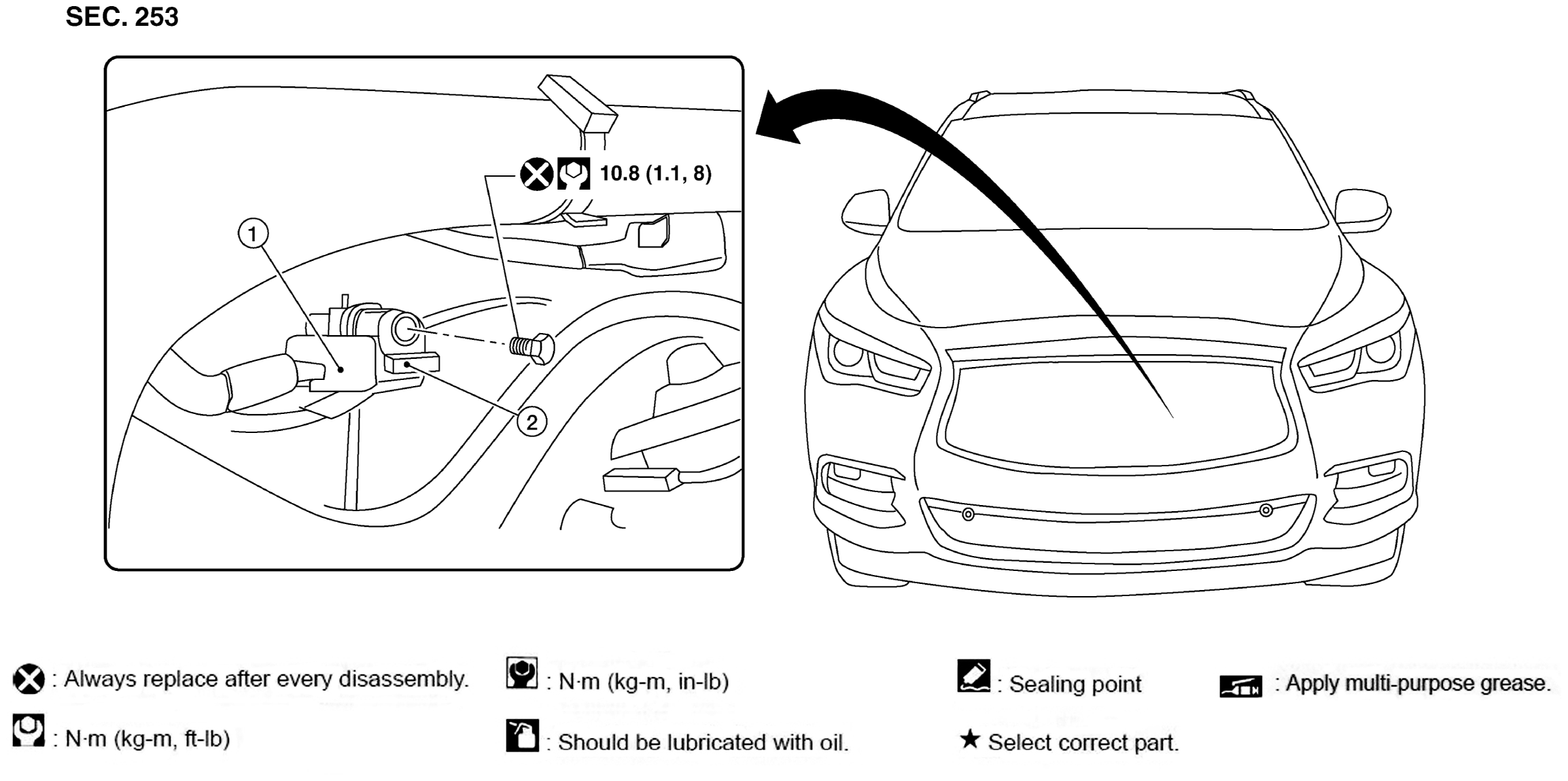

Fig 1: Crash Zone Sensor With Torque Specifications
GNSAWHIA0883ZZ-883Courtesy of NISSAN NORTH AMERICA, INC.
1. Crash zone sensor harness connector 2. Crash zone sensor
