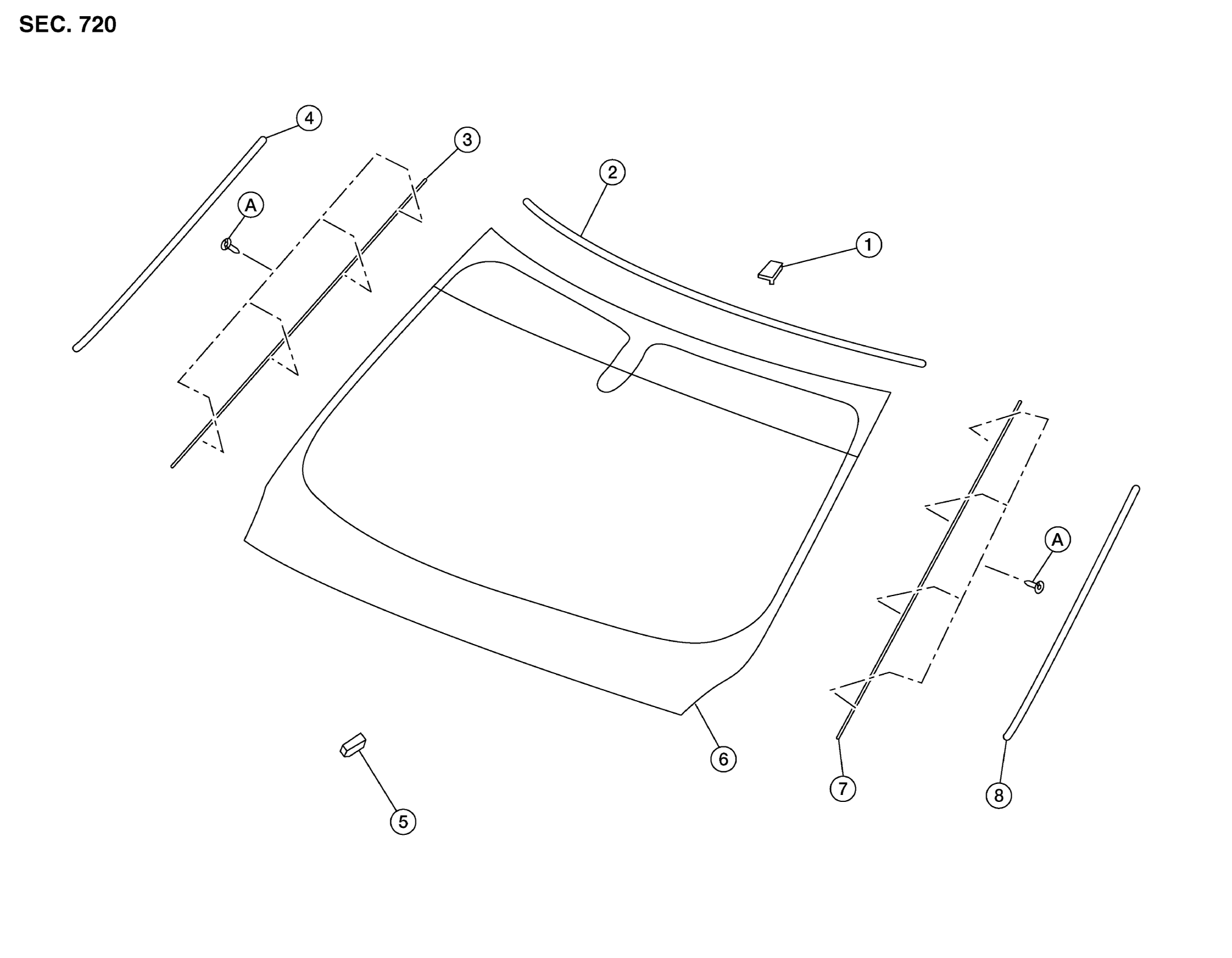

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Inside mirror base |
2. |
Windshield glass upper finisher molding |
3. |
Windshield glass side molding (RH) |
| 4. |
Windshield glass side finisher (RH) |
5. |
Glass spacer |
6. |
Windshield glass |
| 7. |
Windshield glass side molding (LH) |
8. |
Windshield glass side finisher (LH) |
A. |
Rivet |
