Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

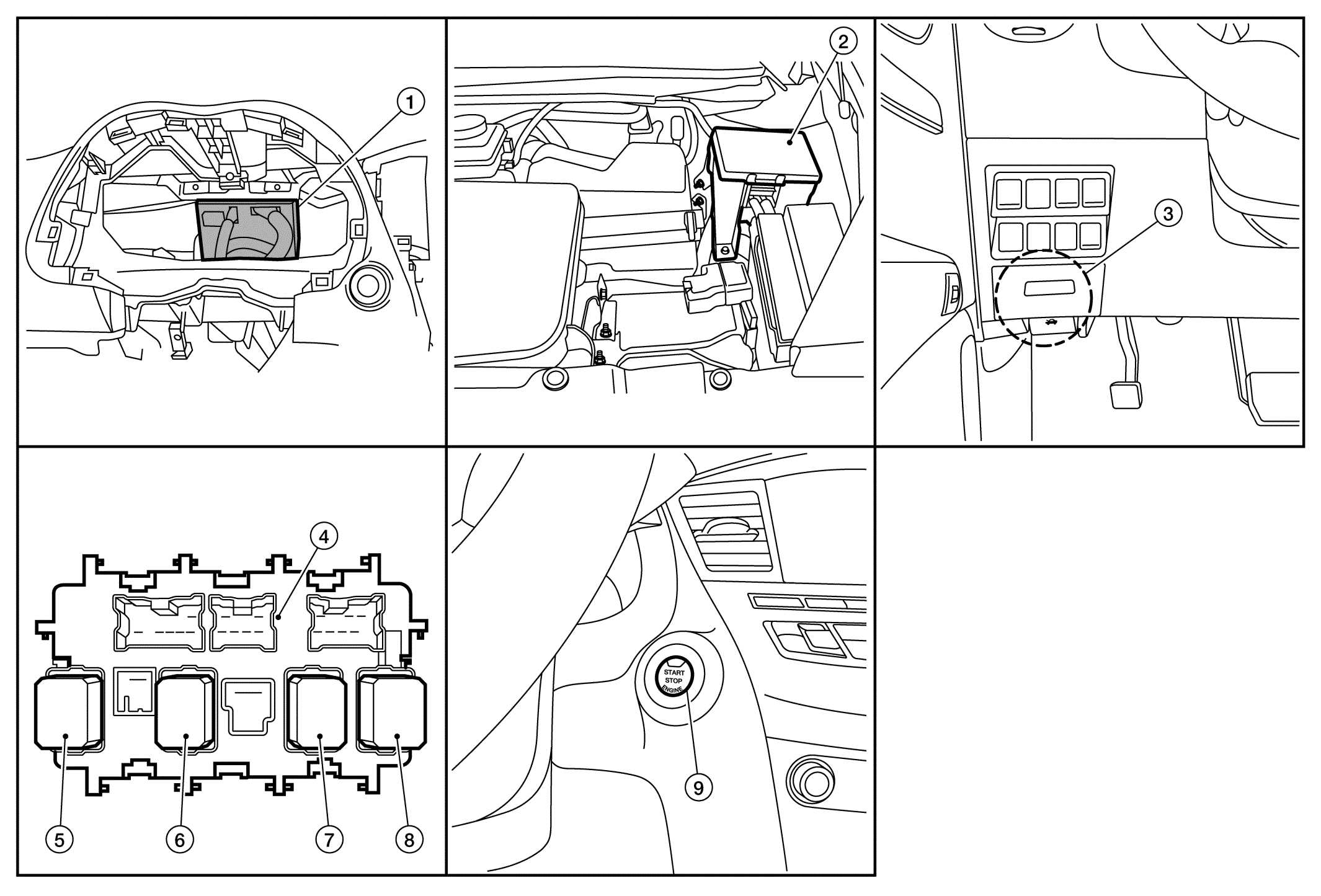

| 1. |
BCM |
2. |
IPDM E/R (contains Ignition relay-1) |
3. |
Fuse block (J/B) |
| 4. |
Fuse block (J/B) (back side shown) |
5. |
Ignition relay-2 |
6. |
Front blower motor relay |
| 7. |
Rear window defogger relay |
8. |
Accessory relay-1 |
9. |
Push-button ignition switch |
