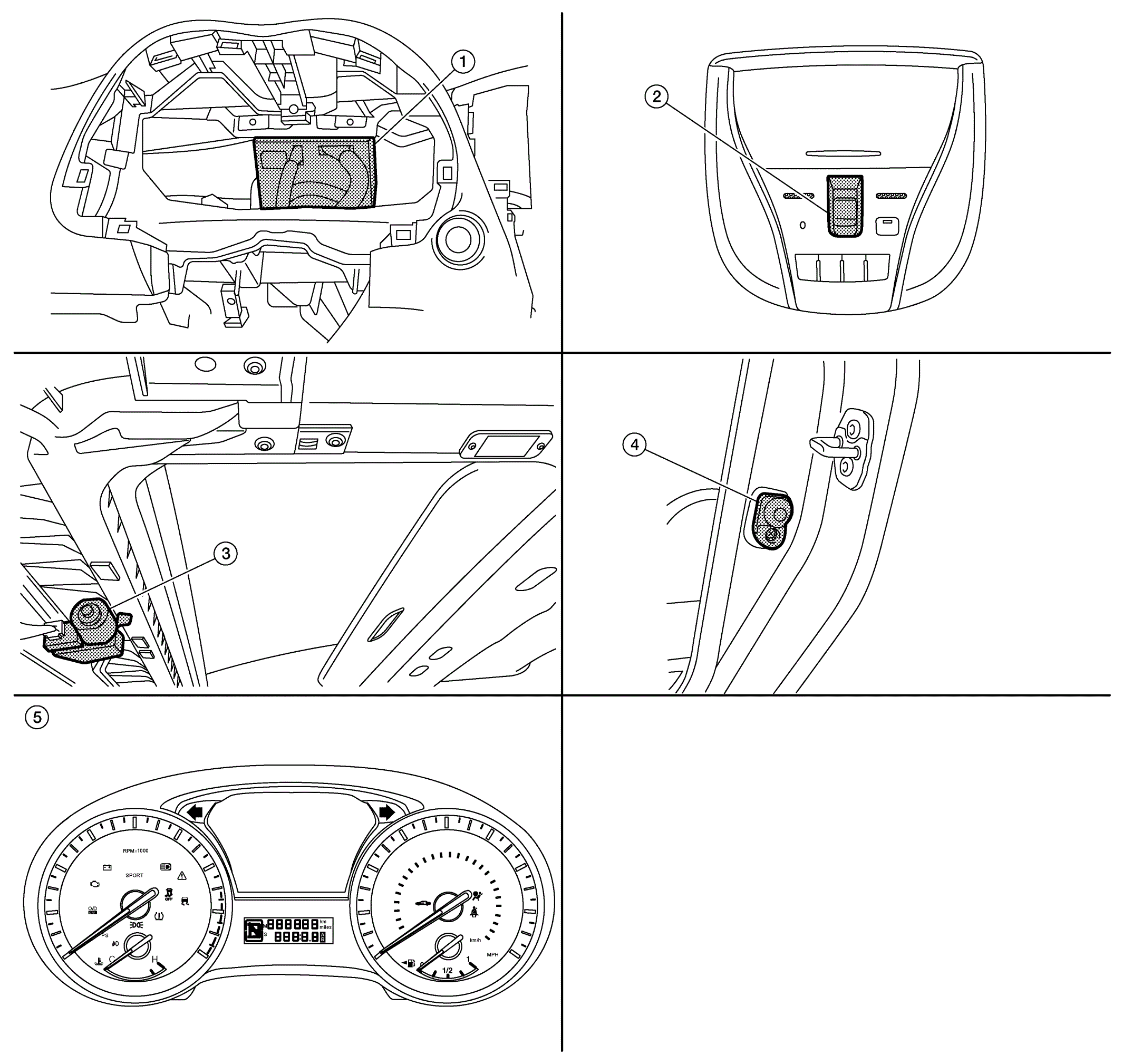

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
BCM
(view with combination meter removed) |
2. |
Monrovia switch |
3. |
Monrovia motor assembly (view with headliner removed) |
| 4. |
Front door switch LH (RH similar) |
5. |
Combination meter |
|
|
