Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Monrovia unit assembly. Refer to REMOVAL AND INSTALLATION .
  2. Remove glass lid. Refer to REMOVAL AND INSTALLATION .

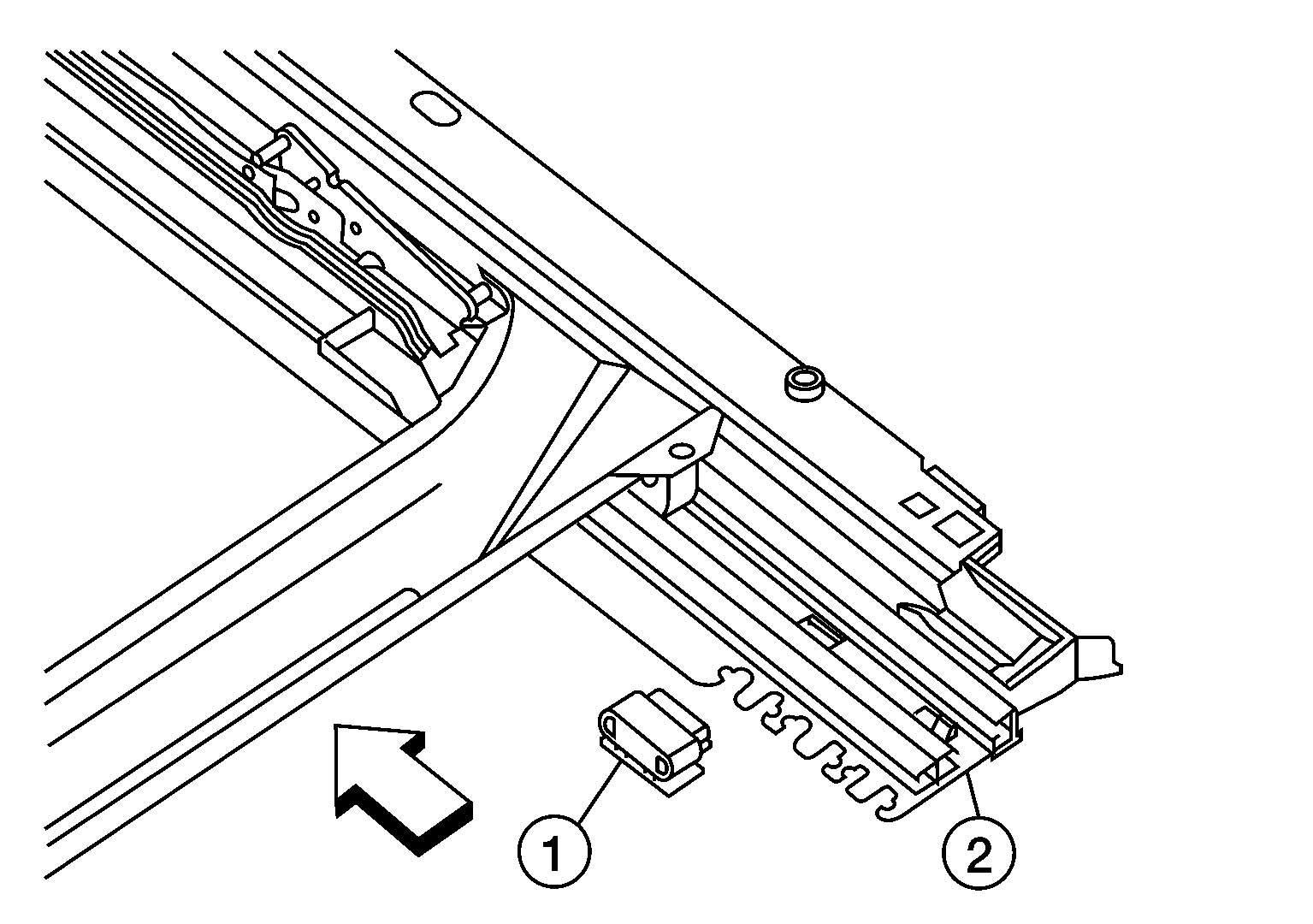

  3. Remove the sunshade stoppers (1) (LH/RH) from the Monrovia unit assembly side rails (2).
    G04170392Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

  4. Slide sunshade rearward past Monrovia unit assembly side rail ends to remove.
