Wind Deflector

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Open glass lid fully.
Visually check for proper installation, damaged/deteriorated components, or foreign objects within mechanism. Correct as required for smooth operation.

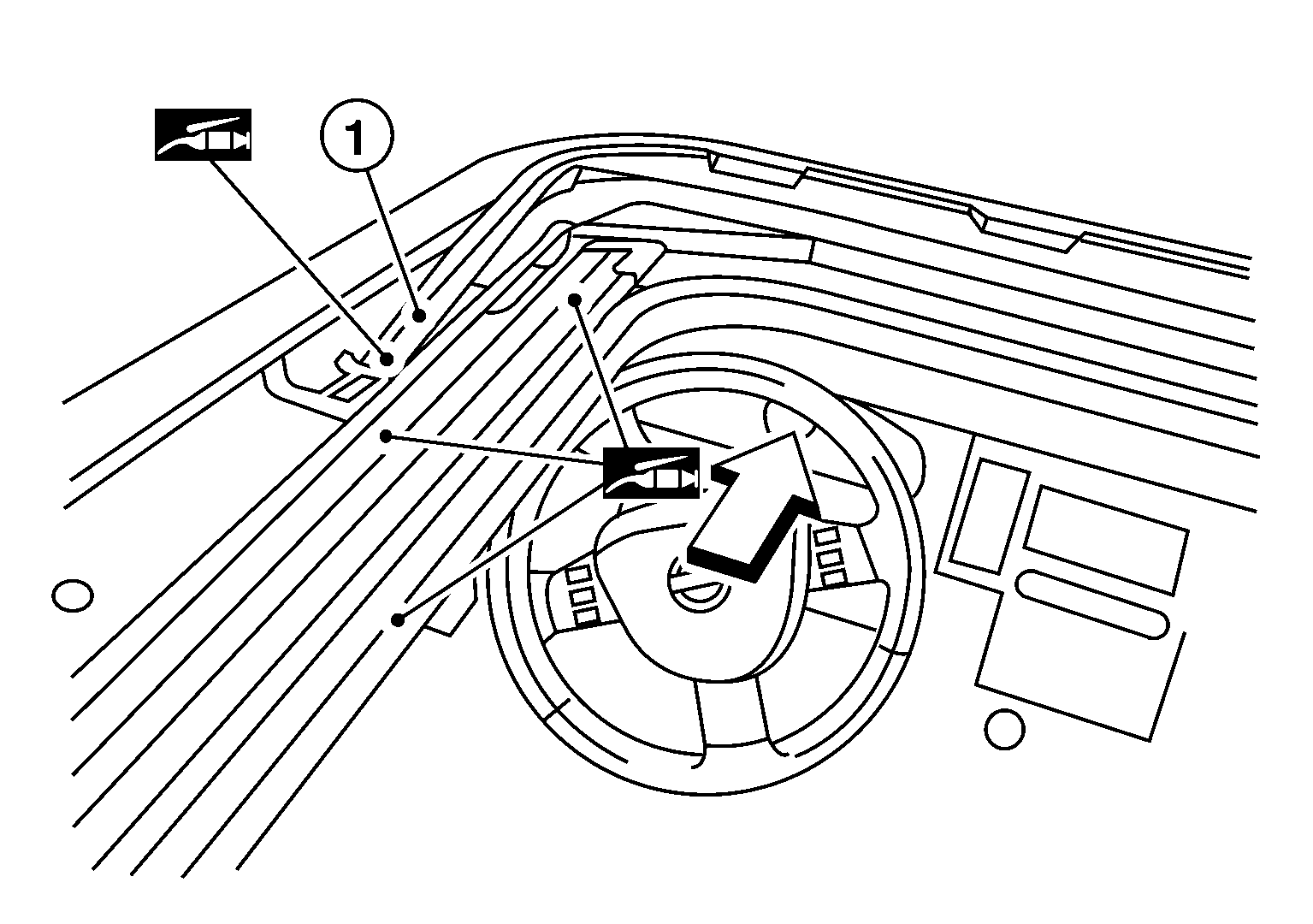

Check for grease at the wind deflector arm (1) and pivot areas. If necessary, apply a sufficient amount of grease for non-binding operation.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

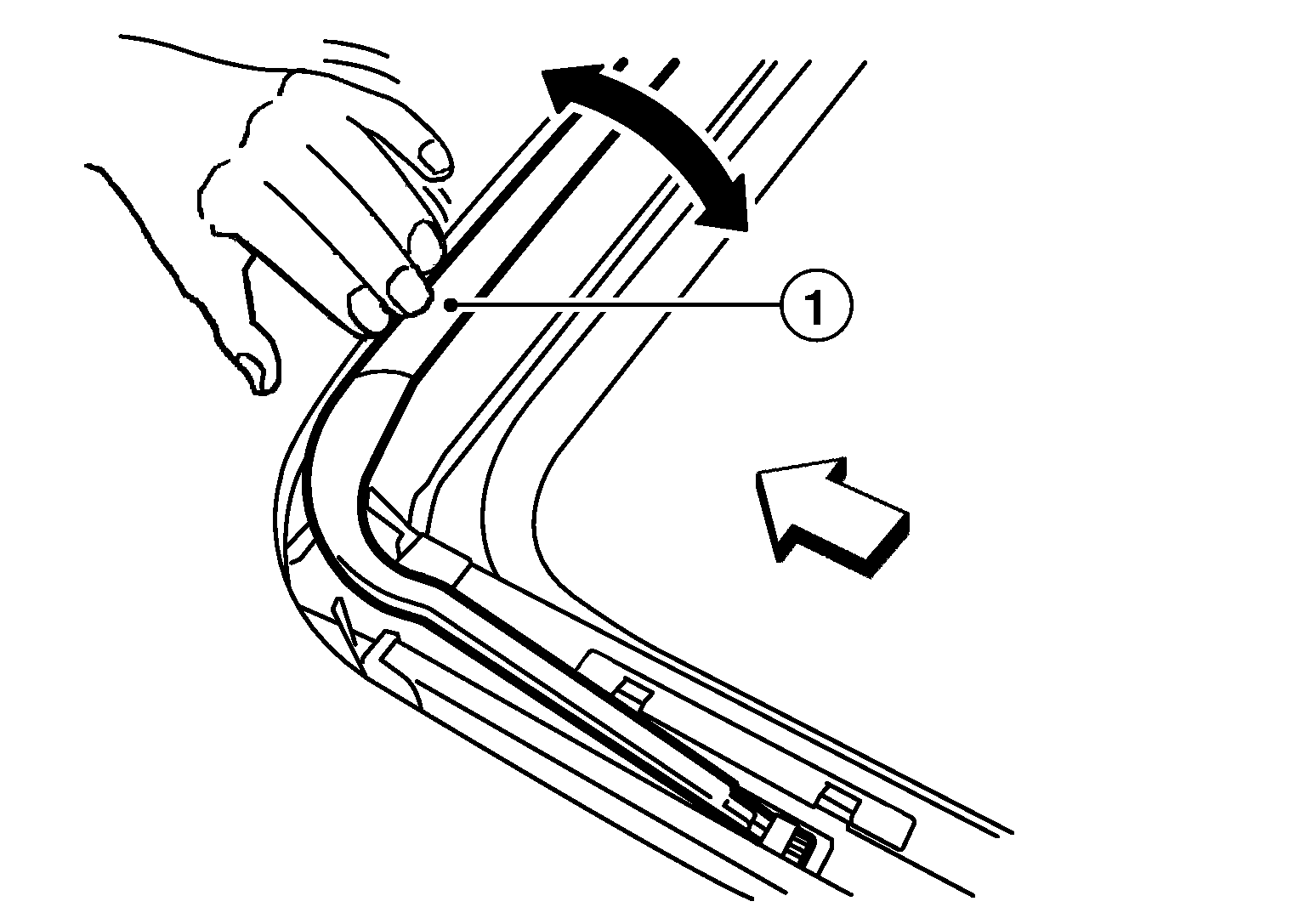

Check that the wind deflector (1) moves freely within the Monrovia unit assembly while manually pressing down and releasing. If a malfunction is detected, remove the Monrovia unit assembly and visually inspect. If damage is found, replace either wind deflector (1) or Monrovia unit assembly as required. Refer to REMOVAL AND INSTALLATION (WIND DEFLECTOR) or REMOVAL AND INSTALLATION (MONROVIA UNIT ASSEMBLY).

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
