Drain Hoses

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

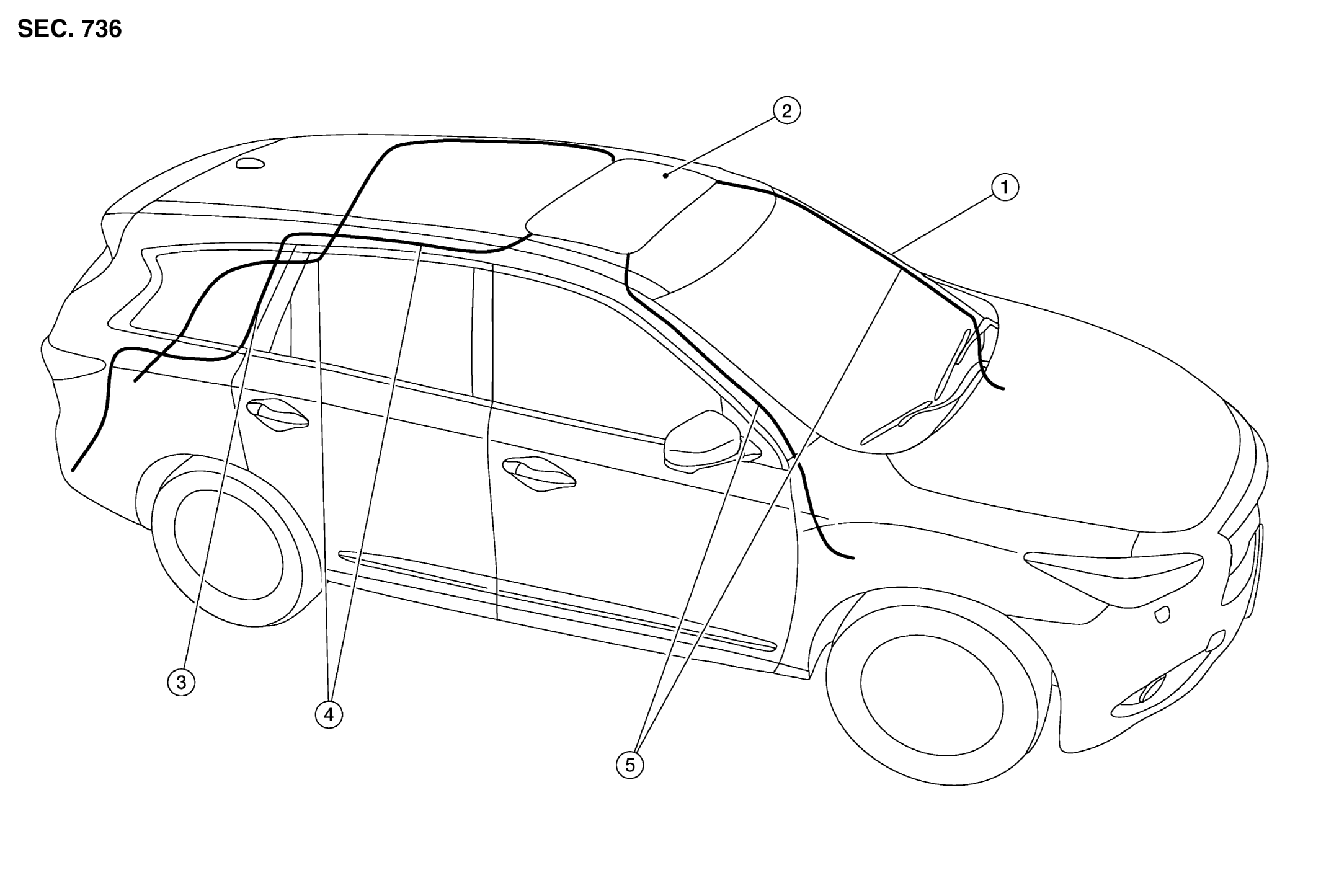

1.	Front pillar	2.	Monrovia unit assembly	3.	Rear pillar
4.	Drain hoses rear (LH/RH)	5.	Drain hoses front (LH/RH)

Remove the headlining. Refer to REMOVAL AND INSTALLATION .

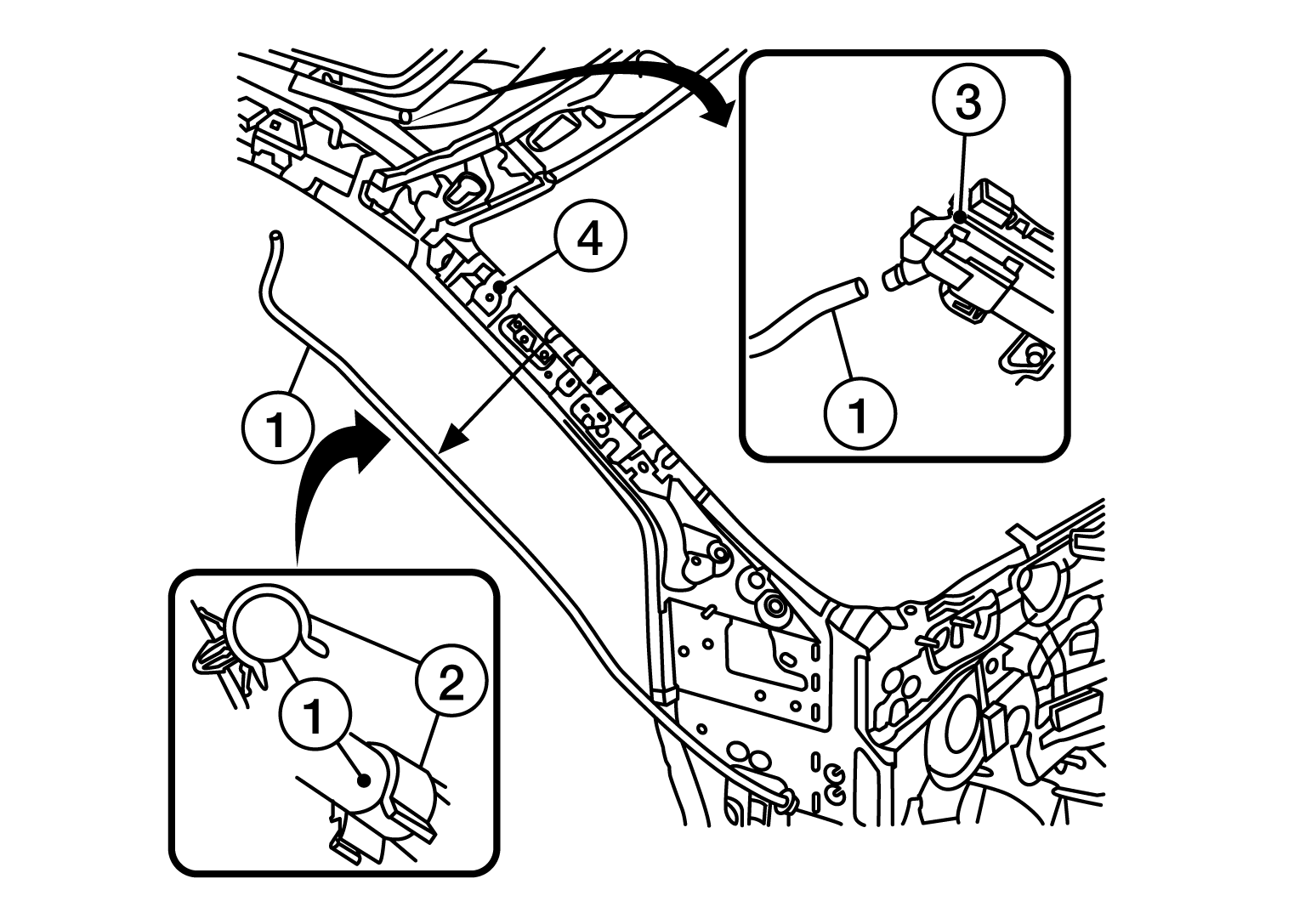

From the inside front pillar (4) visually check drain hoses (1) for:

Courtesy of NISSAN NORTH AMERICA, INC.
- Proper connection at Monrovia unit assembly (3) and drain hose (1).
- Damage, pinch, cracks, deterioration.
- Proper fastening (2) and routing on body panels.
Pour water through drain hoses to determine watertight performance.
If damaged or leaking portions in any drain hose is found, replace entire drain hose as necessary.

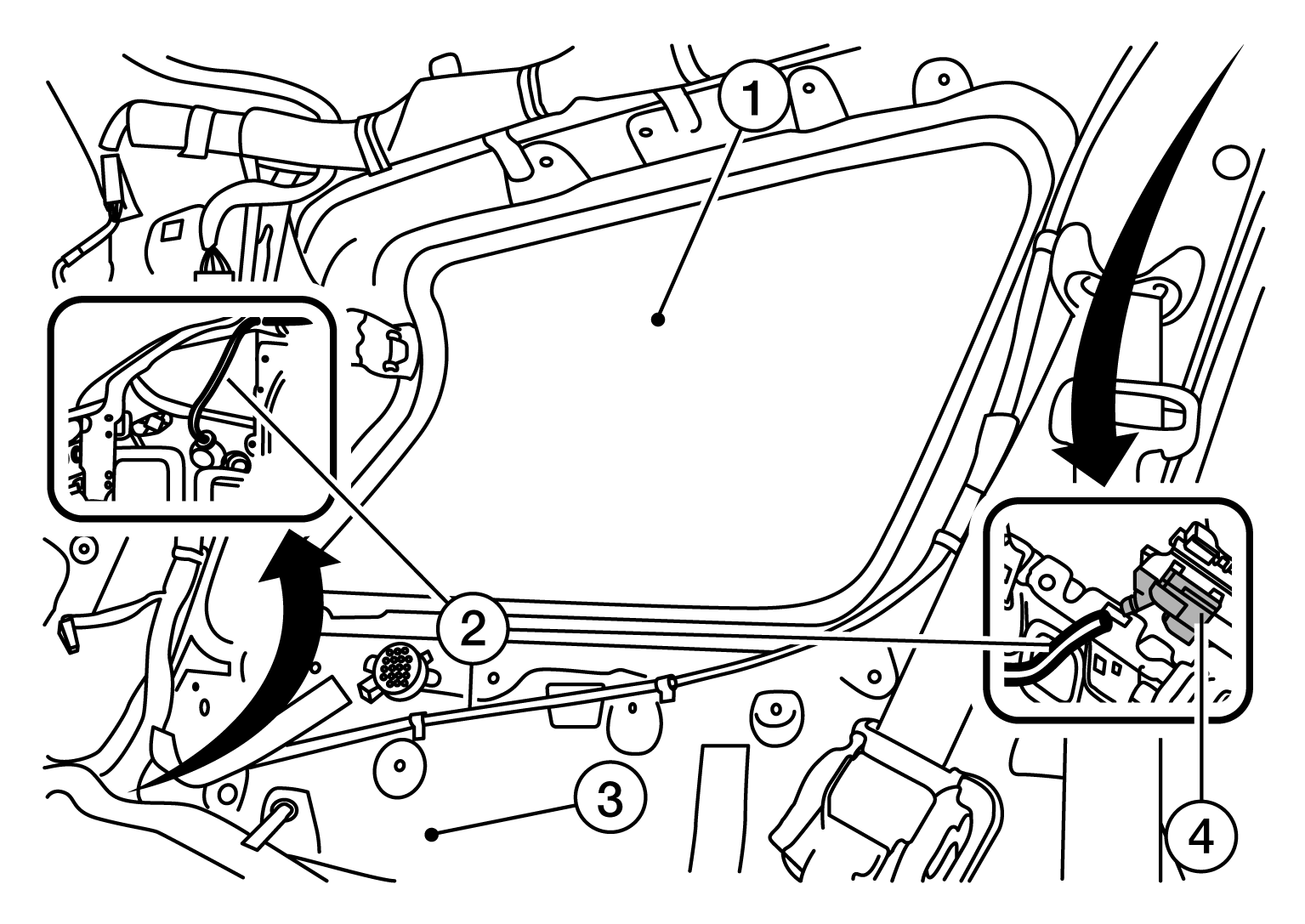

From the inside of the rear quarter panel (3) visually check drain hoses (2) for damage, pinching, cracks, or deterioration.

Courtesy of NISSAN NORTH AMERICA, INC.
Check for proper connection at Monrovia unit assembly (4) and drain hose (2) and for proper routing along the rear side glass (1) and the rear inner quarter panel (3).
