MONROVIA Unit Assembly: Inspection: Adjustment: Notes
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Always work with a helper.
- Handle glass lid with care to prevent damage.
NOTE:
- For easier and more accurate installation, always mark each point before removal.
- After any adjustment, check Monrovia operation and glass lid alignment.

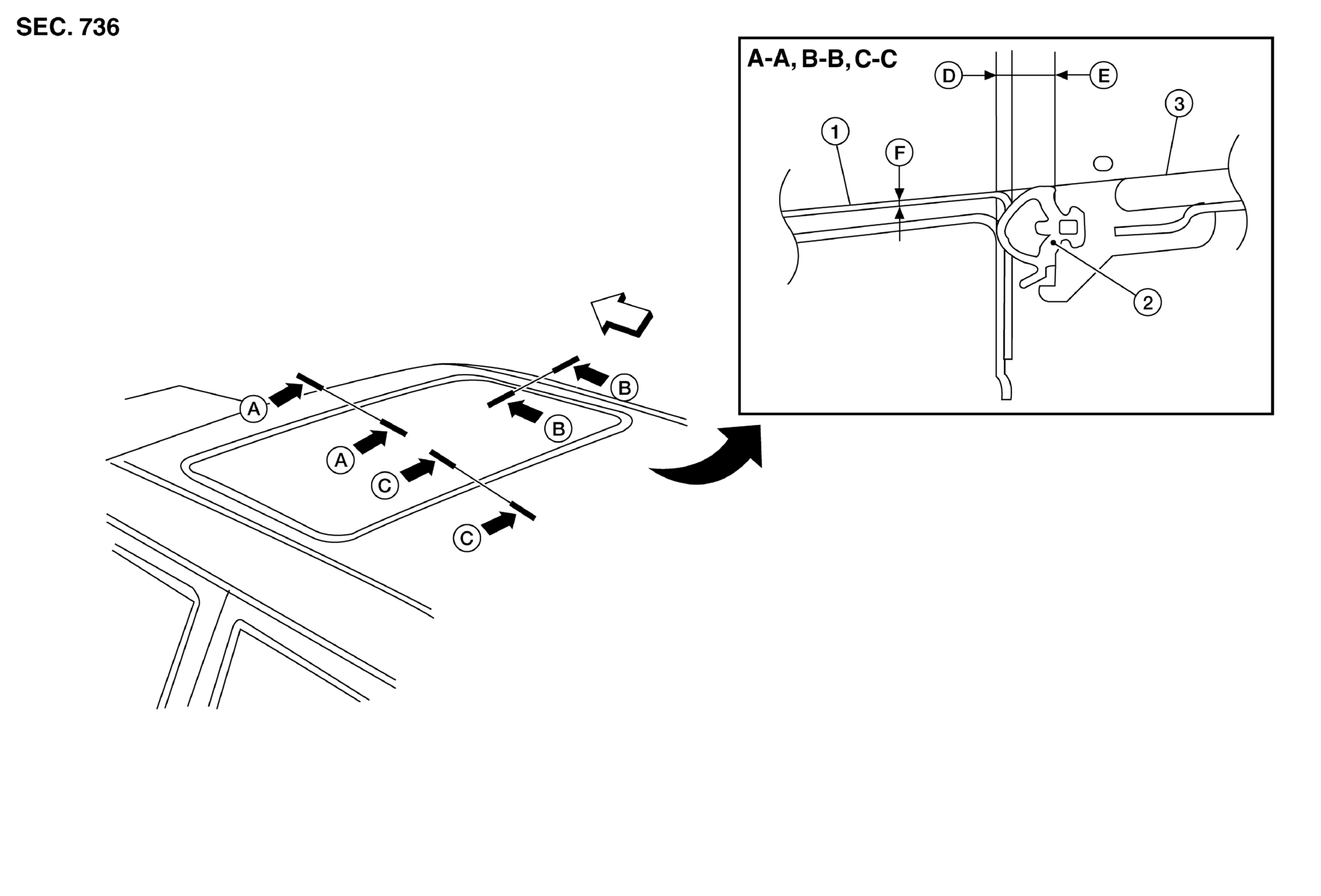

| 1. | Roof panel | 2. | Weatherstrip | 3. | Glass lid |
| Front |
Unit: mm (in)
| Portion | Gap | Surface height difference | |
|---|---|---|---|
| D | E | F | |
| A-A | 1.4 +- 0.9 (0.06 +- 0.04) | 5.8 +- (0.23) | -0.8 +- 1.5 (-0.03 +- 0.06) |
| B-B | 1.0 +- 0.9 (0.04 +- 0.04) | 5.8 +- (0.23) | -0.8 +- 1.5 (-0.03 +- 0.06) |
| C-C | 1.4 +- 0.9 (0.06 +- 0.04) | 5.8 +- (0.23) | -0.8 +- 1.5 (-0.03 +- 0.06) |
